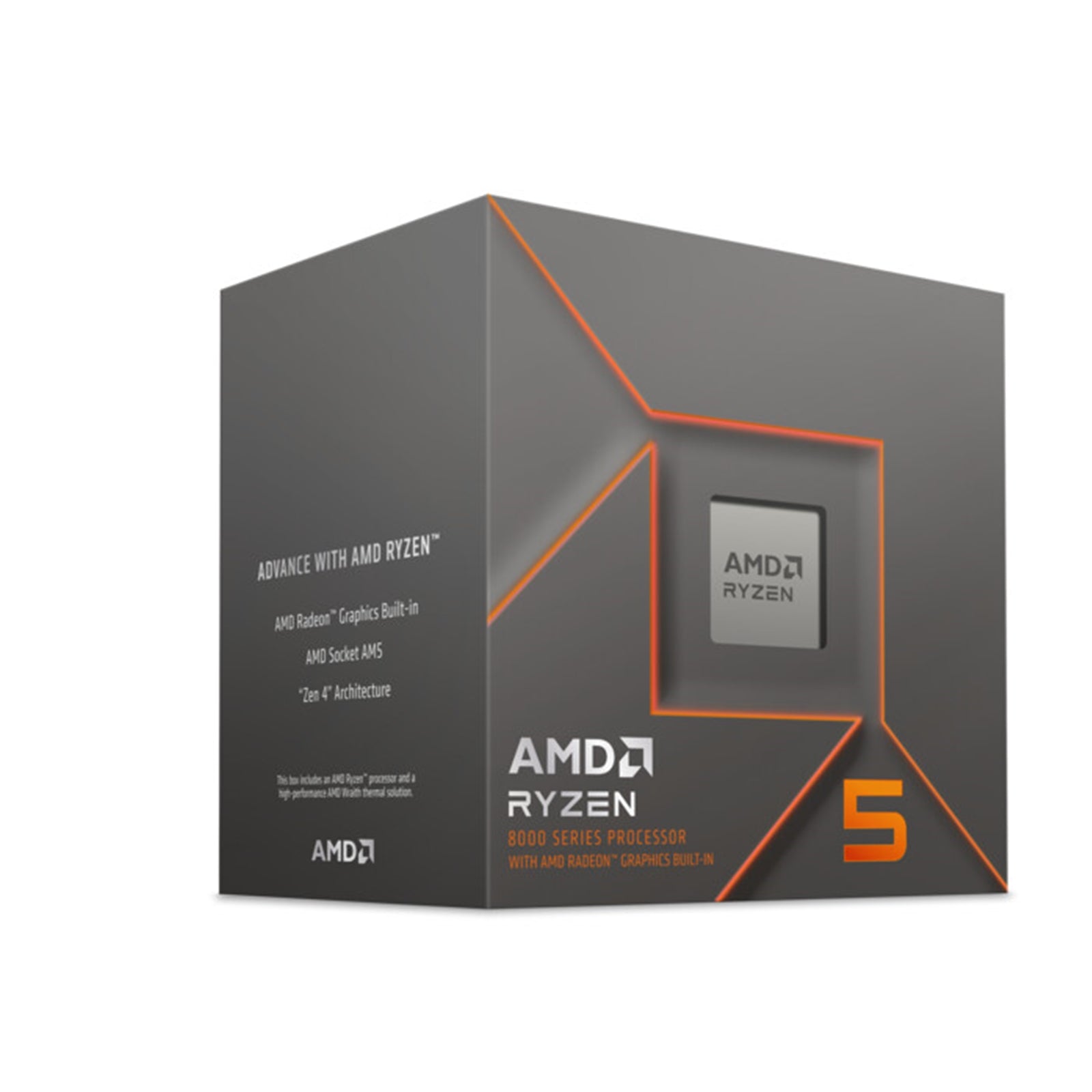

AMD Ryzen 5 8500G Desktop Processor with Integrated Graphics

The AMD Ryzen 5 8500G brings powerful desktop computing with its hybrid Zen 4 architecture, combining 2 Zen 4 cores and 4 Zen 4c cores for a total of 6 cores and 12 threads. Built on TSMC's 4nm FinFET process, this AM5 processor delivers a 3.5GHz base clock with Zen 4 cores reaching 4.1GHz base and boosting up to 5.0GHz for demanding workloads.

Integrated Radeon 740M Graphics

Featuring AMD Radeon 740M graphics with 4 compute units running at 2800MHz, the 8500G eliminates the need for a discrete graphics card in many scenarios. The integrated GPU supports DirectX 12, DisplayPort 2.1 with UHBR10, HDMI 2.1, and can drive up to 4 displays simultaneously. Maximum supported resolutions include 7680x4320 at 60Hz, 3840x2160 at 240Hz, and 1920x1080 at 600Hz. Hardware acceleration for H.264, H.265, VP9, and AV1 codecs ensures smooth video playback and encoding.

Memory and Connectivity

This processor supports DDR5 memory across 2 channels with speeds up to DDR5-5200 for dual-rank configurations, accommodating up to 256GB total system memory. The AM5 platform provides 14 native PCIe lanes (10 usable) with PCIe 4.0 support, 2 USB 4.0 ports at 40Gbps, 2 USB 3.2 Gen 2 ports at 10Gbps, and NVMe support with RAID0 and RAID1 configurations.

Performance and Overclocking

With 22MB total cache (6MB L2 + 16MB L3), the Ryzen 5 8500G handles multitasking efficiently at a 65W TDP with configurable TDP range of 45-65W. The processor is unlocked for overclocking and supports AMD EXPO memory overclocking, Precision Boost Overdrive, Curve Optimizer voltage offsets, and AMD Ryzen Master software for enthusiast tuning. AMD SmartAccess Memory and AMD FreeSync technologies enhance gaming performance.

Package Contents and Compatibility

The processor includes the Wraith Stealth cooler for thermal management with a maximum operating temperature of 95°C. Compatible with Windows 11, Windows 10, RHEL, and Ubuntu operating systems (64-bit), the AM5 socket ensures compatibility with current motherboard platforms and future upgrade paths.

Technical Specifications

General Specifications

Platform:
Desktop

Product Family:
AMD Ryzen Processors

Product Line:
AMD Ryzen 5 8000 G-Series Desktop Processors with Radeon Graphics

AMD PRO Technologies:
No

Consumer Use:
Yes

Regional Availability:
Global

Former Codename:
"Phoenix"

Architecture:
2 x "Zen4", 4 x "Zen4c"

# of CPU Cores:
6

Multithreading (SMT):
Yes

# of Threads:
12

Max. Boost Clock:
Up to 5.0GHz

Max Zen4c Clock:
Up to 3.7GHz

Base Clock:
3.5GHz

Zen4 Base Clock:
4.1GHz

Zen4c Base Clock:
3.2GHz

L2 Cache:
6MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 4nm FinFET

CPU Compute Die (CCD) Size:
137mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

AMD EXPO Memory Overclocking Technology:
Yes

Precision Boost Overdrive:
Yes

Curve Optimizer Voltage Offsets:
Yes

AMD Ryzen Master Support:
Yes

CPU Socket:
AM5

CPU Boost Technology:
Precision Boost 2

Instruction Set:
x86-64

Supported Extensions:
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax):
95°C

OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

Native USB 4 (40Gbps) Ports:
2

Native USB 3.2 Gen 2 (10Gbps) Ports:
2

Native USB 2.0 (480Mbps) Ports:
1

PCI Express Version:
PCIe 4.0

Native PCIe Lanes (Total/Usable):
14 / 10

NVMe Support:
Boot, RAID0, RAID1

System Memory Type:
DDR5

Memory Channels:
2

Max. Memory:
256GB

System Memory Subtype:
UDIMM

Max Memory Speed:
2x1R DDR5-5200
2x2R DDR5-5200
4X1R DDR5-3600
4x2R DDR5-3600

Graphics Capabilities

Integrated Graphics:
Yes

Graphics Model:
AMD Radeon 740M

Graphics Core Count:
4

Graphics Frequency:
2800 MHz

DirectX Version:
12

DisplayPort Version:
2.1

DisplayPort Extensions:
HDR Metadata
Adaptive-Sync
UHBR10

DisplayPort Max Refresh Rates (SDR):
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR):
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz

HDMI Version:
2.1

HDCP Version Supported:
2.3

USB Type-C DisplayPort Alternate Mode:
Yes

Multi-Monitor Support:
Yes

Max Displays:
4

AMD FreeSync:
Yes

Wireless Display:
Miracast

Max Video Encode Bandwidth (SDR):
1080p630 8bpc H.264
1440p373 8bpc H.264
2160p175 8bpc H.264
1080p630 8bpc H.265
1440p373 8bpc H.265
2160p175 8bpc H.265
4320p43 8bpc H.265
1080p864 8/10bpc AV1
1440p513 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1

Max Video Decode Bandwidth:
1080p60 8bpc MPEG2
1080p60 8bpc VC1
1080p786 8/10bpc VP9
2160p196 8/10bpc VP9
4320p49 8/10bpc VP9
1080p1200 8bpc H.264
2160p300 8bpc H.264
4320p75 8bpc H.264
1080p786 8/10bpc H.265
2160p196 8/10bpc H.265
4320p49 8/10bpc H.265
1080p960 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1

AMD SmartAccess Memory:
Yes

• Socket: AM5
• On-Chip Graphics: Yes
• Speed: 3.7GHz
• Core Quantity: 6
• Prefix: Ryzen 5
