AMD Ryzen 5 8500G Desktop Processor with Integrated Graphics

The AMD Ryzen 5 8500G delivers efficient desktop performance with integrated Radeon 740M graphics. Built on TSMC 4nm FinFET technology, this AM5 socket processor combines 6 cores and 12 threads with a 65W TDP design that actually consumes between 35W-42W under typical workloads.

Zen4 and Zen 4c Core Architecture

This processor uses a hybrid architecture combining standard Zen4 cores with Zen 4c cores. The Zen 4c cores are smaller and more efficient while maintaining full Zen4 performance capabilities. This design enables the 8500G to boost up to 5.0GHz from a 3.5GHz base clock while maintaining exceptional power efficiency for small form factor builds.

Radeon 740M Integrated Graphics

The built-in Radeon 740M graphics with RDNA3 architecture features 4 compute units running at 2800MHz. This enables 1080p gaming without a discrete graphics card. The processor supports DirectX 12 and remains compatible with add-in graphics cards for users who want additional performance.

Memory and Connectivity

Supporting DDR5 memory across 2 channels, the 8500G handles up to 256GB of UDIMM memory. Memory speeds reach DDR5-5200 with 2x1R or 2x2R configurations, and DDR5-3600 with 4-DIMM setups. The processor provides 14 total PCIe lanes with 10 usable for expansion.

Complete Package

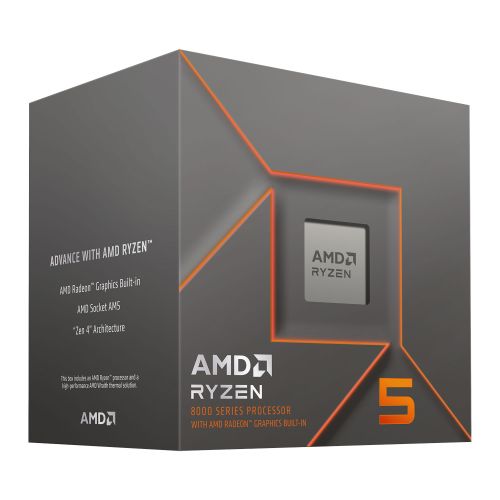

The retail package includes the AMD Wraith Stealth cooler, providing adequate cooling for the 65W TDP specification. The 22MB total cache (6MB L2 + 16MB L3) ensures responsive performance across applications. The AM5 socket platform supports future upgrades and AMD EXPO memory profiles for optimized performance.

Technical Specifications

• Socket: AM5
• Type: AMD Ryzen 5
• Clock Speed: 3.5 GHz
• Turbo Speed: Up to 5.0 GHz
• #Hide#Generation: Ryzen 8th gen
• Cores: 6 Core
• Core Size: TSMC 4nm FinFET
• Threads: 12
• Cache: L2 Cache: 6MB
  L3 Cache: 16MB
• TDP: Default TDP: 65W
• Graphics: Yes
• Graphics Details: AMD Radeon 740M
  Core Count: 4
  Frequency: 2800 MHz
  DirectX 12
• Memory: DDR5
  Memory Channels: 2
  Max. Memory: 256GB
  System Memory Subtype: UDIMM

  Max Speed:
  2x1R: DDR5-5200
  2x2R: DDR5-5200
  4X1R: DDR5-3600
  4x2R: DDR5-3600
• Max PCI Express Lanes: Total/Usable: 14 / 10
• Cooler: Yes
• Package Type: Retail
• Package Weight: 0.4550 kg
• Warranty: 3 Years
