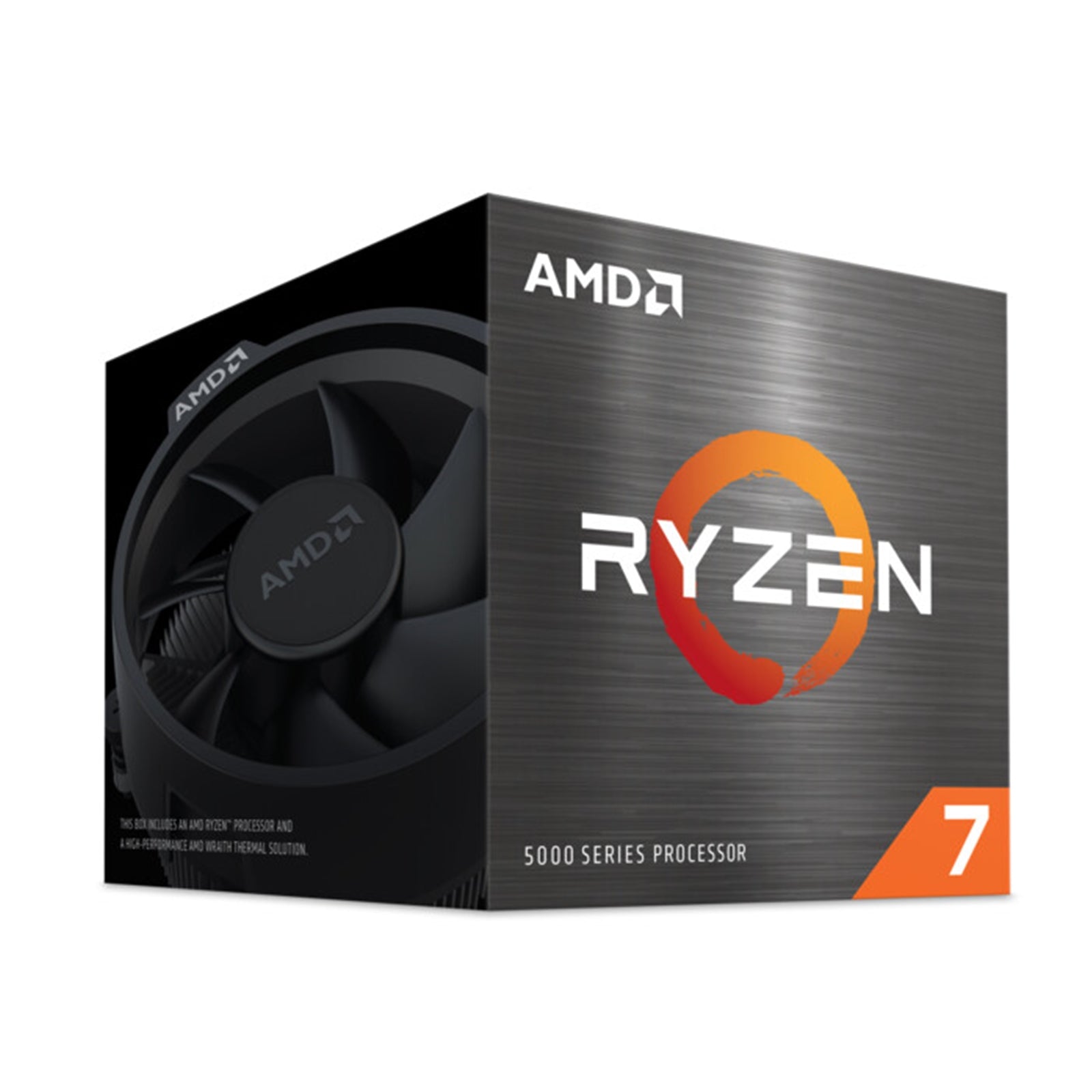

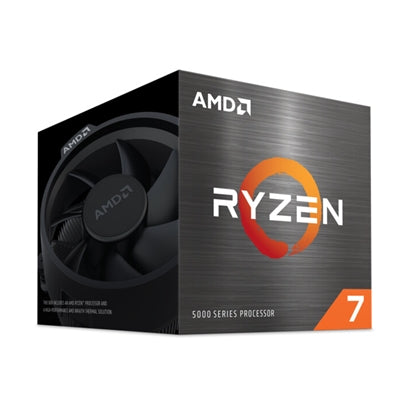

AMD Ryzen 7 5700 8-Core AM4 Processor

The AMD Ryzen 7 5700 delivers high-performance computing with its 8-core, 16-thread configuration built on Zen 3 architecture. Running at a 3.7GHz base clock with boost speeds up to 4.6GHz, this AM4 processor handles demanding workloads, content creation, and multitasking with efficiency.

Performance Specifications

Built on TSMC's 7nm FinFET process technology, the Ryzen 7 5700 features 20MB of total cache (512KB L1, 4MB L2, 16MB L3) for rapid data access. The processor maintains a 65W TDP with configurable TDP support from 45-65W, making it power-efficient without sacrificing performance. Precision Boost 2 technology automatically adjusts clock speeds based on workload demands.

Platform Compatibility

Designed for the AM4 socket, this processor supports a wide range of chipsets including X570, X470, X370, B550, B450, B350, and A520. It offers 24 native PCIe 3.0 lanes (20 usable) and dual-channel DDR4 memory support up to 3200MT/s. The processor includes 4 native USB 3.2 Gen 2 ports and 2 SATA ports for comprehensive connectivity.

Unlocked for Overclocking

The Ryzen 7 5700 comes fully unlocked, allowing enthusiasts to push performance beyond stock specifications. The included AMD Wraith Stealth cooler provides adequate thermal management with a maximum operating temperature of 95°C.

Technical Features

Supporting x86-64 instruction set with extensions including AES, AMD-V, AVX, AVX2, FMA3, SHA, and multiple SSE variants, the processor handles modern applications and workloads efficiently. Note that this processor requires a discrete graphics card as it does not include integrated graphics.

Specifications

General Specifications

Platform:
Boxed Processor

Market Segment:
Mainstream Desktop

Product Family:
AMD Ryzen Processors

Product Line:
AMD Ryzen 7 Desktop Processors

Consumer Use:
Yes

Regional Availability:
Global, China, NA, EMEA, APJ, LATAM

Former Codename:
"Cezanne"

Architecture:
"Zen 3"

# of CPU Cores:
8

# of Threads:
16

Max. Boost Clock:
Up to 4.6GHz

Base Clock:
3.7GHz

L1 Cache:
512KB

L2 Cache:
4MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 7nm FinFET

CPU Compute Die (CCD) Size:
180mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

CPU Socket:
AM4

Socket Count:
1P

Supporting Chipsets:
X570
X470
X370
B550
B450
B350
A520

CPU Boost Technology:
Precision Boost 2

Instruction Set:
x86-64

Supported Extensions:
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB):
AMD Wraith Stealth

Max. Operating Temperature (Tjmax):
95°C

Launch Date:
4/4/2022

*OS Support:
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C Support:
Yes

Native USB 4 (40Gbps) Ports:
0

Native USB 3.2 Gen 2 (10Gbps) Ports:
4

Native USB 3.2 Gen 1 (5Gbps) Ports:
0

Native USB 2.0 (480Mbps) Ports:
0

Native SATA Ports:
2

PCI Express Version:
PCIe 3.0

Native PCIe® Lanes (Total/Usable):
24 / 20

Additional Usable PCIe Lanes from Motherboard
AMD X570
16x Gen 3

AMD X470
2x Gen 3

AMD X470
8x Gen 2

NVMe Support:
Boot, RAID0, RAID1, RAID10

System Memory Type:
DDR4

Memory Channels:
2

System Memory Subtype:
UDIMM

System Memory Specification:
Up to 3200MT/s

Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support:
No

Graphics Capabilities

Integrated Graphics:
No

Graphics Model:
Discrete Graphics Card Required

• Socket: AM4
• On-Chip Graphics: No
• Speed: 3.7GHz
• Core Quantity: 8
• Prefix: Ryzen 7
