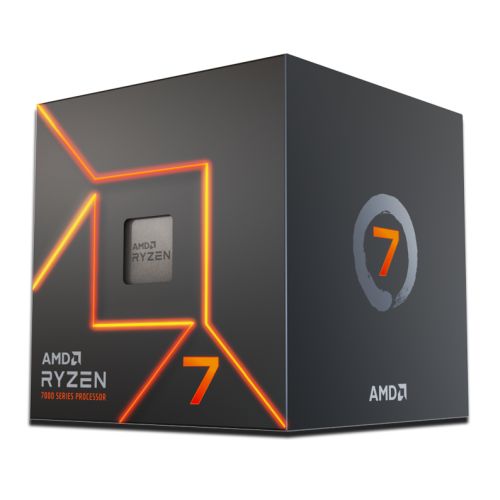

AMD Ryzen 7 7700 Processor with Wraith Prism RGB Cooler

The AMD Ryzen 7 7700 delivers exceptional gaming and productivity performance with 8 cores and 16 threads. Built on advanced 5nm process technology, this processor operates at 3.8GHz base frequency with boost speeds reaching up to 5.3GHz, providing the processing power needed for gaming, content creation, and multitasking.

Advanced AM5 Platform Performance

Designed for the AM5 socket, the Ryzen 7 7700 supports cutting-edge DDR5 memory and PCIe 5.0 connectivity. With AMD EXPO technology, memory overclocking is simplified to one-touch configuration. The processor features 40MB of total cache (512KB L1, 8MB L2, 32MB L3) for rapid data access and improved application responsiveness.

Efficient 65W Design with Premium Cooling

Operating at just 65W TDP, the Ryzen 7 7700 maintains excellent thermal efficiency while delivering high performance. Included with this processor is the AMD Wraith Prism cooler featuring RGB LED lighting, providing both effective cooling and customizable aesthetics for your build without requiring an additional cooler purchase.

Integrated Radeon Graphics

The processor includes AMD Radeon Graphics with 2 GPU cores running at up to 2200MHz, enabling display output without a discrete graphics card. This integrated graphics solution supports troubleshooting, basic computing tasks, and provides flexibility for system configurations.

Memory and Connectivity

The Ryzen 7 7700 supports DDR5 memory configurations up to DDR5-5200 speeds with dual-channel architecture. PCIe 5.0 support provides maximum bandwidth for next-generation graphics cards and NVMe storage devices. Depending on your motherboard chipset (X670E, X670, B650E, or B650), additional PCIe Gen4 lanes are available for expanded connectivity.

Platform Compatibility

Compatible with AMD 600-series motherboards including X670E, X670, B650E, and B650 chipsets, this processor offers flexibility in system configuration. The AM5 platform provides a foundation for future upgrades and supports the latest technologies for years to come.

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 7
• Clock Speed: 3.8GHz
• Turbo Speed: Up to 5.3GHz
• #Hide#Generation: Ryzen 7th gen
• Cores: 8 Core
• Core Size: "CPU Cores: TSMC 5nm FinFET
  I/O Die; TSMC 6nm FinFET"
• Threads: 16
• Cache: L1 Cache: 512KB
  L2 Cache: 8MB
  L3 Cache: 32MB
• TDP: Default TDP: 65W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Core Count: 2
  Frequency: 2200 MHz
  GPU Base: 400 MHz
• Memory: DDR5
  Memory Channels: 2
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R: DDR5-5200
  2x2R: DDR5-5200
  4x1R: DDR5-3600
  4x2R: DDR5-3600
• Max PCI Express Lanes: 28/24 (Total/Usable)

  Additional Usable PCIe Lanes from Motherboard:
  AMD X670E: 12x Gen4
  AMD X670: 12x Gen4
  AMD B650E: 8x Gen4
  AMD B650: 8x Gen4
• Cooler: Yes
• Special Features: Wraith Prism RGB Cooler
  AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.7600 kg
• Warranty: 3 Years
