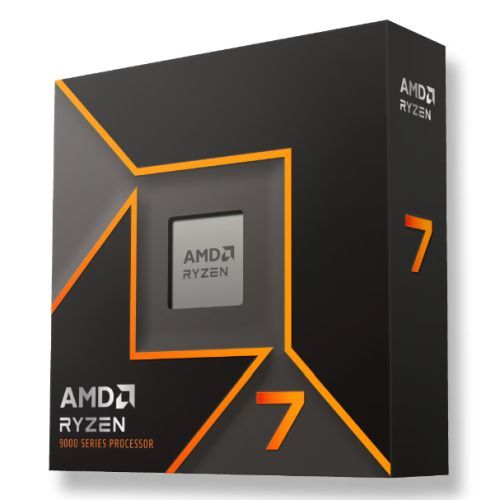

AMD Ryzen 7 9700X Processor - Zen 5 Architecture

The AMD Ryzen 7 9700X delivers high-performance computing with 8 cores and 16 threads built on the advanced 4nm Zen 5 architecture. Running at a base clock of 3.8GHz and boosting up to 5.5GHz, this processor handles demanding workloads from gaming to content creation with a 65W TDP for efficient power consumption.

Next-Level Gaming Performance

Built for serious gamers, the Ryzen 7 9700X provides the raw processing power needed for high-frame-rate gaming. The 8-core, 16-thread configuration ensures smooth gameplay while streaming or running background applications. With 40MB of total cache (640KB L1, 8MB L2, 32MB L3), the processor maintains quick access to frequently used data for reduced latency.

AM5 Platform Features

The AM5 socket brings cutting-edge connectivity with DDR5 memory support up to 192GB and PCIe 5.0 compatibility. The processor supports dual-channel memory configurations at speeds up to DDR5-5600 for 1R and 2R configurations. AMD EXPO technology enables one-touch memory overclocking for enhanced performance. The platform offers 28 total PCIe lanes (24 usable) with additional lanes available depending on your motherboard chipset.

Integrated Radeon Graphics

The Ryzen 7 9700X includes AMD Radeon Graphics with 2 graphics cores running at 2200MHz. This integrated GPU handles display output and basic graphics tasks, with USB Type-C DisplayPort Alternate Mode support for modern display connectivity. For maximum gaming performance, pair with AMD Radeon RX 7000 Series graphics cards.

AI-Ready Architecture

Built-in AI acceleration capabilities enhance productivity and content creation workflows. The Zen 5 architecture includes AI optimizations that benefit from modern software applications designed to leverage hardware acceleration.

Future-Proof Upgradability

The AM5 platform provides years of upgrade potential with socket compatibility across multiple processor generations. Compatible with X870E, X870, X670E, X670, B650E, and B650 chipsets, offering flexibility in motherboard selection based on your feature requirements.

Package Contents

This retail package does not include a heatsink or fan. A compatible AM5 CPU cooler is required for installation. The processor comes with a 3-year manufacturer warranty.

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 7
• Clock Speed: 3.8 GHz
• Turbo Speed: 5.5 GHz
• #Hide#Generation: Ryzen 9th gen
• Cores: 8 Core
• Core Size: CPU Cores: TSMC 4nm FinFET
  I/O Die: SMC 6nm FinFET
• Threads: 16
• Cache: L1 Cache: 640 KB
  L2 Cache: 8 MB
  L3 Cache: 32 MB
• TDP: Default TDP: 65W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Cores: 2
  Frequency: 2200 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: Memory Channels: 2
  Max. Memory: 192GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R DDR5-5600
  2x2R DDR5-5600
  4x1R DDR5-3600
  4x2R DDR5-3600
• Max PCI Express Lanes: 28/24 (Total/Usable)

  Additional Usable PCIe Lanes from Motherboard:
  X870E: 8x Gen4
  X870: 4x Gen4
  X670E: 12x Gen4
  X670: 12x Gen4
  B650E: 8x Gen4
  B650: 8x Gen4
• Cooler: No
• Special Features: AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.0940 kg
• Warranty: 3 Years
