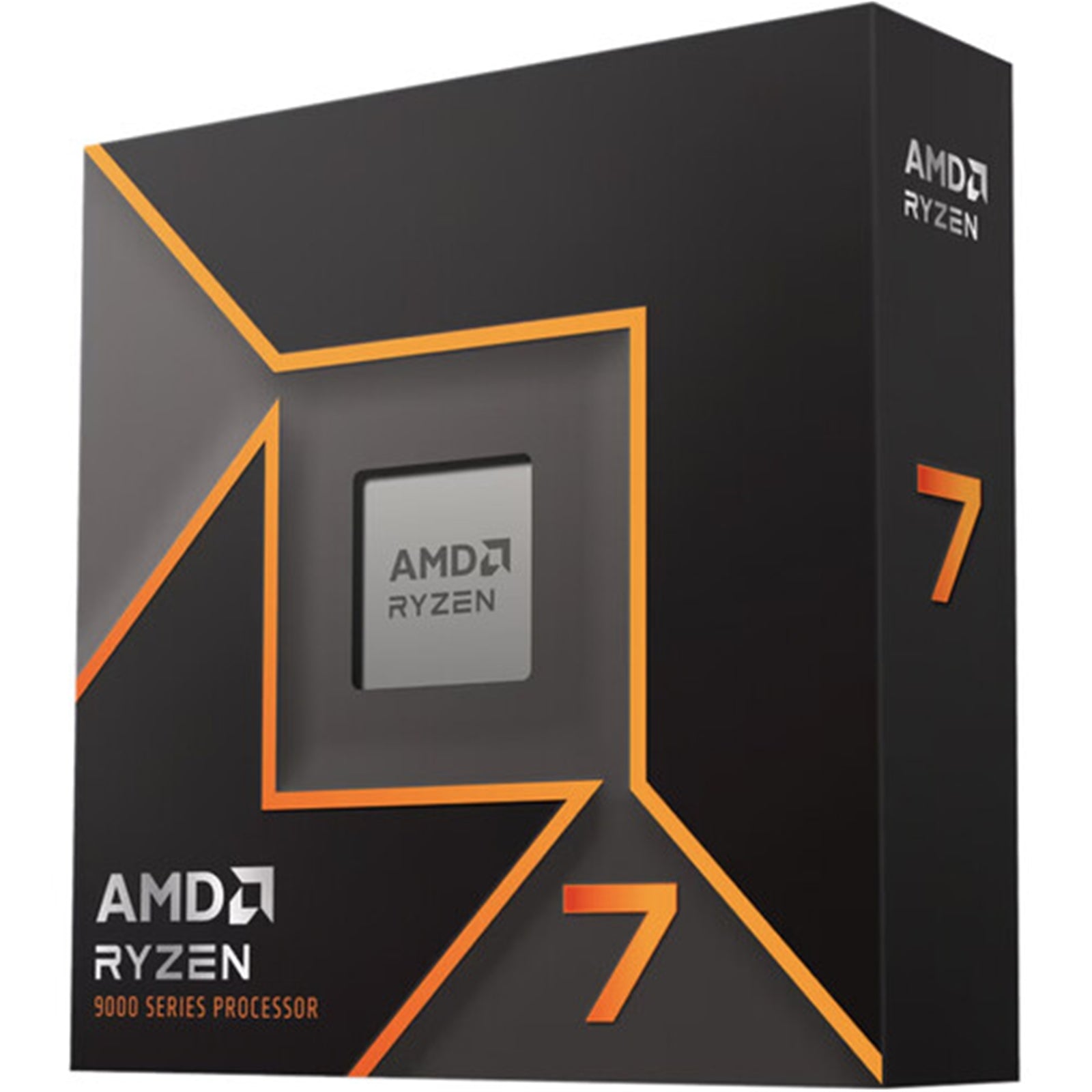

AMD Ryzen 7 9700X 8-Core AM5 Processor

The AMD Ryzen 7 9700X delivers high-performance computing with 8 cores and 16 threads built on the advanced Zen 5 architecture. This 4nm processor features a 3.8 GHz base clock that boosts up to 5.5 GHz, providing the processing power needed for demanding applications, content creation, and gaming.

Performance Specifications

This Socket AM5 processor combines 8MB L2 cache with 32MB L3 cache for rapid data access and smooth multitasking. The unlocked multiplier allows enthusiasts to push performance further through overclocking. With support for DDR5-5600 ECC memory and PCIe 5.0 technology across 28 lanes, the 9700X provides a future-proof foundation for high-performance systems.

AMD's Precision Boost 2 technology automatically monitors system temperatures and power consumption to dynamically adjust clock speeds, optimizing performance in real-time. Precision Boost Overdrive extends these capabilities further, leveraging compatible motherboard designs to achieve higher sustained boost frequencies.

Integrated Graphics and Connectivity

The integrated AMD Radeon Graphics with a 2200 MHz base clock provides display output through HDMI and DisplayPort connections, eliminating the need for a discrete graphics card for basic computing tasks and troubleshooting.

Thermal Design and Power Efficiency

With a 65W TDP, the Ryzen 7 9700X operates efficiently while maintaining high performance. The processor supports temperatures up to 95°C and includes thermal monitoring technologies. Note that this processor does not include a cooling solution, requiring a separate CPU cooler for operation.

AMD Ryzen Master Utility

The included Ryzen Master software provides comprehensive control over CPU, GPU, and memory configurations. Store multiple custom profiles, monitor real-time system metrics including per-core clock rates and temperatures, and adjust performance parameters to optimize for specific workloads or applications.

Technical Highlights

• 8 cores and 16 threads for parallel processing
• 3.8 GHz base / 5.5 GHz boost clock speeds
• 32MB L3 cache + 8MB L2 cache
• DDR5-5600 memory support up to 192GB
• PCIe 5.0 x16 support with 28 total lanes
• AMD-V virtualization technology
• AES encryption support
• AVX, AVX 2.0, AVX-512 instruction sets
• Dual-channel memory architecture
• 4nm manufacturing process

The Ryzen 7 9700X is designed for users who require substantial processing power for productivity applications, content creation workflows, and gaming, all within a power-efficient 65W envelope. Backed by a 3-year manufacturer warranty.

AMD Ryzen 7 9700X 3.8 GHz 8-Core AM5 Processor

Key Features
8 Cores & 16 Threads
3.8 GHz Base Clock
5.5 GHz Max Boost Clock
Socket AM5
8MB L2 & 32MB L3 Cache
DDR5-5600 ECC Memory
Integrated AMD Radeon Graphics
Unlocked Processor
Supports PCIe 5.0 x16
Zen 5 Architecture

Take your computing experiences to a new level with the AMD Ryzen 7 9700X 3.8 GHz 8-Core AM5 Processor. Featuring 8 cores and 16 threads with 32MB of L3 Cache, this desktop processor quickly loads and multitasks demanding applications.

Designed for socket AM5 motherboards using the powerful Zen 5 4nm architecture, this processor offers exceptional performance. With a base clock speed of 3.8 GHz and a max boost clock speed of 5.5 GHz, the Ryzen 7 9700X delivers the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 5 technology and 5600 MHz ECC DDR5 RAM with compatible motherboards.

This processor has a 65W TDP (Thermal Design Power) and does not include a cooling solution. Integrated Radeon Graphics delivers rich visuals.

Precision Boost 2
AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.

AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR5 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.

System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.

Specifications

General

CPU Model
AMD Ryzen 7 9700X

CPU Socket
AM5

Manufacturing Process
4 nm

Maximum CPU Configuration
1S

Maximum Number of PCIe Lanes
28 (Revision 5.0)

Unlocked
Yes

Performance

Number of Cores
8

Number of Threads
16

Base Clock Speed
3.8 GHz

Maximum Boost Speed
5.5 GHz

L3 Cache
32 MB

Memory Support

Maximum Capacity
192 GB

Memory Support
DDR5 Up to 5600 MHz

ECC Memory
Yes

Channel Architecture
Dual Channel

Power

Thermal Design Power (TDP, Max)
65 W

Included Thermal Solution
No

Maximum Temperature
203°F / 95°C

Thermal Monitoring Technologies
Yes

Technology

AES Support
Yes

Extension
AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1/4.2

Instruction Set
64-Bit

Virtualization
Yes: AMD-V

Performance Technologies
Precision Boost 2

Integrated Graphics

Integrated Graphics
AMD Radeon

Output Support
DisplayPort, HDMI

Base Clock Speed
2200 MHz

Warranty
Limited 3-Year Manufacturer Warranty

• Socket: AM5
• On-Chip Graphics: Yes
• Speed: 3.8GHz
• Core Quantity: 8
• Prefix: Ryzen 7
