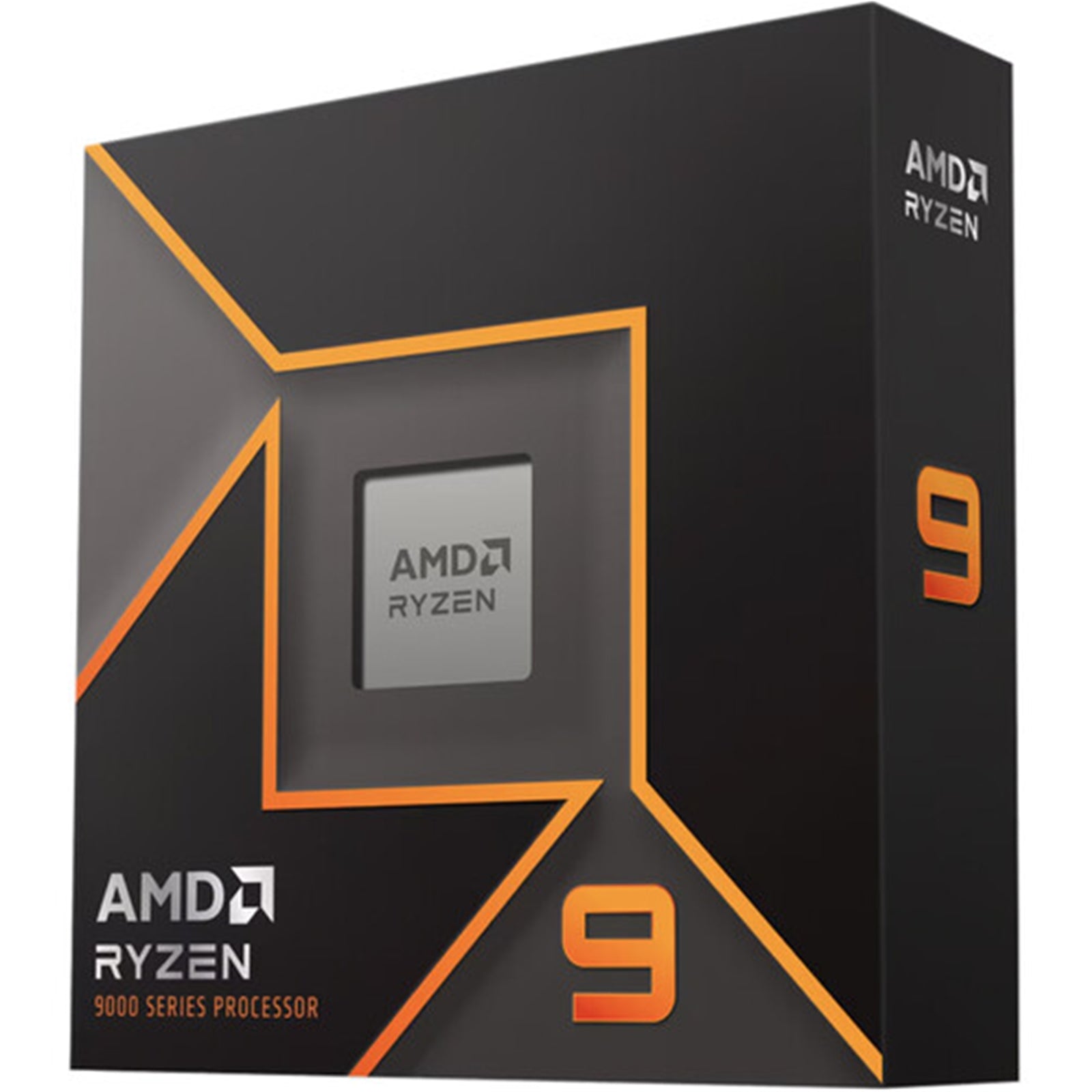

AMD Ryzen 9 9950X 16-Core AM5 Processor

The AMD Ryzen 9 9950X delivers flagship-level performance for demanding workloads, content creation, and high-end gaming. Built on the advanced Zen 5 architecture with a 4nm manufacturing process, this processor combines 16 cores and 32 threads with clock speeds ranging from 4.3 GHz base to 5.7 GHz boost.

Performance Specifications

This AM5 processor features 64MB of L3 cache and 16MB of L2 cache, providing the bandwidth needed for multi-threaded applications. The unlocked multiplier allows enthusiasts to push performance further through overclocking. With support for DDR5-5600 ECC memory and PCIe 5.0 technology across 28 lanes, the 9950X is ready for next-generation storage and graphics cards.

Advanced Technologies

Precision Boost 2 technology automatically adjusts clock speeds based on system conditions, optimizing performance while managing power consumption. Precision Boost Overdrive takes this further by leveraging your motherboard's capabilities to achieve higher sustained boost clocks. The AMD Ryzen Master Utility provides real-time monitoring and custom performance profiles for CPU, GPU, and memory configurations.

Integrated Graphics and Connectivity

Integrated AMD Radeon graphics with a 2200 MHz base clock enables DisplayPort and HDMI output without a dedicated graphics card. This makes the processor suitable for troubleshooting, light productivity work, or building systems where discrete graphics will be added later.

Thermal and Power Requirements

With a 170W TDP and maximum operating temperature of 95°C (203°F), this processor requires a robust cooling solution (not included). The thermal monitoring technologies help maintain optimal operating conditions under load. The processor supports dual-channel memory configurations up to 192GB capacity.

Platform Compatibility

Designed for Socket AM5 motherboards, the Ryzen 9 9950X supports modern instruction sets including AVX-512, AES encryption, and AMD-V virtualization. The 64-bit architecture with support for advanced extensions makes it suitable for professional applications, virtual machines, and compute-intensive tasks.

Key Features
16 Cores & 32 Threads
4.3 GHz Base Clock
5.7 GHz Max Boost Clock
Socket AM5
16MB L2 & 64MB L3 Cache
DDR5-5600 ECC Memory
Integrated AMD Radeon Graphics
Unlocked Processor
Supports PCIe 5.0 x16
Zen 5 Architecture

Specifications

General

CPU Model
AMD Ryzen 9 9950X

CPU Socket
AM5

Manufacturing Process
4 nm

Maximum CPU Configuration
1S

Maximum Number of PCIe Lanes
28 (Revision 5.0)

Unlocked
Yes

Performance

Number of Cores
16

Number of Threads
32

Base Clock Speed
4.3 GHz

Maximum Boost Speed
5.7 GHz

L3 Cache
64 MB

Memory Support

Maximum Capacity
192 GB

Memory Support
DDR5 Up to 5600 MHz

ECC Memory
Yes

Channel Architecture
Dual Channel

Power

Thermal Design Power (TDP, Max)
170 W

Included Thermal Solution
No

Maximum Temperature
203°F / 95°C

Thermal Monitoring Technologies
Yes

Technology

AES Support
Yes

Extension
AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1/4.2

Instruction Set
64-Bit

Virtualization
Yes: AMD-V

Performance Technologies
Precision Boost 2

Integrated Graphics
AMD Radeon

Output Support
DisplayPort, HDMI

Base Clock Speed
2200 MHz

Warranty
Limited 3-Year Manufacturer Warranty

• Socket: AM5
• On-Chip Graphics: Yes
• Speed: 4.3GHz
• Core Quantity: 16
• Prefix: Ryzen 9
