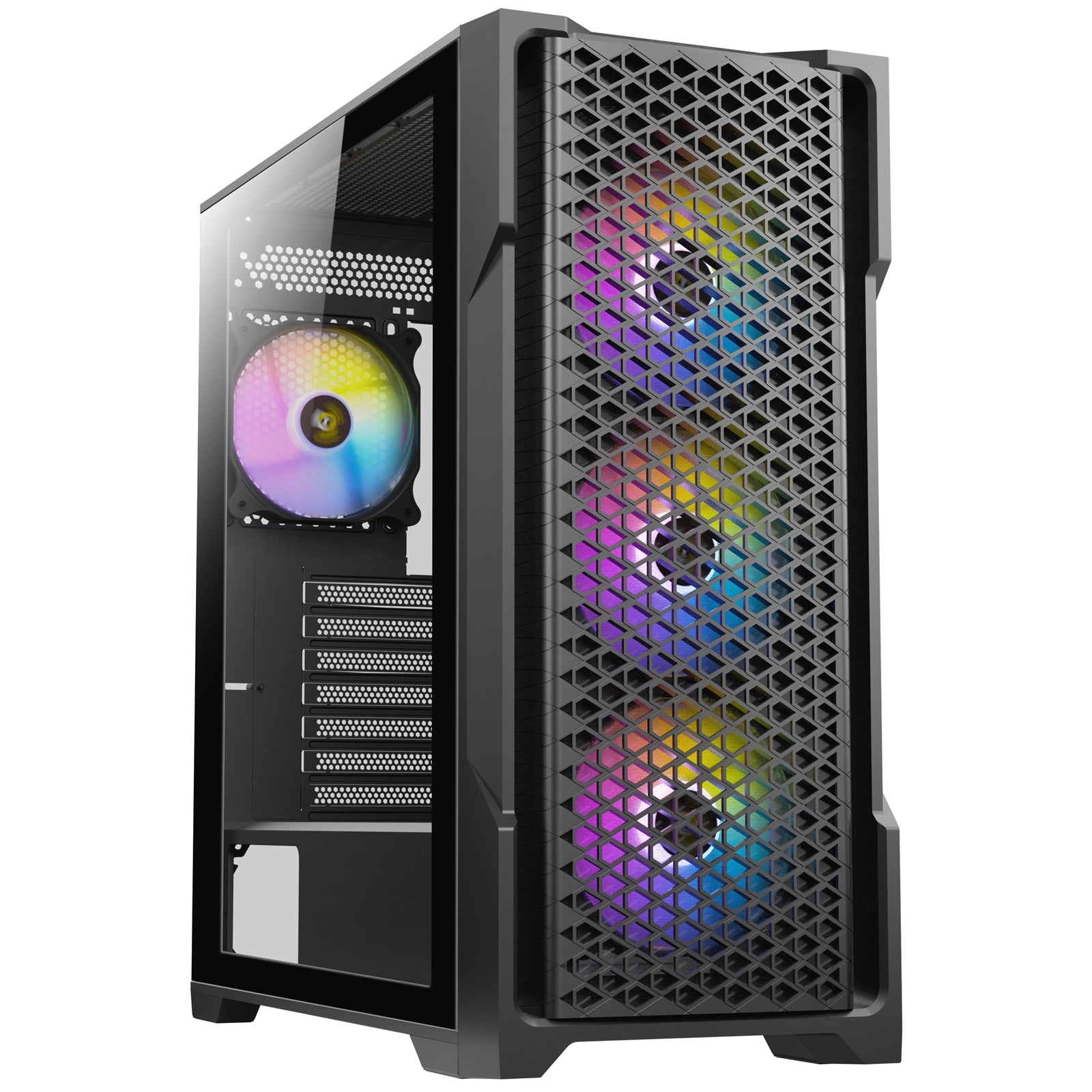

ANTEC AX90 Mid-Tower Gaming Case

The ANTEC AX90 combines distinctive mesh design with exceptional cooling capabilities. This mid-tower case features a diamond-shaped mesh front panel that delivers maximum airflow while filtering dust, and a 4mm tempered glass side panel to showcase your build.

Pre-Installed ARGB Cooling System

Equipped with 4 x 120mm addressable RGB fans out of the box - 3 front-mounted and 1 rear-mounted. The included control hub synchronizes with your motherboard or allows manual ARGB mode switching via the dedicated control button. The spacious interior supports up to 11 x 120mm fans simultaneously for extreme cooling configurations.

Extensive Radiator Compatibility

The AX90 accommodates radiators up to 360mm in both front and top positions. Side-mounting supports 240mm radiators or dual 120mm fans. Front radiator support includes 120/140/240/280/360mm sizes, with identical top mounting options. Side mounting handles 120/240mm, and rear mounting supports 120mm radiators.

Flexible Component Clearance

Designed for high-performance builds with clearance for GPUs up to 385mm, CPU coolers up to 160mm height, and PSUs up to 220mm (with HDD installed) or 410mm (without HDD). The case supports ATX, Micro ATX, and Mini-ITX motherboards with 7 expansion slots.

Storage and Cable Management

Includes 3 combined 3.5"/2.5" drive bays plus 2 dedicated 2.5" bays for SSDs. The 23mm cable management space behind the motherboard tray ensures clean builds. Comprehensive dust filtration on front, top, bottom, and right side panels protects components.

I/O Panel Connectivity

Front panel features 1 x USB 3.0, 2 x USB 2.0 ports, MIC/HD-AUDIO jacks, power and reset buttons, plus the LED control button for ARGB customization.

Technical Specifications

Form Factor: Mid Tower
Materials: Steel, Plastic
Mainboard Support: ATX, Micro ATX, Mini-ITX
Side Panel: 4mm Tempered Glass
Dimensions (D x W x H): 473 x 210 x 486mm
Weight: Net 6.77 Kgs / Gross 7.93 Kgs

I/O Panel: Power, Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO

Drive Bays: 3.5"/2.5": 2/1, 2.5": 2
Expansion Slots: 7

Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Power Supply Shroud: 2 x 120mm
Side: 2 x 120mm
Rear: 1 x 120mm

Included Fans:
Front: 3 x 120mm ARGB fans
Rear: 1 x 120mm ARGB fan

Radiator Support:
Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Side: 120/240mm
Rear: 120mm

Clearance:
Max GPU Length: ≤ 385mm
Max CPU Cooler Height: ≤ 160mm
Max PSU Length: ≤ 220mm (with HDD) / ≤ 410mm (without HDD)

Dust Filters: Front, Top, Bottom, Right Hand Side

• Form Factor: Mid Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: Addressable RGB
• USB 3.0: 1
• Side Panel: Tempered Glass
