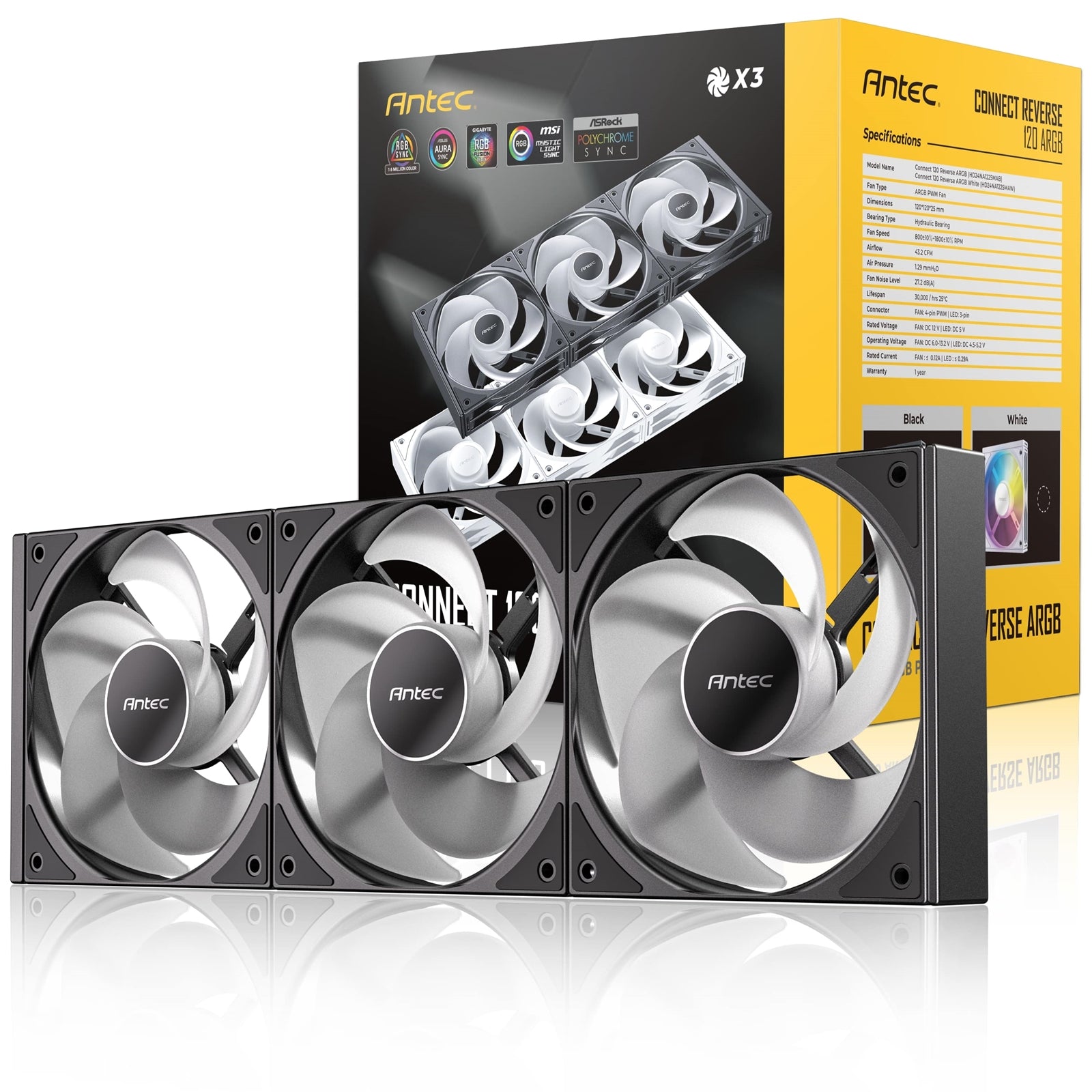

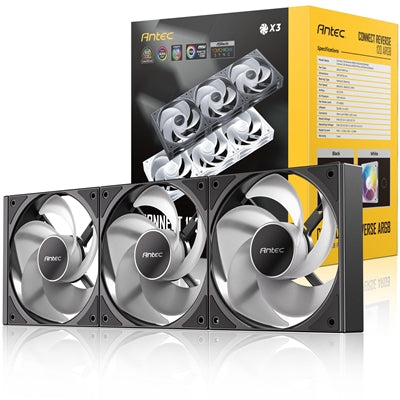

Antec Connect 120 ARGB Reverse 3-Pack PWM Fans

The Antec Connect 120 ARGB Reverse fans deliver efficient cooling with simplified installation. This 3-pack features an intuitive interlocking system that streamlines mounting and cable management for PC builders.

Daisy Chain Design for Simplified Installation

The Connect 120 Reverse ARGB features an innovative interlocking system that connects fans internally. Mount multiple fans using fewer screws and cables compared to traditional setups. The daisy chain design reduces cable clutter while maintaining full PWM and ARGB functionality across all three fans.

PWM Performance Specifications

Each 120mm fan operates at 800-1800 RPM with hydraulic bearing technology rated for 30,000 hours. The fans deliver 43.2 CFM airflow with 1.29 mmH2O static pressure at 27.2 dB(A) noise levels. PWM control allows dynamic speed adjustment based on system temperature requirements.

Reverse Blade Airflow Design

The reverse fan blade design provides smoother air intake with a cleaner aesthetic. This configuration optimizes airflow direction for intake configurations while maintaining the ARGB lighting visibility. The 120 x 120 x 25mm dimensions fit standard case mounting points.

Vibration Dampening Technology

Eight enlarged anti-vibration pads per fan effectively reduce vibration transfer and operational noise. These rubber dampening pads absorb resonance between the fan frame and case mounting points, maintaining quiet operation even at higher RPM ranges.

ARGB Lighting Synchronization

The extendable 3-pin daisy-chain ARGB connector integrates with motherboard RGB headers for synchronized lighting effects. Connect all three fans to a single motherboard header using the included connectors. Compatible with major motherboard RGB software ecosystems.

Technical Specifications

Model: C120R ARGB 3PK
Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
Fan Speed: 800-1800 RPM ± 10%
Airflow: 43.2 CFM
Air Pressure: 1.29 mmH2O
Noise Level: 27.2 dB(A)
Lifespan: 30,000 hours at 25°C
Connectors: 4-pin PWM, 3-pin ARGB
Voltage: 12V DC (Fan), 5V DC (LED)
Current: 0.12A ± 10% (Fan), 0.29A ± 10% (LED)
Warranty: 1 Year

Installation Notes

Position the cable outlet over the male connector when installing fan covers. The interlocking system allows sequential mounting with minimal hardware. Connect the 4-pin PWM headers to motherboard fan headers and 3-pin ARGB connectors to compatible RGB headers.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1800RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
