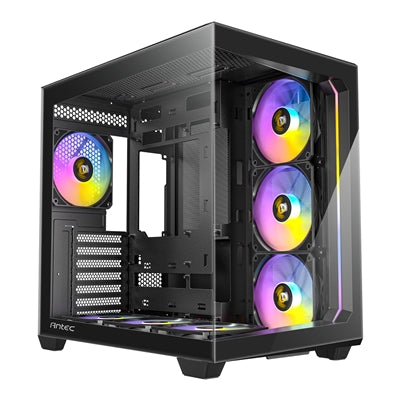

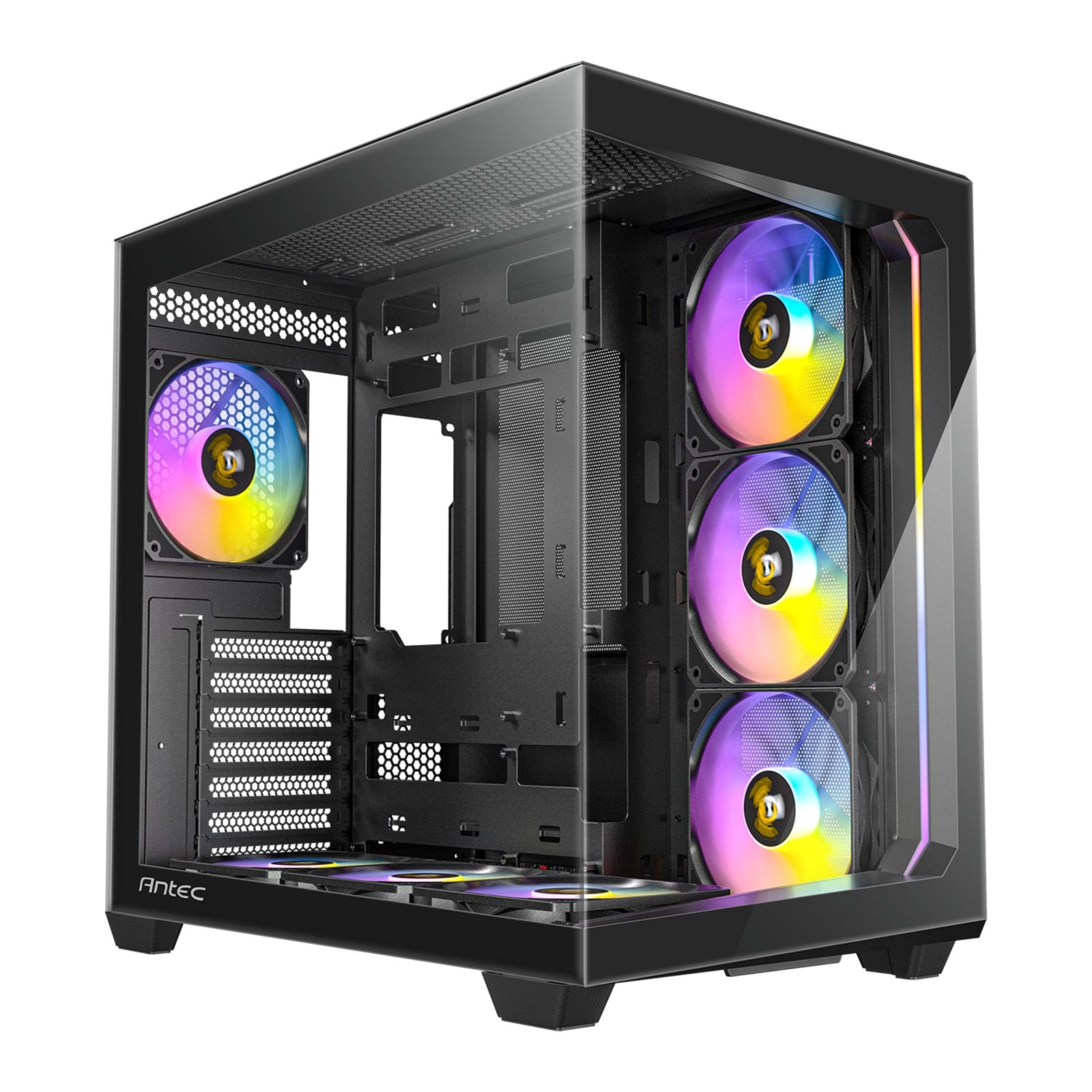

ANTEC Constellation C5 Black ARGB Mid Tower Case

The ANTEC Constellation C5 delivers a premium PC building experience with its distinctive 270° full-view tempered glass design. The seamless paneling features unique 45° beveling technique that creates minimal joint gaps, providing an uninterrupted panoramic view of your build from multiple angles.

Dual Chamber Design for Superior Cooling

The C5 ARGB features an innovative dual chamber layout that separates cooling zones for independent thermal management. The right chamber houses a top-mounted power supply with 95mm of cable management space, keeping your build organized and improving airflow efficiency. This mid tower case supports vertical cooling with capacity for up to 10 fans, creating a bottom-to-top airflow channel that accelerates heat dissipation.

Next-Gen Back-Connect Motherboard Support

Built for modern PC configurations, the C5 ARGB supports next-generation back-connect motherboards. This design allows cables to be routed from the rear, delivering a cleaner front appearance and smoother airflow channels. Compatible with ATX, Micro-ATX, and ITX form factors, this case adapts to various build requirements.

Pre-Installed 7 x ARGB PWM Fans

The case comes equipped with seven 120mm PWM ARGB fans and a built-in fan controller. Six reverse fans are strategically positioned on the side and bottom panels to provide massive air intake, while one rear fan ensures optimal exhaust. The tool-free front panel features an integrated ARGB lighting strip for customizable aesthetics.

Extensive Water Cooling Compatibility

For enthusiasts seeking liquid cooling solutions, the C5 ARGB offers simultaneous support for top and bottom 360mm radiators plus a side 280mm radiator. The spacious interior accommodates GPUs up to 410mm in length, CPU coolers up to 160mm in height, and PSUs up to 240mm in length (including cables).

Storage and Connectivity

The removable hard drive cage provides space for 1 x 3.5" HDD and 2 x 2.5" SSD. Additional storage options include mounting a 3.5" HDD at the case bottom after removing the frontmost bottom fan, or a 2.5" SSD after removing the lowest side fan. Front panel connectivity includes 2 x USB 3.0 ports, 1 x Type-C 3.2 Gen 2 port, microphone and HD-audio jacks.

Premium Build Quality

Constructed from steel, plastic, and 4mm tempered glass, the C5 ARGB measures 469 x 285 x 400mm (DWH) with a net weight of 7.6 kg. Magnetic dust filters on top and bottom panels ensure dust-free air intake. The case includes 7 expansion slots and comes with a 2-year warranty.

270° Full-view tempered glass
Tempered glasses adopt the seamless paneling design with unique 45° beveling technique that makes the minimal joint gap, delivering an uninterrupted panoramic view.

Stylish front panel
Featuring tool-free design, the front panel is decorated with ARGB lighting strip for fancy and aesthetic

Dual chamber
Dual chamber design for independent cooling, with the right chamber featuring top-mounted power supply and 95mm cable management space.

Support back-connect motherboards
C5 ARGB supports next-gen back-connect motherboards. Plug in the cables from the back to give the front a cleaner look and a smoother airflow channel.

Vertical Cooling
Vertical cooling scheme supporting up to 10 fans accelerates heat dissipation with bottom-to-top vertical airflow.

Pre-installed 7 x ARGB PWM fans with built-in fan controller
6 reverse fans on the side and bottom provide massive air intake.

Ample space for water cooling
Simultaneous support for top and bottom 360mm radiators and side 280mm radiator.

Magnetic Dust Filters
Top and bottom magnetic dust filters for dust-free air intake.

Storage Compatibility
Removable hard drive cage provides space for 1 x 3.5" HDD and 2 x 2.5" SSD. The case bottom can additionally accommodate a 3.5" HDD after removing the frontmost bottom fan, or a 2.5" SSD after removing the lowest side fan.

SPECIFICATIONS

Dimensions
469 x 285 x 400mm (DWH)

Form Factor
Mid Tower

Materials
Steel + Plastic + Glass

Mainboard Support
ATX, Micro-ATX, ITX

Front Access & Controls
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1

Side Panel
4mm Tempered Glass

Drive Bays

Expansion Slots
7

3.5"
1

2.5"
2

Fan Support

Top
3 x 120 / 2 x 140mm

Side
3 x 120 / 2 x 140mm

Bottom
3 x 120mm

Rear
120mm

Included Fan(s)
3 x 120mm PWM ARGB reverse fans at bottom + 3 x 120mm PWM ARGB reverse fans on right side + 1 x 120mm PWM ARGB fan in rear

Radiator Support

Top
120 / 140 / 240 / 280 / 360mm

Side
120 / 140 / 240 / 280mm

Bottom
120 / 240 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 410mm

Max CPU Cooler Height
= 160mm

Max PSU Length
(Include cable)= 240mm

Miscellaneous

Dust Filter
Top / Bottom

Net Weight
7.6 Kg

Gross Weight
9.2 Kg

Warranty
2 Years

• Form Factor: Mid Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
