Antec FLUX M Mini Tower PC Case

The Antec FLUX M delivers exceptional cooling performance in a compact mini tower form factor. Built with the innovative F-LUX Platform, this case features a vertical airflow design that accelerates heat exhaust from bottom to top, ensuring your components stay cool under load.

Superior Cooling Performance

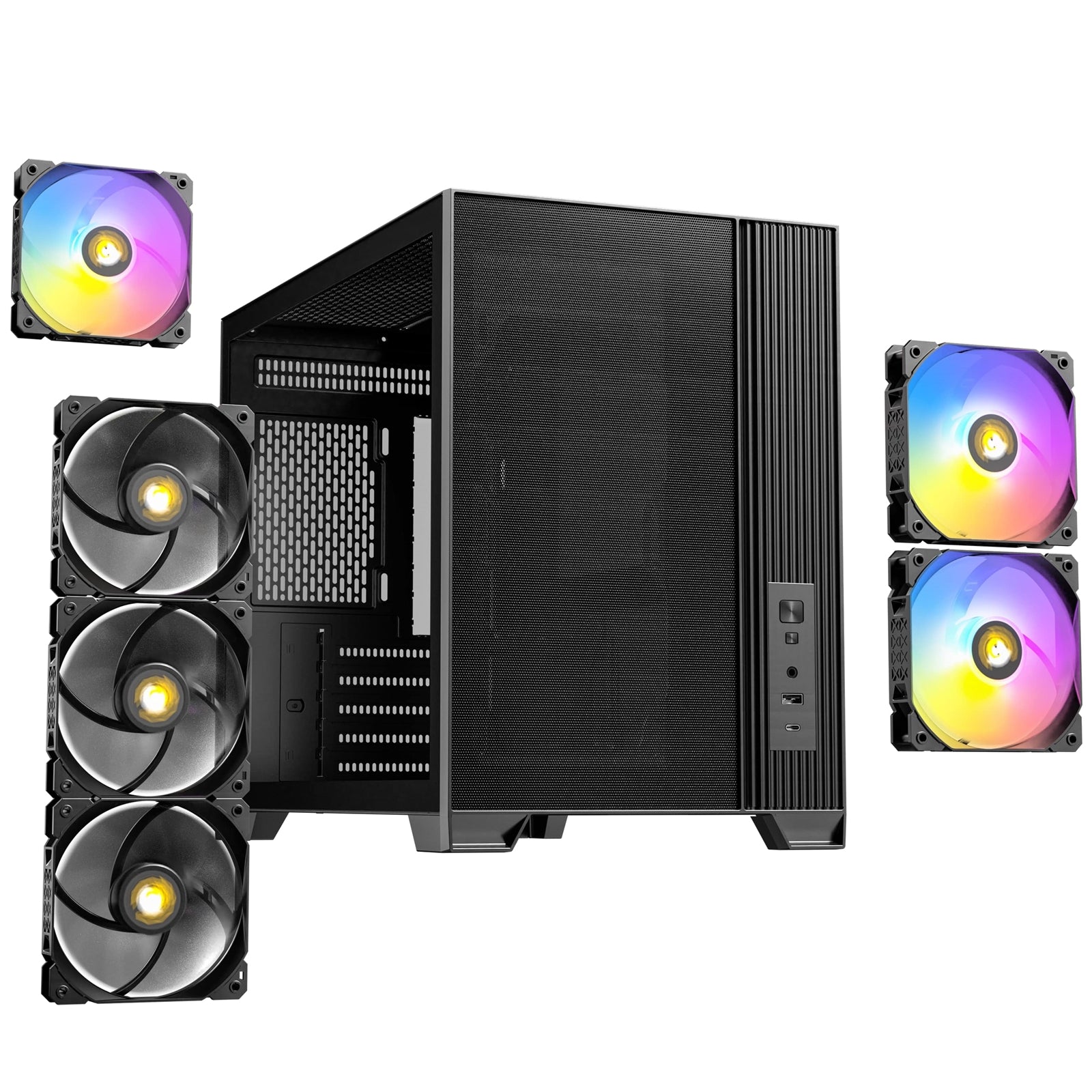

Pre-configured with 6 PWM fans for optimal thermal management: 2 x 120mm ARGB PWM fans at the front, 3 x 120mm reverse PWM fans at the bottom, and 1 x 120mm ARGB PWM fan at the rear. The large front panel mesh maximizes air intake while the vertical airflow design creates negative pressure for efficient heat removal. With 0mm clearance between GPU and bottom fans, airflow circulation is optimized throughout the chassis. Supports up to 360mm radiators at the top for advanced liquid cooling configurations.

Modern Connectivity & Build Quality

Front I/O includes USB 3.0, Type-C 3.2 Gen 2 (10 Gbps) for fast data transfer, and a headphone/mic combo jack. The 3mm tempered glass side panel showcases your build while the steel and plastic construction ensures durability. Cable management space provides up to 59mm at the front and 49mm at the rear for clean builds.

Specifications

Dimensions: 459 x 247 x 365mm (DWH)
Form Factor: Mini Tower
Materials: Steel + Plastic
Mainboard Support: Micro-ATX, ITX
Front Access & Controls: Power, Reset, USB3.0 x 1, Type-C 3.2 Gen 2 (10 Gbps) x 1, Headphone/Mic Combo Jack
Side Panel: 3mm Tempered Glass

Drive Bays:
Expansion Slots: 5
3.5" / 2.5": 2 / 2

Fan Support:
Front: 2 x 120mm
Top: 3 x 120mm
Bottom: 3 x 120mm
Rear: 1 x 120mm
Included Fan(s): 2 x 120mm ARGB PWM fans at the front + 3 x 120mm PWM reverse fans at the bottom + 1 x 120mm ARGB PWM fan at the rear

Radiator Support:
Top: 120 / 240 / 360mm
Rear: 120mm

Clearance:
Max GPU Length: 405mm
Max CPU Cooler Height: 175mm
Max PSU Length (Cable not included): 160mm

Miscellaneous:
Dust Filter: Top / Bottom
Net Weight: 6.35 Kg
Gross Weight: 7.41 Kg
Warranty: 2 Years

• Form Factor: Micro Tower
• Motherboard Support: ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 1
• Side Panel: Tempered Glass
