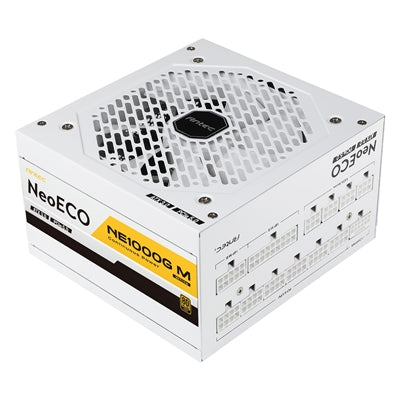

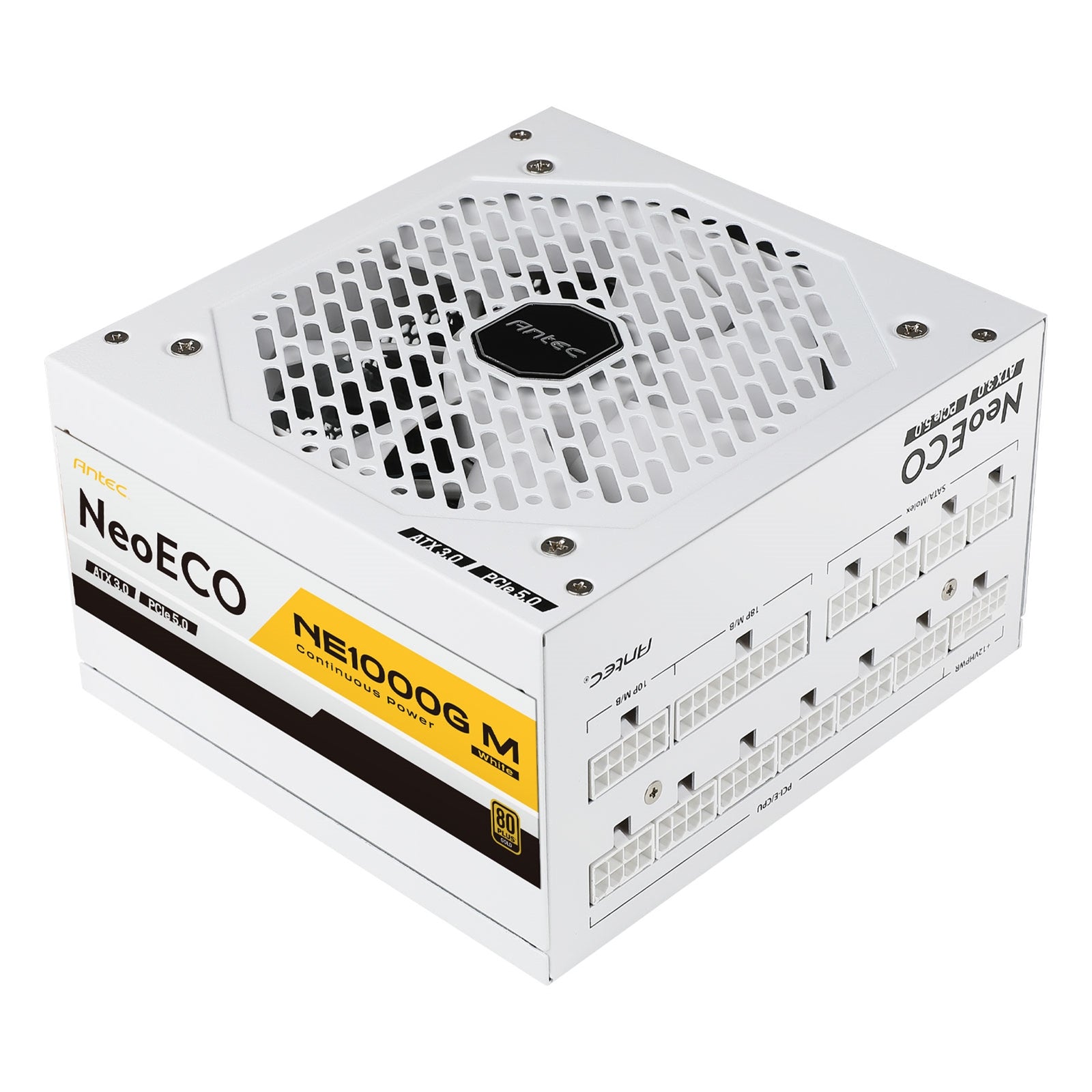

Antec NE1000G M White - ATX 3.0 Power Supply with PCIe 5.0

The Antec NE1000G M White delivers 1000W of reliable power for high-performance gaming systems and professional workstations. This fully modular ATX 3.0 power supply features 80 PLUS Gold certification, achieving superior energy efficiency while reducing heat and noise during operation.

ATX 3.0 & PCIe 5.0 Compatibility

Formally certified for ATX 3.0 compliance, the NE1000G M meets modern power delivery standards. The included PCIe 5.0 12VHPWR GPU cable provides native support for NVIDIA GeForce RTX 40 Series graphics cards and other next-generation GPUs, delivering up to 600W through a single cable connection.

Premium Japanese Capacitors & PhaseWave Design

High-quality Japanese capacitors ensure tight voltage regulation with minimal ripple and noise. The PhaseWave Design utilizes server-class LLC topology with synchronous rectification based on DC-DC architecture, providing stable power delivery across all voltage rails. The single 12V rail design supplies 83A of continuous current for demanding components.

Advanced Thermal Management

The 120mm fluid-dynamic bearing (FDB) fan combines high airflow with whisper-quiet operation. Zero RPM Manager technology keeps the fan completely silent during low to medium loads, activating only when thermal sensors detect the need for active cooling. This extends fan lifespan while maintaining optimal operating temperatures.

Fully Modular Cable System

Connect only the cables your system requires, eliminating clutter and improving airflow. The modular design includes: 1x 24-pin (20+4) motherboard connector, 1x 16-pin (12+4) PCIe 5.0 12VHPWR, 2x 8-pin (4+4) CPU/EPS connectors, 4x 8-pin (6+2) PCIe connectors, 12x SATA, and 4x Molex connectors.

CircuitShield Protection Suite

Industrial-grade protections safeguard your components: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge Inrush Protection (SIP), and No Load Operation (NLO).

Compact Design & Long-Term Reliability

Measuring 140mm(L) x 150mm(W) x 86mm(H), this compact power supply fits a wider range of cases compared to standard ATX units. Active PFC and universal input (100-240V) ensure compatibility worldwide. Backed by a 10-year warranty and multiple international certifications including cTUVus, TUV, CB, CE, FCC, and UKCA.

SPECIFICATIONS

Model:
NE1000G M White ATX 3.0

Type:
ATX 12V 3.0

Dimension:
140(L)*150(W)*86(H)

Modular:
Full-Modular

Warranty:
10 years

Input Voltage:
100V-240V

Input Current:
12A-6A

Input Frequency Range:
60Hz-50Hz

PFC:
Active PFC

Power Good Signal:
100-150ms

Protection:
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity:
1000W

Operation Temperature:
0~40°C

Regulatory:
cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES

Fan:
120mm FDB Silent Fan

Certifications:
80 Plus Gold

Connector:
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.0 12VHPWR
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
12 x SATA
4 x Molex

Net Weight:
1.64 Kgs

Gross Weight:
4.66 Kgs

• Wattage: 1000W
• Size/Version: ATX 3.0
• Modular: Fully
• SATA Connections: 12
• Certification: Gold
• Colour: White
