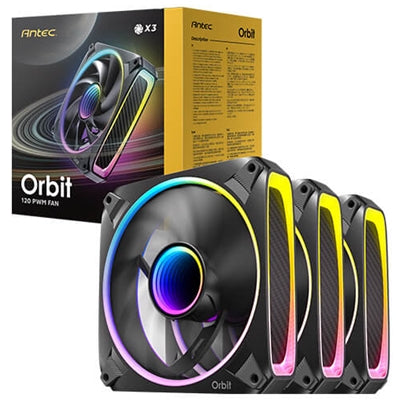

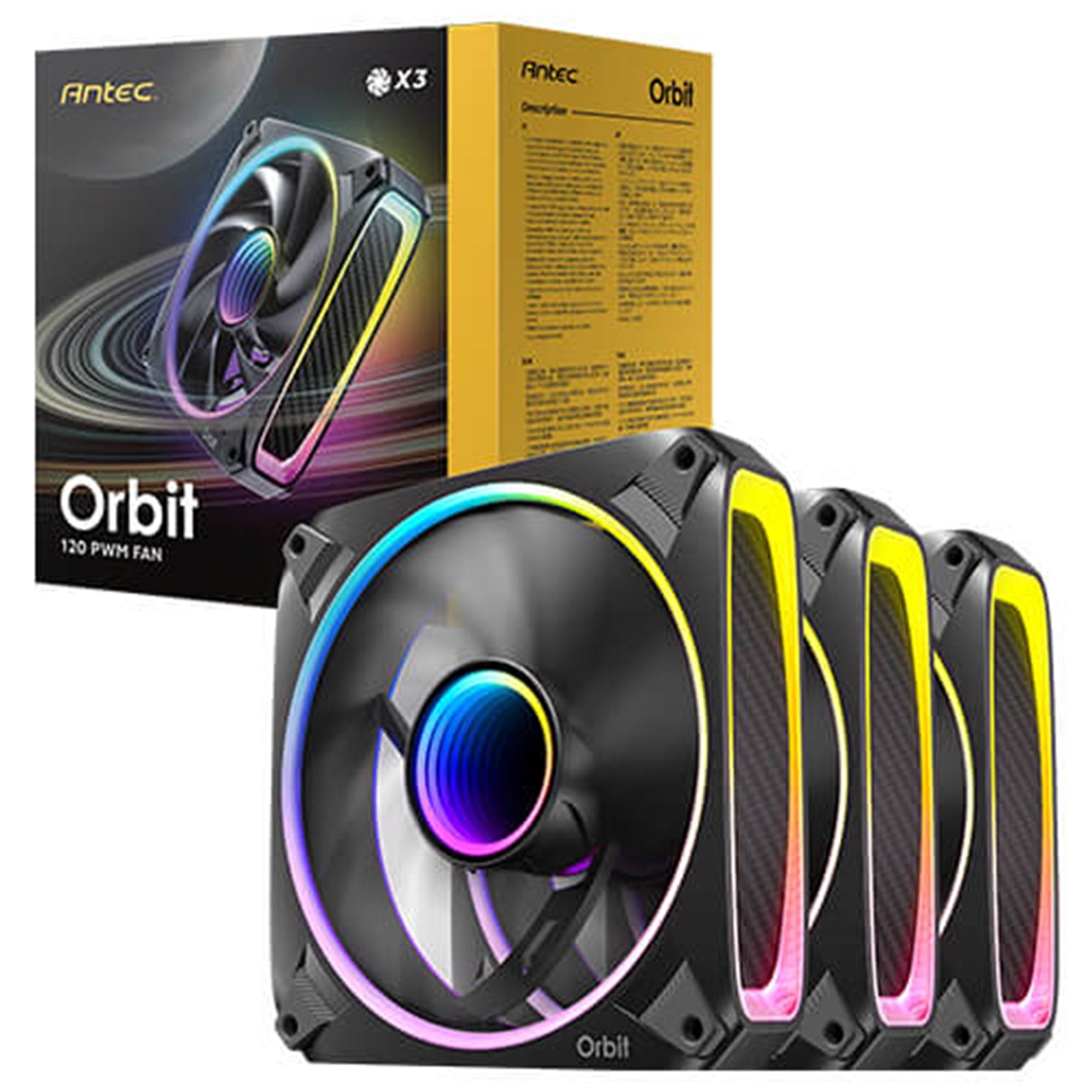

Antec Orbit 120 ARGB Fan - Triple Pack

The Antec Orbit 120 ARGB delivers performance-focused cooling with distinctive visual design. This triple pack of 120mm fans combines 28mm thickness, fluid dynamic bearings, and addressable RGB lighting for PC builders seeking reliable airflow and customizable aesthetics.

Enhanced Airflow Performance

The 28mm thickness increases the contact surface area and air inlet space between the fan and chassis, improving overall airflow delivery. With a 9-blade design, these fans achieve up to 66.72 CFM airflow and 2.06 mmH2O static pressure. The intelligent PWM control adjusts fan speed from 200-2000 RPM based on system demands, ensuring optimal cooling under load while maintaining near-silent operation during idle periods. When PWM duty cycle drops below 6% in standby mode, the fan automatically stops through chip-based regulation for ultra-quiet performance.

Infinity Mirror ARGB Lighting

The curved surface design on both front and rear covers creates an infinity mirror effect at the center of the blades, producing a distinctive visual effect. The addressable RGB lighting connects via standard 3-pin ARGB headers, allowing synchronization with motherboard lighting ecosystems for unified system aesthetics.

Fluid Dynamic Bearing Technology

FDB bearing technology extends operational lifespan to 50,000 hours at 40°C while reducing vibration and noise. This bearing type provides quieter, more stable operation compared to standard sleeve bearings, making these fans suitable for both high-performance and noise-sensitive builds.

Vibration Dampening Design

Eight rubber anti-vibration pads absorb vibrations during operation, minimizing noise transfer to the chassis. The diagonal pattern design on the pads complements the overall aesthetic while serving a functional purpose. Combined with the FDB bearing, noise levels range from 18-31 dB(A) across the speed range.

Specifications

Model: Orbit 120 ARGB
Dimensions: 120 x 120 x 28 mm
Bearing Type: Fluid Dynamic Bearing (FDB)
Fan Speed: 200-2000 ±10% RPM
Airflow: 0.48-66.72 ±5% CFM
Air Pressure: 0.02-2.06 ±5% mmH2O
Noise Level: 18-31 ±5% dB(A)
Lifespan: 50,000 hours at 40°C
Connectors: 4-pin PWM Fan | 3-pin ARGB LED
Rated Voltage: Fan DC 12V | LED DC 5V
Operating Voltage: Fan DC 6.0-13.2V | LED DC 3.7-5.5V
Rated Current: Fan 0.35A | LED 1A
Warranty: 3 years

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2000RPM
• Fan Shroud Colour: Black
• LED Colour: RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
