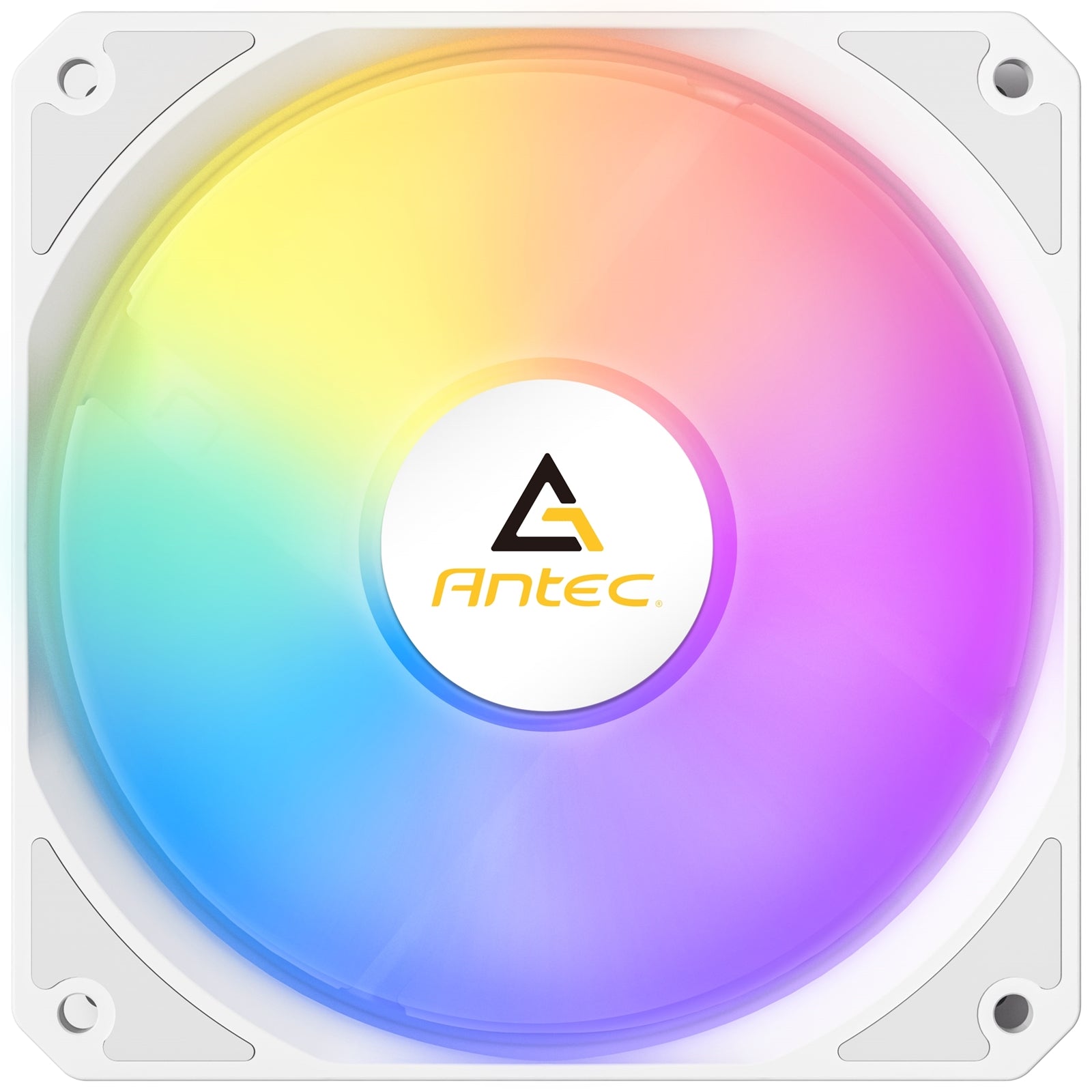

Antec P12R ARGB Reverse PWM 120mm Case Fan

The Antec P12R ARGB features a reverse fan blade design that provides smoother air intake while maintaining a cleaner aesthetic for your PC build. This 120mm PWM fan combines efficient cooling performance with customizable ARGB lighting, making it suitable for gaming rigs and high-performance systems.

9-Blade Design for Superior Airflow

Equipped with a 9-blade configuration, this fan delivers efficient ventilation with airflow ranging from 55.31 to 61.46 CFM at maximum speed. The blade design maintains cooling efficiency even as air resistance increases, with air pressure reaching up to 1.07 mmH2O. The fan operates between 600-1500 RPM, providing flexibility for different cooling requirements.

PWM Control and Quiet Operation

The 4-pin PWM connector allows precise fan speed control between 240-1350 RPM, letting you balance noise levels and cooling performance. The hydraulic bearing system, combined with 8 anti-vibration rubber pads, ensures quiet operation with noise levels ranging from 14.2 to 29.5 dB(A). This makes the P12R ARGB suitable for builds where acoustics matter.

Addressable RGB Lighting

Full-spectrum addressable RGB lighting provides customizable visual effects through the 3-pin ARGB connector. The lighting operates at DC 5V with 0.3A rated current, compatible with standard motherboard ARGB headers for synchronized lighting control across your system.

Technical Specifications

Model Name: P12R ARGB
Fan Type: ARGB PWM Fan
Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
Fan Speed: 600±100~1500±150 RPM
Airflow: 55.31~61.46 CFM (max.)
Air Pressure: 0.87~1.07 mmH2O (max.)
Fan Noise Level: 14.2~29.5 dB(A)
Lifespan: 30,000 hours / 40° | 40,000 hours / 25°
Connector: FAN: 4-pin | LED: 3-pin
Rated Voltage: FAN: DC 12 V | LED: DC 5 V
Operation Voltage: FAN: DC 7.0-13.8 V
Rated Current: FAN: 0.15 A (0.22A (max.)) | LED: 0.3 A
Warranty: 1 Year

Durability and Reliability

The hydraulic bearing system provides a lifespan of 30,000 hours at 40°C or 40,000 hours at 25°C, ensuring long-term reliability. The fan operates on DC 12V with a rated current of 0.15A, supporting voltage ranges from 7.0-13.8V for compatibility with various systems.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1500RPM
• Fan Shroud Colour: White
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
