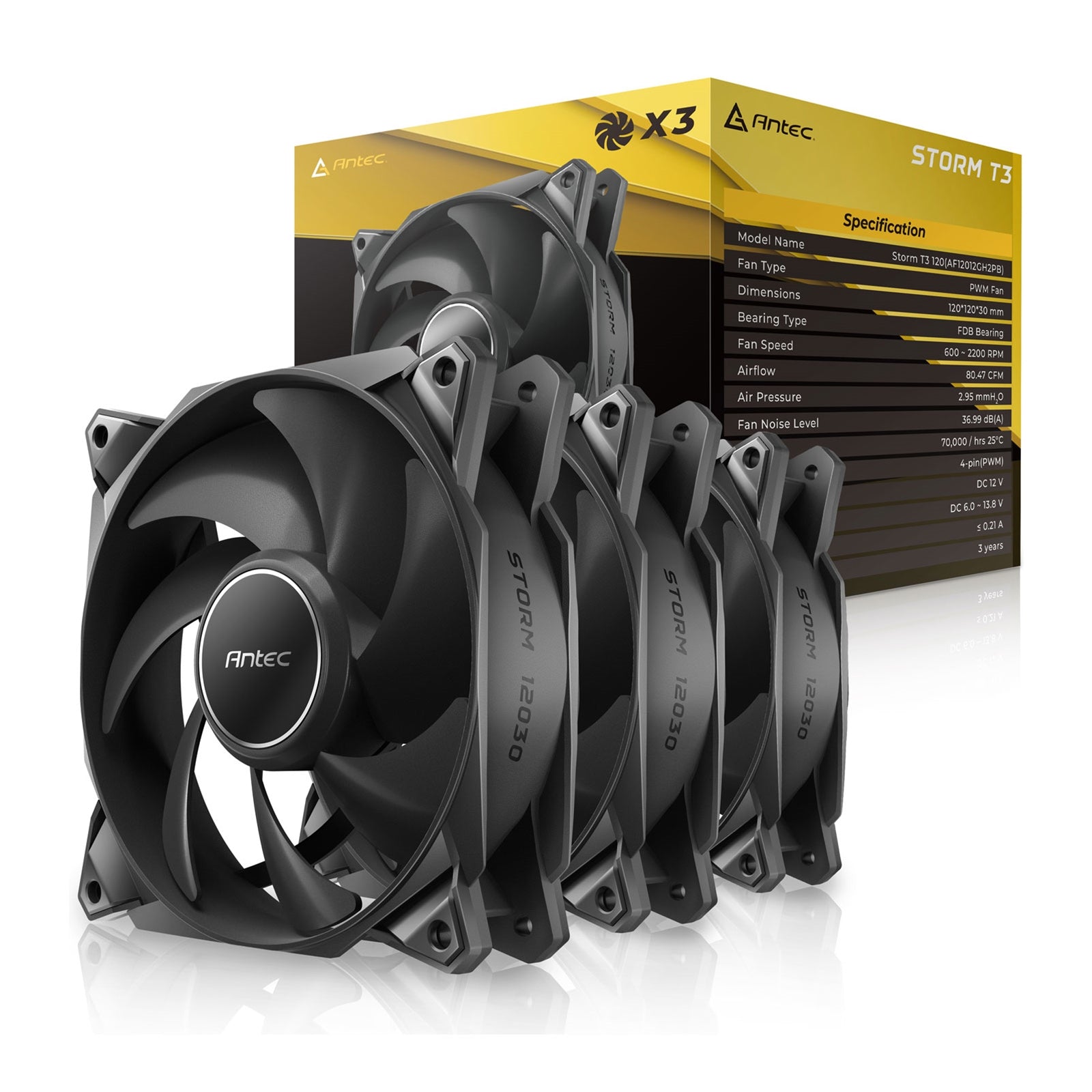

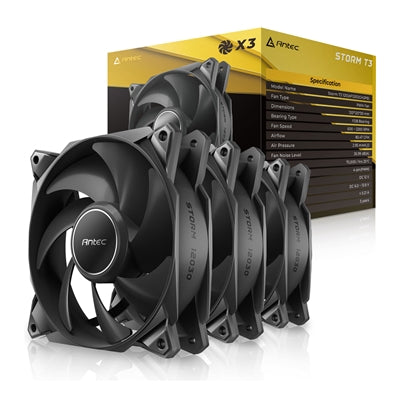

Antec Storm T3 120mm PWM Case Fan - 3 Pack

The Antec Storm T3 120mm PWM case fan delivers enhanced cooling performance through its 30mm thick design and reinforced fan blade construction. This 3-pack configuration provides comprehensive cooling for your PC build with daisy-chain PWM connectivity.

30mm Thickness for Maximum Airflow

The Storm T3 features a 30mm thickness design, 25% thicker than standard case fans. This increased depth creates a wider contact surface with your chassis and a larger air inlet area, delivering up to 80.47 CFM maximum airflow. The thickened fan blades provide higher air pressure and airflow performance while minimizing resonance during operation.

Air-Concentrating Frame Design

The engineered case frame and blade curves concentrate airflow, reducing turbulent flow and fan noise while enhancing cooling efficiency. This optimized design channels air more effectively through your system, improving overall thermal performance.

PWM Daisy-Chain Configuration

The Storm T3 utilizes a PWM daisy-chain design with 3-pin connectors between fans to prevent signal interference. All fans maintain full PWM functionality, allowing automatic speed adjustment from 600-2200 RPM based on system temperature. This design simplifies cable management while providing precise fan control.

Fluid Dynamic Bearing Technology

Equipped with FDB (Fluid Dynamic Bearing) technology, the Storm T3 offers extended durability and a lifespan of 70,000 hours at 25°C. FDB bearings reduce friction and wear, ensuring consistent performance over years of operation while maintaining quieter operation compared to sleeve bearings.

Vibration-Absorbing Anti-Noise Pads

Eight 6mm rubber pads efficiently reduce vibration transfer to your chassis, minimizing noise generation. Combined with the optimized blade design, the Storm T3 maintains a noise level of 36.99 dB(A) even at maximum speed.

Technical Specifications

Model Name
Storm T3 120 (AF12012GH2PB)

Fan Type
PWM Fan

Dimensions
120 x 120 x 30 mm

Bearing Type
FDB Bearing

Fan Speed
600~2200RPM ± 10%

Airflow
min 18.17~max 80.47 CFM

Air Pressure
min 0.25~max 2.95 mmH2O

Fan Noise Level
36.99 dB(A)

Lifespan
70,000 hrs 25°C

Connector
4-pin PWM

Rated Voltage
DC 12 V

Operation Voltage
DC 6.0-13.8 V

Rated Current
= 0.21A

Warranty
3 Years

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2200RPM
• Fan Shroud Colour: Black
• LED Colour: None
• Connections: 4-Pin Fan
