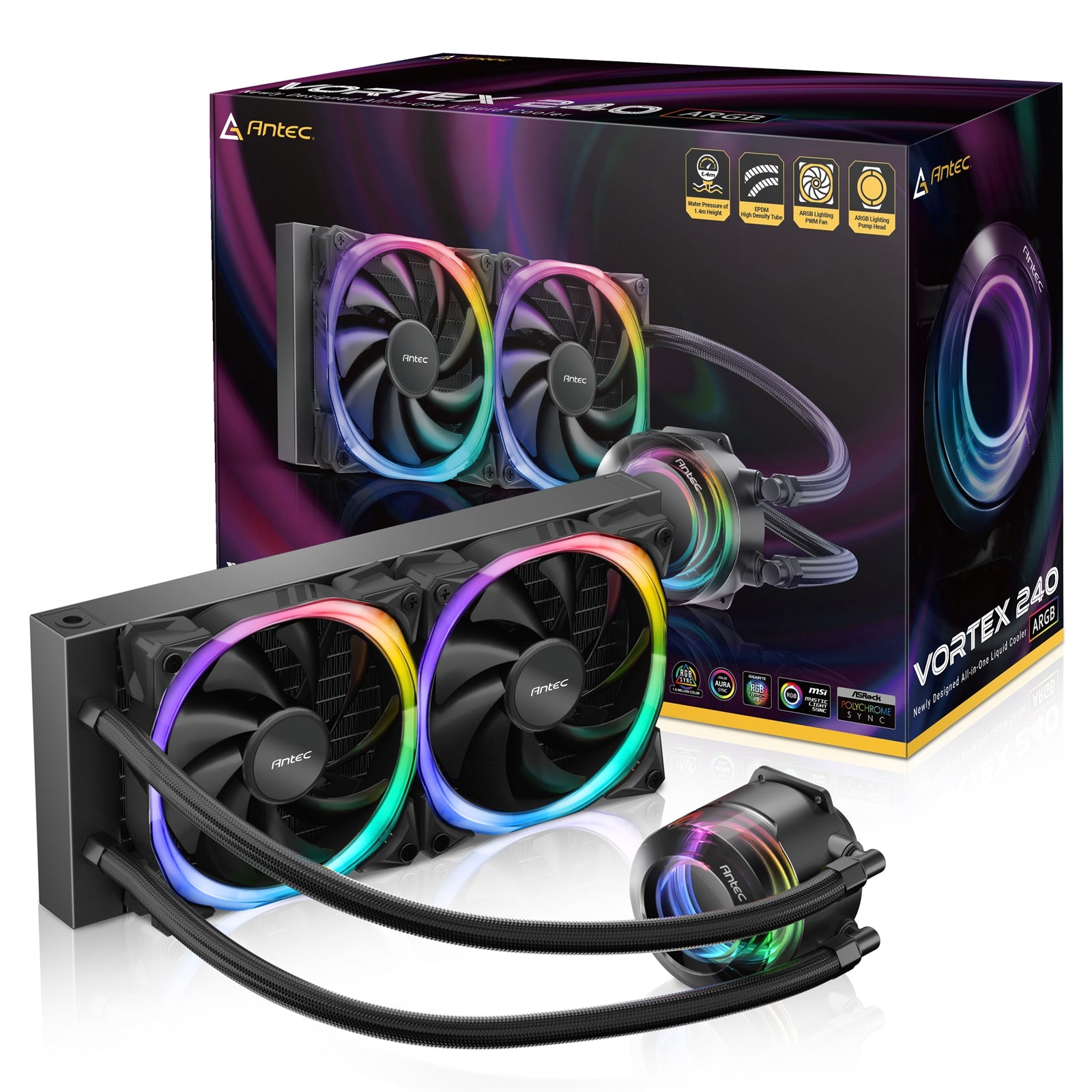

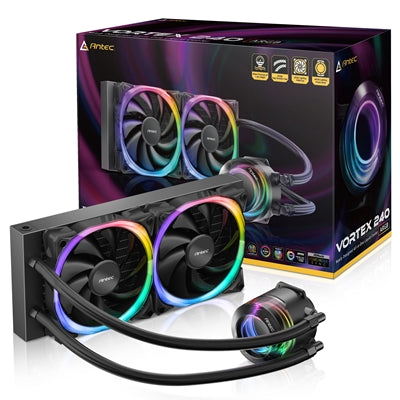

ANTEC Vortex 240 ARGB All-in-One Liquid CPU Cooler

The ANTEC Vortex 240 ARGB delivers high-performance liquid cooling with distinctive suspended spiral pump head design. This 240mm AiO cooler combines efficient heat dissipation with customizable addressable RGB lighting for AMD and Intel platforms.

Suspended Spiral Pump Head Design

The vortex-inspired pump head provides 2800 RPM operation with 1300 mL/min flow rate and 1.4M water pressure. The 3.0W pump operates quietly at ≤28 dB(A) while delivering consistent cooling performance across CPU loads. The massive copper base plate ensures direct heat transfer from the processor.

240mm Aluminum Radiator with Superior Fin Density

The 277 x 120 x 27mm aluminum radiator features 13 high-density fins for rapid heat dissipation. EPDM high-density tubing minimizes coolant loss and ensures long-term durability through 40,000 hours of operation.

Antec Fusion PWM ARGB Fans

Two Fusion 120 ARGB fans (AH12012FM1) deliver 57.93 CFM maximum airflow with hydraulic bearings. PWM control ranges from 600 RPM to 2000 RPM, generating 2.11 mmH2O air pressure at 31.24 dB(A) maximum noise. Each 120mm fan includes 16 addressable LEDs in a multilateral lighting frame.

Integrated ARGB Controller

The included ARGB controller synchronizes with motherboard RGB software via 3-pin connector. The hub supports up to 48 LEDs per connection, expandable to 120 LEDs across 4 hubs. SATA power connector ensures stable LED operation. Switch between motherboard control and manual mode with the lighting effect switch connector.

Universal Socket Compatibility

Compatible with AMD AM3, AM4, AM5 and Intel LGA 115X, 1200, 1700, 20XX, 1851 sockets. Installation hardware included for both platforms.

Technical Specifications

• Pump: 2800 RPM, 0.25A current, DC 12V, 3-pin connector
• Fans: 600-2000 RPM PWM, 4-pin connector, DC 12V
• RGB: Addressable 3-pin, DC 5V, 0.58A per fan
• Radiator Material: Aluminum with copper base plate
• Operating Temperature: -10°C to +60°C
• Lifespan: 40,000 hours (pump and fans)

The ANTEC Vortex 240 ARGB combines thermal efficiency with synchronized RGB lighting control for modern PC builds requiring reliable CPU cooling and aesthetic customization.

VORTEX 240 ARGB
The Epoch-Making All in One ARGB CPU Liquid Cooler

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x

Massive Copper Base Plate
Provides highly efficient cooling at all loads

EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan
The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

600+/-200 - 2000+/-10% RPM
Extreme Cooling Performance
- Airflow 57.93 CFM (max)
- Noise Level 31.24 dB(A) (max)
- Air Pressure 2.11 mmH2O (max)

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
- Lighting Effect Switch Connector: Connect it to the rest hub for LED control (as the Mode button)
- Mode Control: Long press for 3 seconds to switch to motherboard control and single press for switching back to the button control
- ARGB Connector: Connect it to the motherboard for lighting effects in sync
- ARGB Hub: Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs
- SATA Connector: Connect it to the SATA connector of the power supply

CPU Socket Compatibility
AMD: AM3 / AM4 / AM5
Intel: LGA 115X / 1200 / 1700 / 20XX / 1851

Radiator Specifications
Radiator Dimensions: 277 x 120 x 27 mm
Radiator Material: Aluminum

Pump Specifications
Dimensions: 67 x 48.5 mm
Rating Voltage: DC 12 V
Minimum Startup Voltage: = 5.0 V
Fan Speed: 2800+/-10% RPM
Rated Current: 0.25+/-20% A
Consumed Power: 3.0 W
Flow Rate: = 1300 mL / min
Water Pressure: 1.4M
Operation Temperature: -10°C ~ +60°C
Noise Level: = 28 dB(A)
Lifespan: 40,000 hours
Connector: PUMP: 3-pin / LED: 3-pin

Fan Specifications
Model Name: Fusion 120 ARGB fan (AH12012FM1)
Fan Type: PWM Fan
Dimensions; 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
LED Type: Addressable RGB
Fan Speed: 600+/-200 ~ 2000+/-10% RPM
Airflow: 57.93 CFM (max.)
Air Pressure: 2.11 mmH2O (max.)
Fan Noise Level: 31.24 dB(A)
Lifespan: 40,000 hours
Connector: FAN: 4-pin PWM / LED: 3-pin
Rated Voltage: FAN: DC 12 V / LED: DC 5 V
Operation Voltage: FAN: DC 6.0-13.8 V / LED: DC 4.5-5.5 V
Rated Current: FAN : = 0.21 A / LED : = 0.58 A

Socket Compatibility
Intel: LGA 115X / 1200 / 1700 / 20XX
AMD: AM3 / AM4

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2000RPM
• Radiator Size: 240mm
• LED Colour: ARGB
