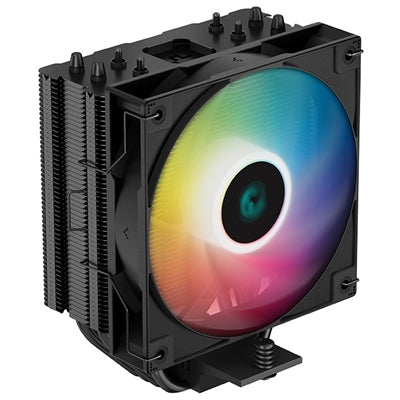

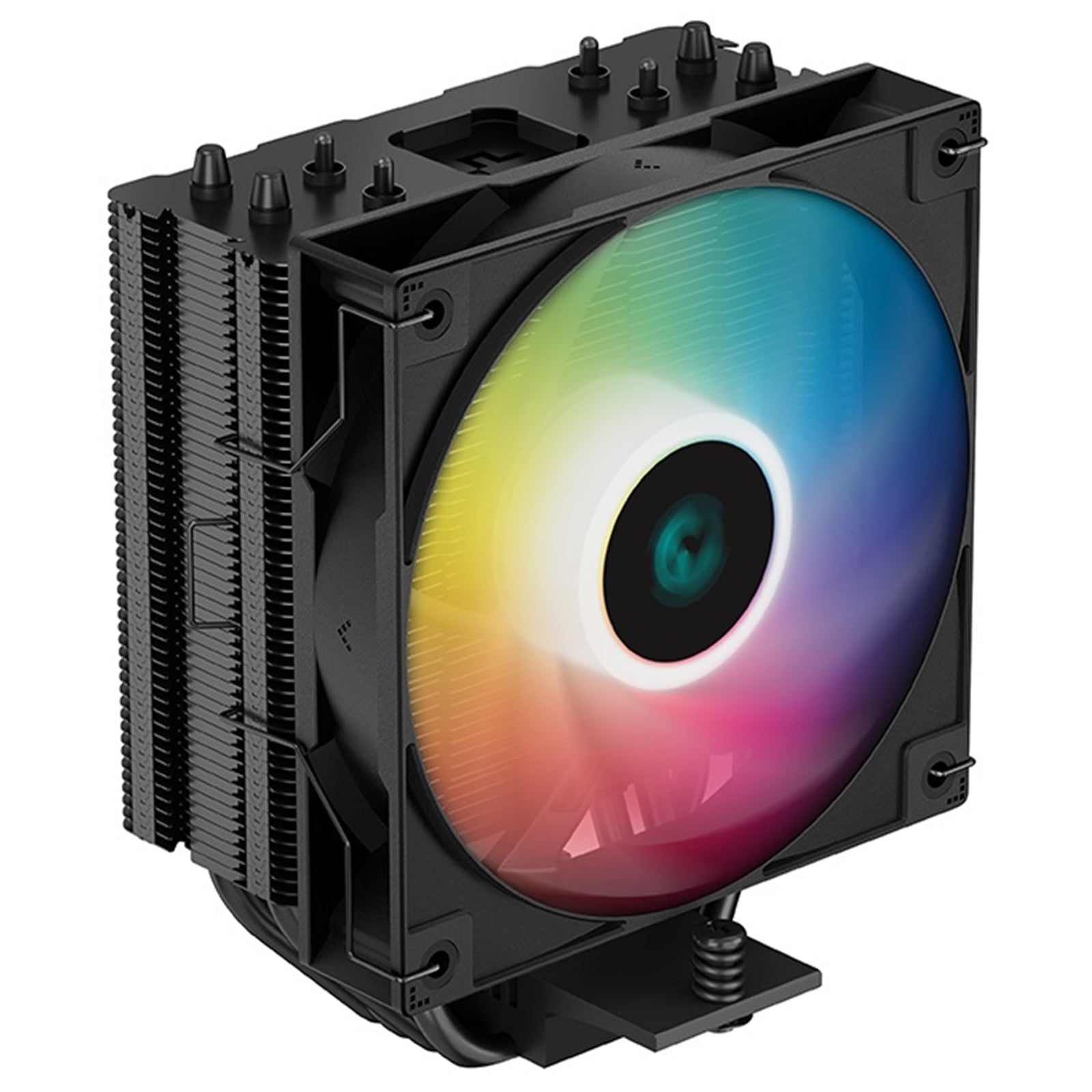

DeepCool AG400 Black ARGB V2 CPU Cooler

The DeepCool AG400 Black ARGB V2 delivers reliable cooling performance for modern processors through its single tower design and direct touch heat pipe technology. This CPU cooler combines efficient thermal management with customizable RGB lighting for builds requiring both function and visual appeal.

Direct Touch Heat Pipe Technology

Four 6mm copper heat pipes make direct contact with the CPU surface, rapidly transferring heat to the aluminum fin array. This direct touch design eliminates thermal interface resistance between the heat pipes and base plate, improving heat dissipation efficiency. The 120mm heatsink provides 150mm of vertical clearance while maintaining compatibility with standard PC cases.

120mm PWM Fan Performance

The included 120mm fan operates between 500-2000 RPM with PWM control, delivering 75.89 CFM airflow at maximum speed. The hydro bearing design ensures quiet operation at 31.6 dB(A) or less, making this cooler suitable for workstations and gaming systems. The 4-pin PWM connector allows motherboard-controlled fan speed adjustment based on CPU temperature.

Addressable RGB Lighting

Addressable RGB LEDs integrate into the cooler design, connecting via standard 3-pin (+5V-D-G) headers found on modern motherboards. The lighting system draws 1.05W and synchronizes with motherboard RGB software for customized lighting effects and color schemes.

Universal Socket Compatibility

The AG400 Black ARGB V2 supports Intel LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, and LGA1155 sockets, plus AMD AM5 and AM4 platforms. The mounting system provides 100% RAM clearance and features a slight offset design for straightforward installation without component interference.

Technical Specifications

Model Number: R-AG400-BKAMMN-GJD
Type: Single Tower CPU Cooler
Dimensions: 125mm (L) x 92mm (W) x 150mm (H)
Net Weight: 614g
Materials: Aluminum fins, copper heat pipes
Heat Pipes: Ø6mm x 4 pcs
Fan Dimensions: 120mm x 120mm x 25mm
Fan Speed: 500~2000 RPM ±10%
Fan Airflow: 75.89 CFM
Fan Air Pressure: 2.53 mmAq
Fan Noise Level: ≤31.6 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Hydro Bearing
LED Type: Addressable RGB LED
LED Connector: 3-pin (+5V-D-G)
LED Rated Voltage: 5 VDC
LED Power Consumption: 1.05W
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.28A
Fan Power Consumption: 3.36W
Supported Sockets:
Intel: LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
AMD: AM5, AM4

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 2000RPM
• LED Colour: Addressable RGB
