DeepCool AG400 Single Tower CPU Cooler

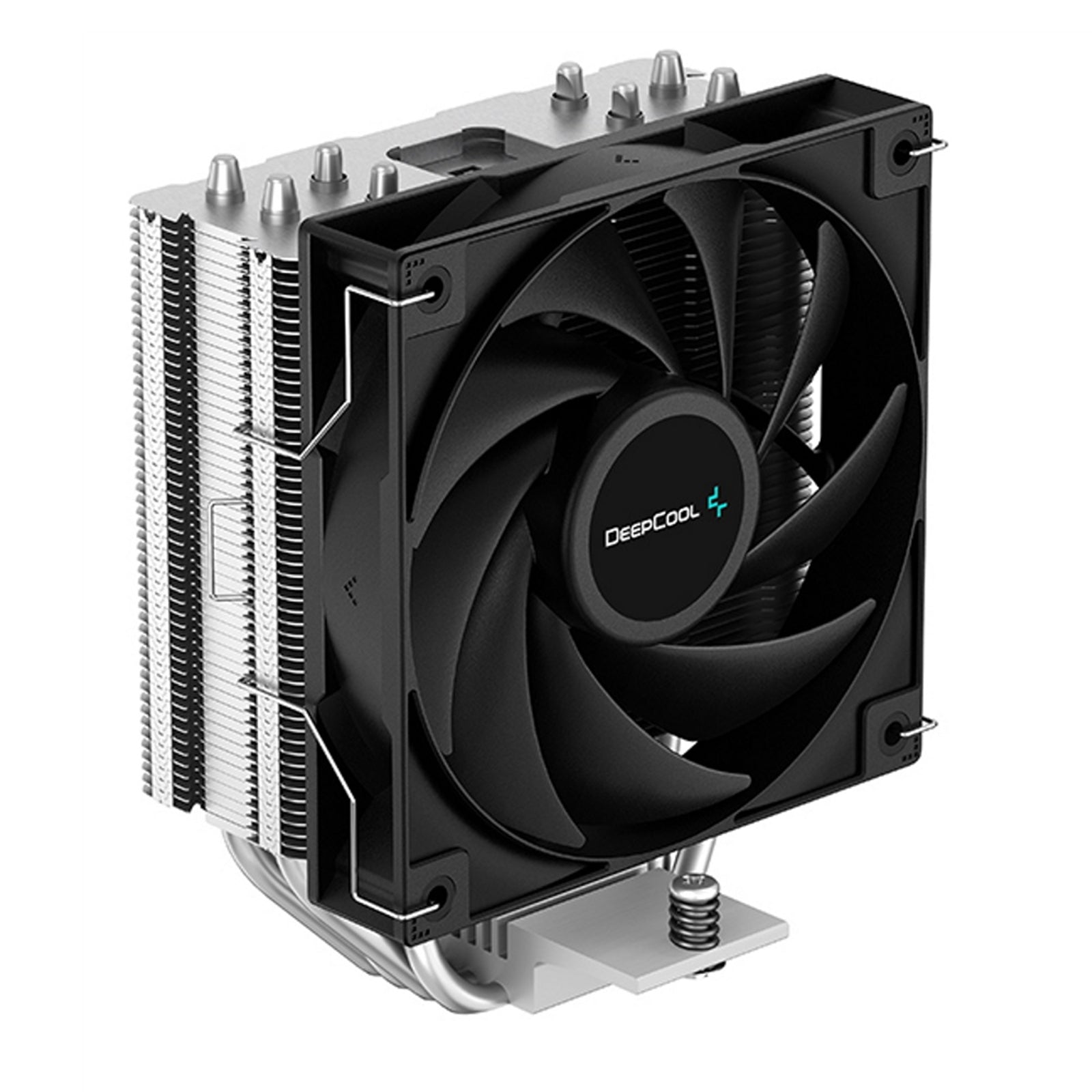

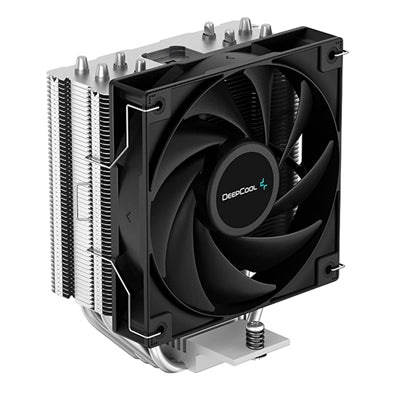

The DeepCool AG400 is a single tower 120mm CPU cooler engineered for high-quality cooling performance in a streamlined package. With 220W heat dissipation power and four direct touch heat pipes, this cooler rapidly draws heat away from your CPU to maintain optimal system performance.

Direct Touch Heat Pipe Technology

Four 6mm heat pipes make direct contact with the CPU surface for maximum thermal transfer efficiency. The balanced bidirectional heat pipe technology features an optimized internal capillary structure with precisely measured liquid injection, ensuring excellent heat dissipation whether your case is vertical or horizontal. This design achieves lower thermal resistance across a wide TDP range.

High-Efficiency 120mm PWM Fan

The included 120mm fan operates at 500-2000 RPM with automatic PWM support, delivering 75.89 CFM airflow and 2.53 mmAq air pressure. The hydro bearing fan maintains quiet operation at ≤31.6 dB(A) while providing full performance under load and silent efficiency at idle. The 4-pin PWM connector ensures precise speed control based on CPU temperature.

Matrix Fin Array Design

High-quality aluminum fins are densely stacked across the 120 x 92 x 150mm heatsink for optimal heat dissipation. The unique checkerboard matrix fin design increases surface area while providing a distinctive aesthetic for your build.

Fan Lock Mounting System

Installation is simplified with the fan lock mounting system that eliminates the need to remove the fan during installation. The offset heat pipe design ensures 100% RAM clearance and allows for quick mounting with the fan pre-attached. The included brackets support both Intel (LGA1700/1200/1151/1150/1155/1851) and AMD (AM5/AM4) platforms with a secure five-step installation process.

Universal Socket Compatibility

Compatible with Intel LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1851 and AMD AM5, AM4 sockets. The compact design maintains excellent hardware compatibility while the 220W TDP rating handles demanding processing workloads.

AG400
Efficient 4 Heat Pipes CPU Cooler
The DeepCool AG400 is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.

STELLAR THERMAL PERFORMANCE
Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.

FAN LOCK MOUNTING SYSTEM
When installing the AG400, the fan does not need to be disassembled during the process, simplifying and saving time.

PRIME COMPATIBILITY
The AG400 maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation. Its superb thermal performance also allows it to be compatible with demanding processing workloads.

BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
- 1500-2000 RPM
- =31.6 dB(A)
- 75.89 CFM

MATRIX FINS ARRAY
High-quality aluminium fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.

SIMPLE AND SECURE
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.

Application For
Intel: LGA1700 / 1200 / 1151 / 1150 / 1155 / 1851
AMD: AM5 / AM4

Product Dimensions
125 x 92 x 150 mm

Heatsink Dimensions
120 x 92 x 150 mm

Net Weight
614g

Heatpipe
6 mm x 4 pcs

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
500~2000 RPM ± 10%

Fan Airflow
75.89 CFM

Fan Air Pressure
2.53 mmAq

Fan Noise
=31.6 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.17 A

Fan Power Consumption
2.04 W

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 2000RPM
• LED Colour: None
