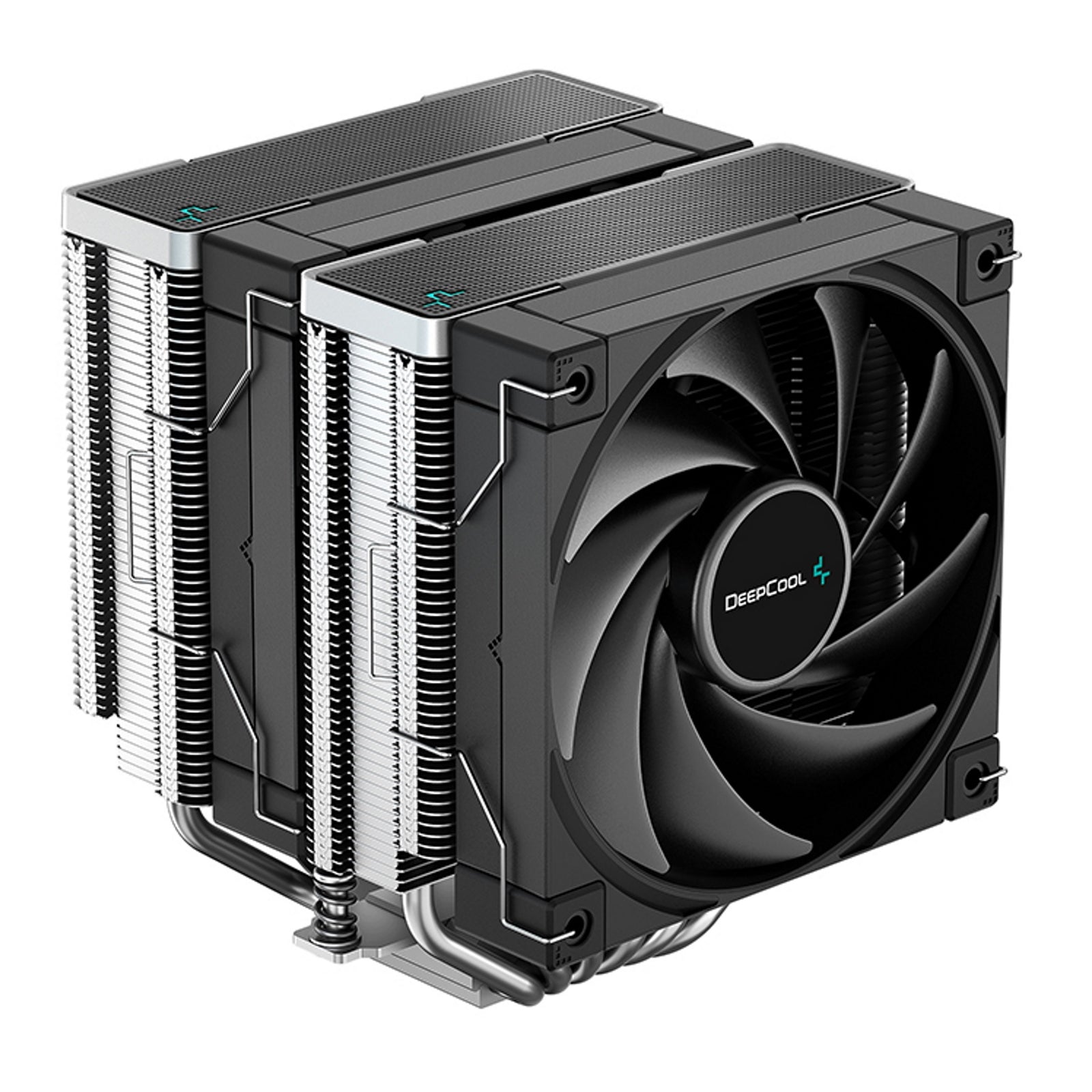

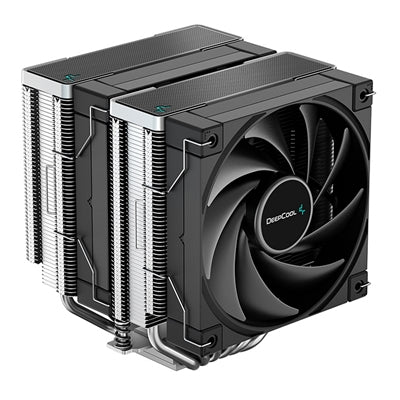

DeepCool AK620 High Performance Dual Tower CPU Cooler

The DeepCool AK620 delivers exceptional cooling performance for demanding CPUs with its robust dual-tower design. Engineered with six copper heat pipes and a dense matrix fin array, this cooler handles thermal loads up to 260W, making it ideal for high-frequency processors and overclocking enthusiasts.

Dual 120mm FDB PWM Fans

Equipped with two 120mm Fluid Dynamic Bearing fans, the AK620 operates at 500-1850 RPM with PWM control for precise thermal management. These fans deliver 68.99 CFM airflow while maintaining whisper-quiet operation at just 28 dBA under full load. The superior FDB design ensures a 50,000-hour operational lifespan with consistent performance throughout.

Advanced Heat Dissipation Technology

Six 6mm diameter copper heat pipes connect to a precision-machined convex copper base, maximizing heat transfer from your CPU. The dual-tower heatsink configuration with matrix fin design optimizes airflow distribution across the entire cooling surface, ensuring efficient heat dissipation even under sustained workloads.

Universal Socket Compatibility

The AK620 supports a comprehensive range of Intel and AMD platforms. Compatible with Intel LGA2066, 2011-v3, 2011, 1200, 1151, 1150, and 1155 sockets, as well as AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, and FM1 sockets. The all-metal mounting bracket ensures secure installation across all supported platforms.

Compact Design with RAM Clearance

Standing 160mm tall with dimensions of 129 x 138 x 160mm, the AK620 fits most standard PC cases while providing 43mm RAM clearance in dual-fan configuration (59mm with single fan setup). This thoughtful design accommodates high-profile memory modules without compromising cooling performance.

Technical Specifications

Model
AK620

Model Number
R-AK620-BKNNMT-G

Socket Compatibility
Intel: LGA2066 / 2011-v3 / 2011 / 1200 / 1151 / 1150 / 1155
AMD: AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1

Heatsink Dimensions
127 x 110 x 157 mm

Heatpipe
6 mm diameter x 6 pcs

Fan Dimension
120 x 120 x 25 mm

Fan Speed
500~1850 RPM ± 10%

Fan Airflow
68.99 CFM

Fan Air Pressure
2.19 mmAq

Fan Noise
=28 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.12 A

Fan Power Consumption
1.44 W

Product Dimensions
129 x 138 x 160 mm

Weight
Net: 1.456 kgs

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 1850RPM
• LED Colour: None
