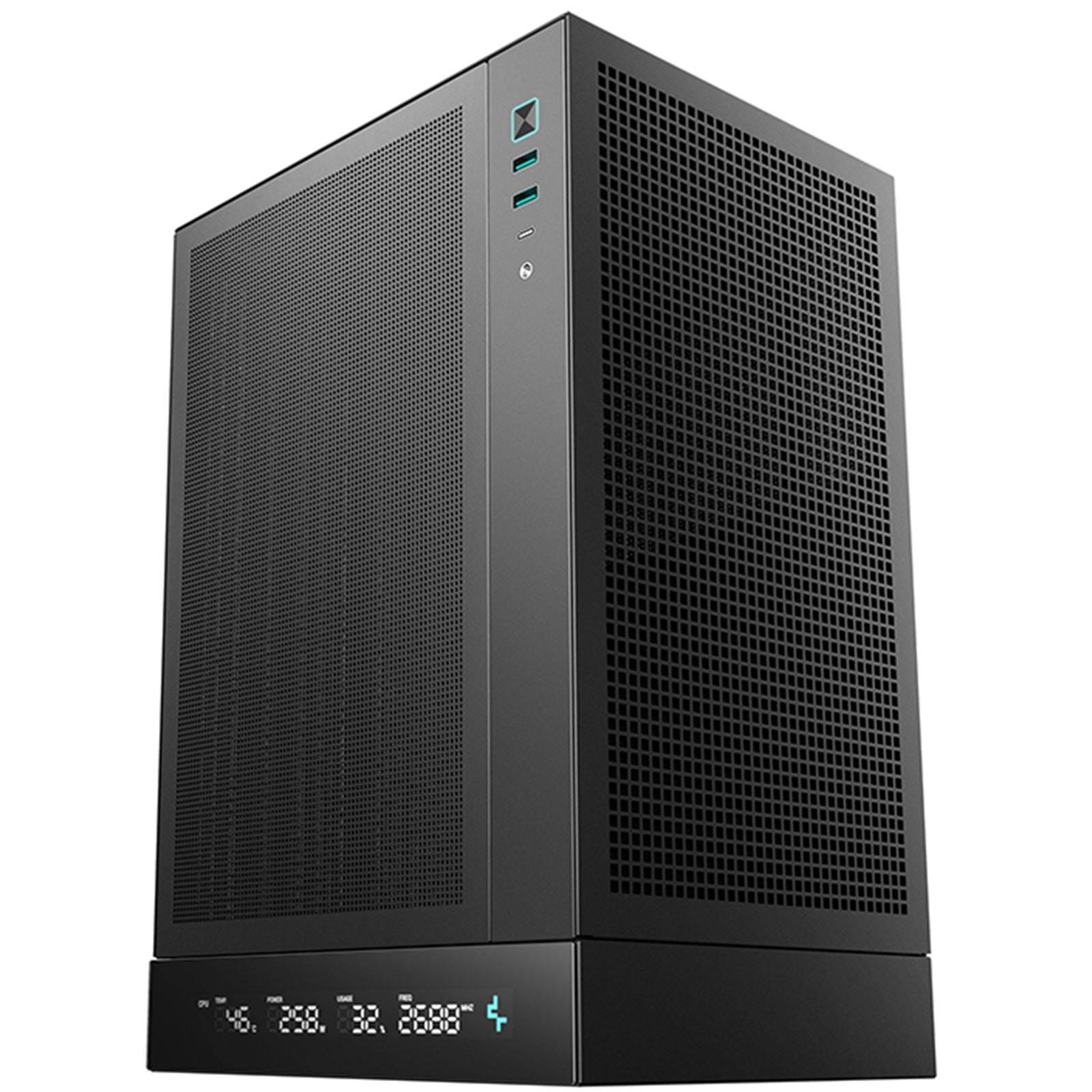

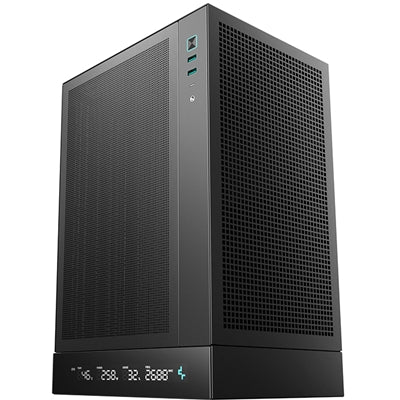

DeepCool CH170 Digital Mini-ITX Case

The CH170 Digital is a vertical Mini-ITX case designed for high-airflow performance in a compact 380 x 200 x 250mm footprint. This small form factor case features full mesh panels on all sides, creating exceptional ventilation while maintaining a minimal desktop presence.

Digital Display Base

The integrated digital display base monitors four vital data points, alternating between CPU, GPU, and PSU information. This real-time monitoring system provides instant visibility of system performance without additional software.

Cooling Flexibility

Supporting air coolers up to 172mm in height, the CH170 Digital accommodates full-sized tower coolers typically reserved for larger cases. For liquid cooling enthusiasts, the specialized radiator bracket and dedicated mesh panel support standard 240mm AIO radiators on the side panel.

Fan Configuration Options

• Top: 1 x 120mm
• Rear: 2 x 120mm
• Bottom: 1 x 120mm
• Side: 2 x 120mm

Direct GPU Mounting

The CH170 Digital supports dual-fan graphics cards up to 305mm length (with SFX/SFX-L PSU) or 230mm (with ATX PSU), 138mm height, and 65mm thickness. GPUs connect directly to the motherboard without riser cables, eliminating potential latency issues and signal degradation.

Power Supply Compatibility

This case accommodates ATX PS2 (maximum 140mm length), SFX, and SFX-L power supplies, providing flexibility for various build configurations and future upgrades.

Storage and Connectivity

The removable top fan bracket serves triple duty, supporting either a 2.5" SSD, 3.5" HDD, or 120mm fan. Front I/O includes two USB 3.0 ports, one Gen2 Type-C port, and a hybrid audio jack for convenient access.

Maintenance Features

Three removable dust filters simplify cleaning and maintenance. The modular design with removable fan brackets allows for easy component installation and system upgrades.

Technical Specifications

Materials: ABS+SPCC
Motherboard Support: Mini-ITX
Expansion Slots: 3
Net Weight: 3.4KG
Case Colour: Black
