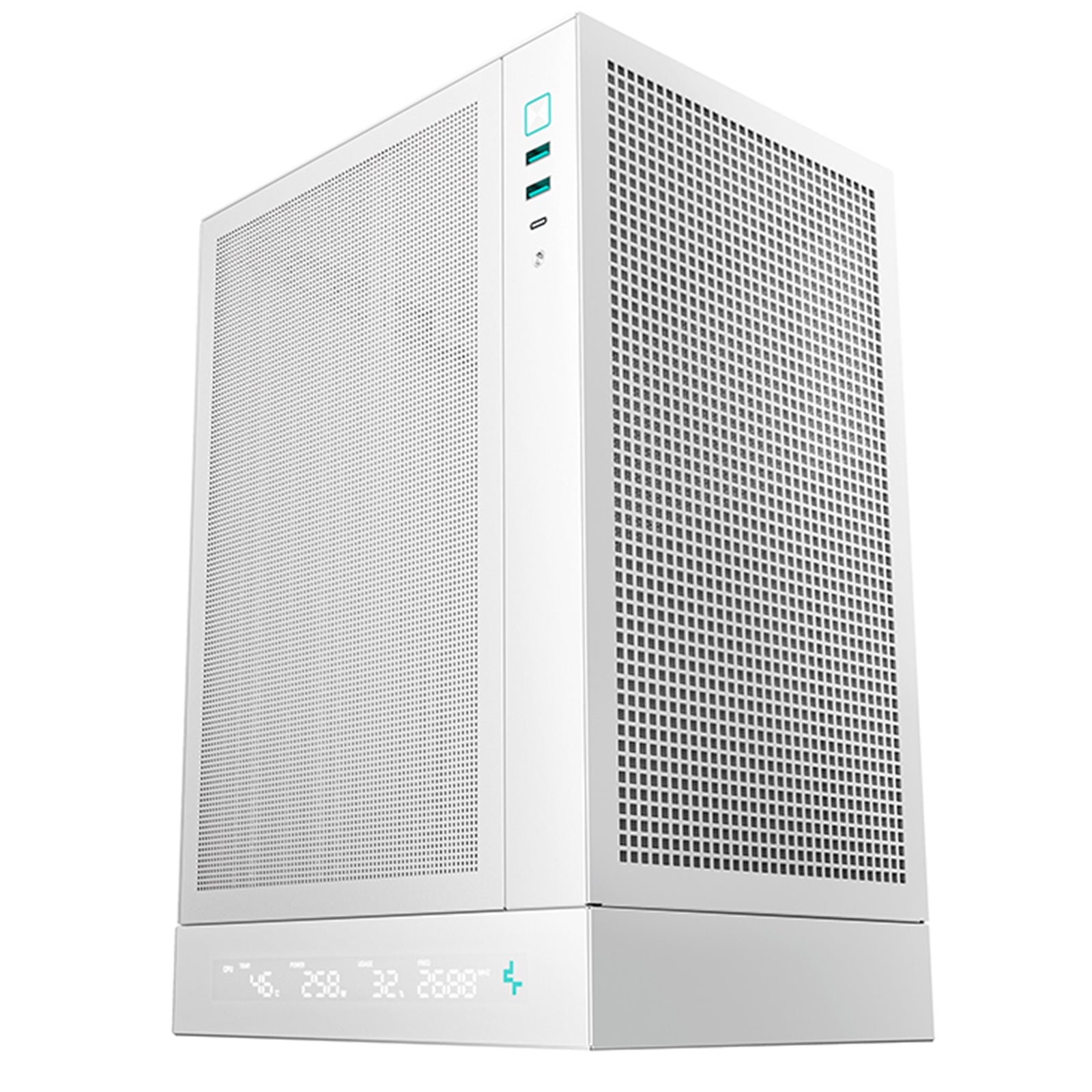

Deepcool CH170 Digital White Mini-ITX Case

The CH170 Digital White delivers high-airflow performance in a vertical Mini-ITX tower measuring just 380 x 200 x 250mm. This small-form-factor case features 360-degree mesh panels, a digital base display, and flexible cooling options for compact PC builds.

Digital Display Base

The integrated digital display monitors four vital data points, alternating between CPU, GPU, and PSU information. Track system temperatures, usage, and performance metrics without additional software.

Maximum Airflow Design

Mesh panels surround all sides of the CH170 Digital, creating unrestricted airflow for Mini-ITX builds. Fan support includes 2x120mm rear, 2x120mm side, 1x120mm top, and 1x120mm bottom mounting positions.

CPU Cooling Flexibility

The CH170 Digital accommodates tower air coolers up to 172mm in height, eliminating the common limitation of Mini-ITX cases. Alternatively, mount a 240mm AIO radiator on the side panel using the included specialized bracket and full mesh panel.

Direct GPU Installation

Install dual-fan graphics cards directly into the motherboard without riser cables. Supports GPUs up to 305mm length (with SFX/SFX-L PSU) or 230mm (with ATX PSU), 138mm height, and 65mm thickness (3-slot).

Power Supply Compatibility

The CH170 Digital accepts ATX PS2 (max 140mm length), SFX, and SFX-L power supplies, providing flexibility for your component selection and future upgrades.

Storage and Connectivity

The removable top fan bracket supports either a 2.5" SSD, 3.5" HDD, or 120mm fan. Front I/O includes 2x USB 3.0 ports, 1x USB Gen2 Type-C port, and a hybrid audio jack. Three removable dust filters simplify maintenance.

Technical Specifications

Materials: ABS+SPCC
Motherboard Support: Mini-ITX
Front I/O Ports: USB3.0 x 2, Audio x 1, Gen2 TypeC x 1
3.5" Drive Bays: 1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three)
2.5" Drive Bays: 1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three)
Expansion Slots: 3
Pre-Installed Fans: None
Fan Support - Top: 1 x 120 mm
Fan Support - Rear: 2 x 120 mm
Fan Support - Bottom: 1 x 120 mm
Fan Support - Side: 2 x 120 mm
Radiator Support - Side: 240 mm
CPU Cooler Height Limit: 172 mm
GPU Size Limit - Length: SFX/SFX-L: 305mm / ATX: 230mm
GPU Size Limit - Height: 138 mm
GPU Size Limit - Width: 65mm (3 Slots)
Power Supply Type: ATX PS2(maximum length: 140mm)/ SFX / SFX-L
Product Dimensions: 380 x 200 x 250 mm (LxWxH)
Net Weight: 3.4KG

• Form Factor: Micro Tower
• Motherboard Support: Mini-ITX
• PSU Included: None
• Case Colour: White
• LED Colour: None
• USB 3.0: 2
• Side Panel: Solid
