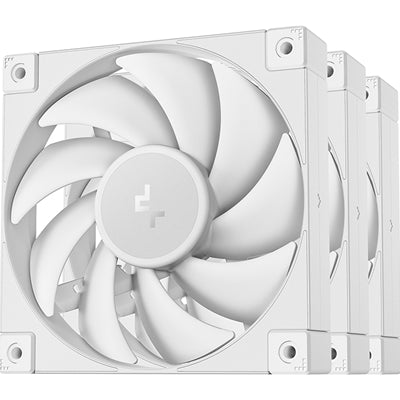

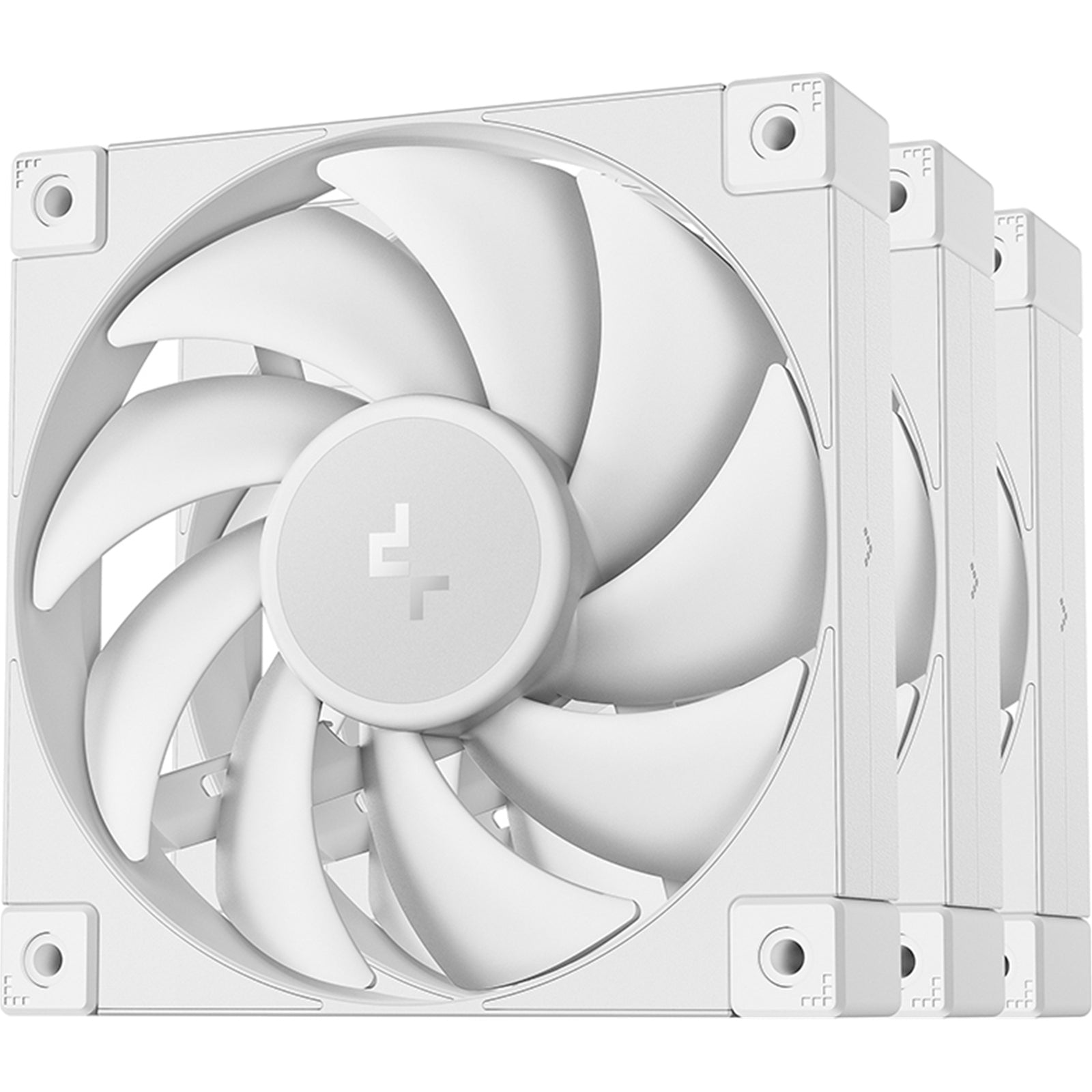

DeepCool FD12 120mm PWM Case Fan 3-Pack - White

The DeepCool FD12 120mm case fan 3-pack delivers reliable cooling performance for PC builds requiring efficient airflow management. These white PWM fans combine a 9-blade design with hydro bearing technology to provide consistent cooling while maintaining low noise levels.

Performance Specifications

Each fan operates at speeds ranging from 400 to 2050 RPM, generating up to 64.2 CFM of airflow and 2.49 mmAq of static pressure. The noise output remains at or below 27.6 dB(A), making these fans suitable for systems where acoustic performance matters. The 4-pin PWM connector enables dynamic speed adjustment based on temperature requirements, allowing the system to balance cooling performance with noise output automatically.

Hydro Bearing Technology

The hydro bearing system provides extended operational lifespan while reducing friction and noise. This bearing type uses fluid lubrication to minimize wear on moving components, contributing to the fan's durability and quiet operation. Full-coverage rubber anti-vibration pads at each corner further reduce operational noise by dampening vibrations transferred to the case.

Construction and Materials

The fan frame uses PBT (Polybutylene Terephthalate) construction, while the blades are manufactured from polycarbonate. These enhanced composite materials provide structural rigidity and resistance to thermal stress. Each fan measures 120 × 120 × 25 mm and weighs approximately 175 grams.

Electrical Specifications

Operating at 12 VDC with a rated current of 0.13 A, each fan consumes 1.56 W of power. The 4-pin PWM connector ensures compatibility with standard motherboard fan headers, while the included 8-pin proprietary daisy-chain connector allows for simplified cable management when connecting multiple fans.

Package Contents and Warranty

This 3-pack includes three 120mm PWM case fans, mounting screws for installation, and a user manual. DeepCool backs these fans with a 3-year warranty, providing coverage for manufacturing defects and performance issues.

Key Features:
High-Efficiency Cooling: Delivers strong airflow and static pressure for effective cooling.
Quiet Operation: Hydro bearing and anti-vibration pads ensure minimal noise.
PWM Control: Allows dynamic adjustment of fan speed based on system needs.
Durable Construction: Enhanced composite materials for frame and blades.
3-Pack Value: Provides multiple fans for a complete cooling solution.

Specifications:
General:
Model Number: R-FD12-WHNPN3-G
Color: White
Quantity: 3 Fans

Fan Dimensions:
Size: 120 × 120 × 25 mm
Weight (per fan): Approximately 175 g

Performance:
Speed: 400–2050 RPM ±10%
Airflow: Up to 64.2 CFM
Static Pressure: Up to 2.49 mmAq
Noise Level: ≤27.6 dB(A)

Electrical:
Rated Voltage: 12 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W

Connectors:
Fan Connector: 4-pin PWM
Daisy-Chain Connector: 8-pin proprietary

Bearing Type: Hydro Bearing

Materials:
Frame: PBT (Polybutylene Terephthalate)
Blades: Polycarbonate

Noise Dampening:
Rubber Pads: Anti-vibration pads at each corner

Package Contents:
3 × 120mm PWM Case Fans
Mounting Screws
User Manual

Warranty: 3 Years

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2050RPM
• Fan Shroud Colour: White
• LED Colour: None
• Connections: 4-Pin Fan
