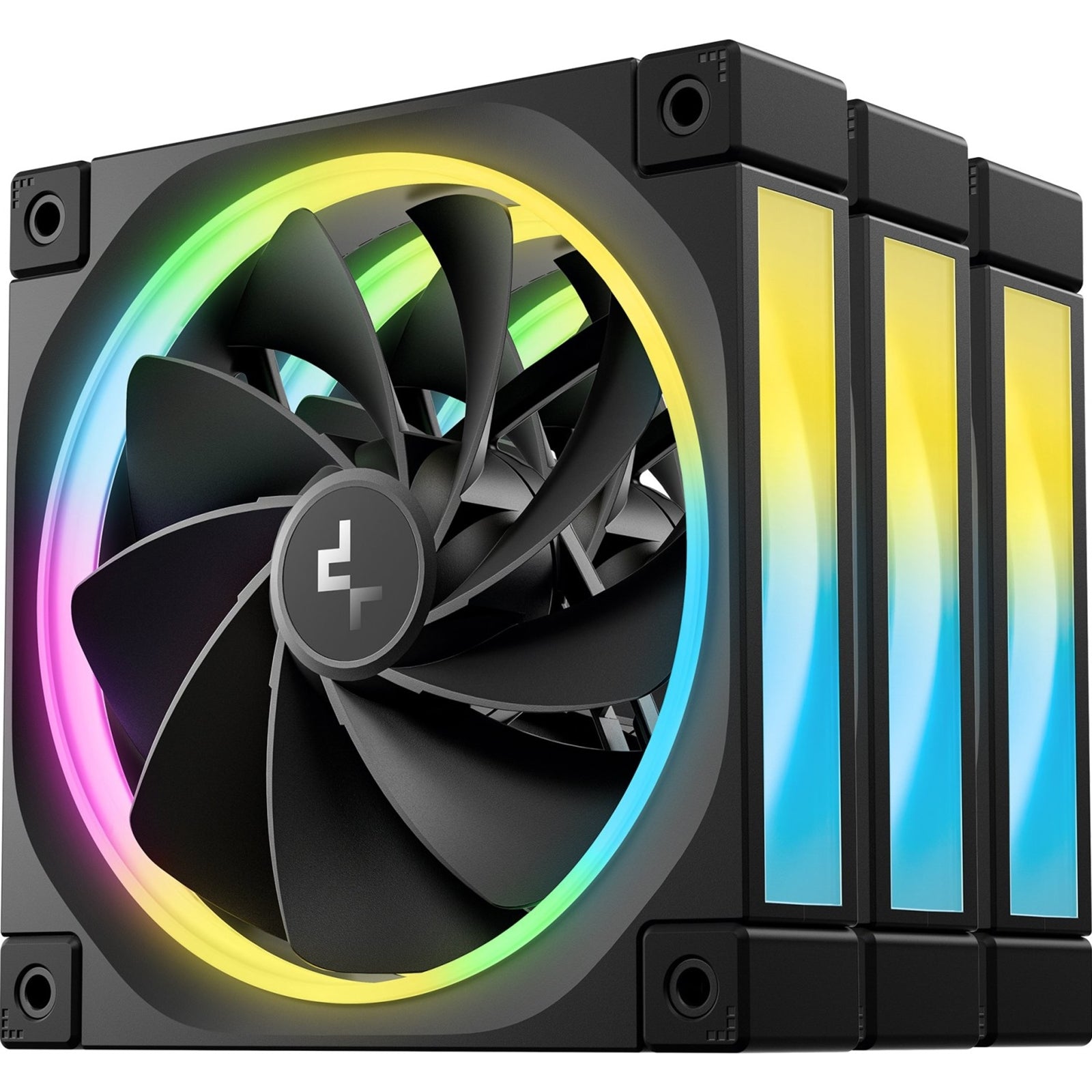

DeepCool FL12 120mm ARGB PWM Fans - 3 Pack

The DeepCool FL12 3-pack delivers optimized airflow, quiet operation, and addressable RGB lighting for PC builds. The reverse blade design creates a clean, uniform lighting effect from both intake and exhaust orientations, eliminating visible support struts on one side for improved aesthetics.

Addressable RGB Lighting System

Each fan features 36 addressable RGB LEDs that produce vibrant, customizable lighting effects. The integrated 8-pin connectors combine PWM control and ARGB lighting into a single chainable connection, simplifying cable management and installation. Compatible with 5V ARGB headers on most motherboards.

Performance Specifications

Operating at 500-2150 RPM with 4-pin PWM control, these 120mm fans deliver 55 CFM airflow and 2.59 mmAq static pressure. The fluid dynamic bearing ensures long-lasting reliability while maintaining noise levels at or below 33.9 dB(A). Anti-vibration rubber pads at each corner dampen operational noise and reduce vibration transfer to the case.

Durable Construction

Built with PBT composite frames and polycarbonate blades, the FL12 fans are engineered for durability. The fluid dynamic bearing system provides extended lifespan compared to standard sleeve bearings, while the reinforced frame maintains structural integrity during high-speed operation.

Key Features:

• Reverse Blade Design: Clean lighting effect from either intake or exhaust view
• Addressable RGB LEDs: 36 LEDs per fan for customizable lighting
• Daisy-Chain Design: Simplified wiring with 8-pin combined connectors
• Quiet Operation: Fluid dynamic bearing and rubber isolation pads
• High Performance: Balanced airflow and static pressure for optimized cooling
• Durable Construction: Reinforced frame and blades made from composite materials

Technical Specifications:

General:
Model Number: R-FL12R-BKAPN3-G
Color: Black
Quantity: 3 Fans

Fan Dimensions:
Size: 120 × 120 × 25 mm
Weight (Total): 543 g

Performance:
Speed: 500–2150 RPM ±10%
Airflow: 55 CFM
Static Pressure: 2.59 mmAq
Noise Level: ≤33.9 dB(A)

Electrical:
Rated Voltage: 12 VDC (Fan) / 5 VDC (LED)
Rated Current: 0.15 A (Fan)
Fan Power Consumption: 1.8 W
LED Power Consumption: 2.75 W

Connectors:
Fan Connector: 4-pin PWM
LED Connector: 3-pin (+5V-D-G)
8-Pin Daisy-Chain: Combines fan and lighting in one cable

Lighting:
Type: Addressable RGB (36 LEDs per fan)
Lighting Control: Compatible with 5V ARGB headers

Bearing Type: Fluid Dynamic Bearing

Materials:
Frame: PBT composite
Blades: Polycarbonate

Noise Dampening:
Rubber Pads: Full-coverage anti-vibration pads at each corner

Package Contents:
3 × 120mm ARGB Reverse Blade Fans
Mounting Screws
User Guide

Warranty: 2 Years

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2150RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
