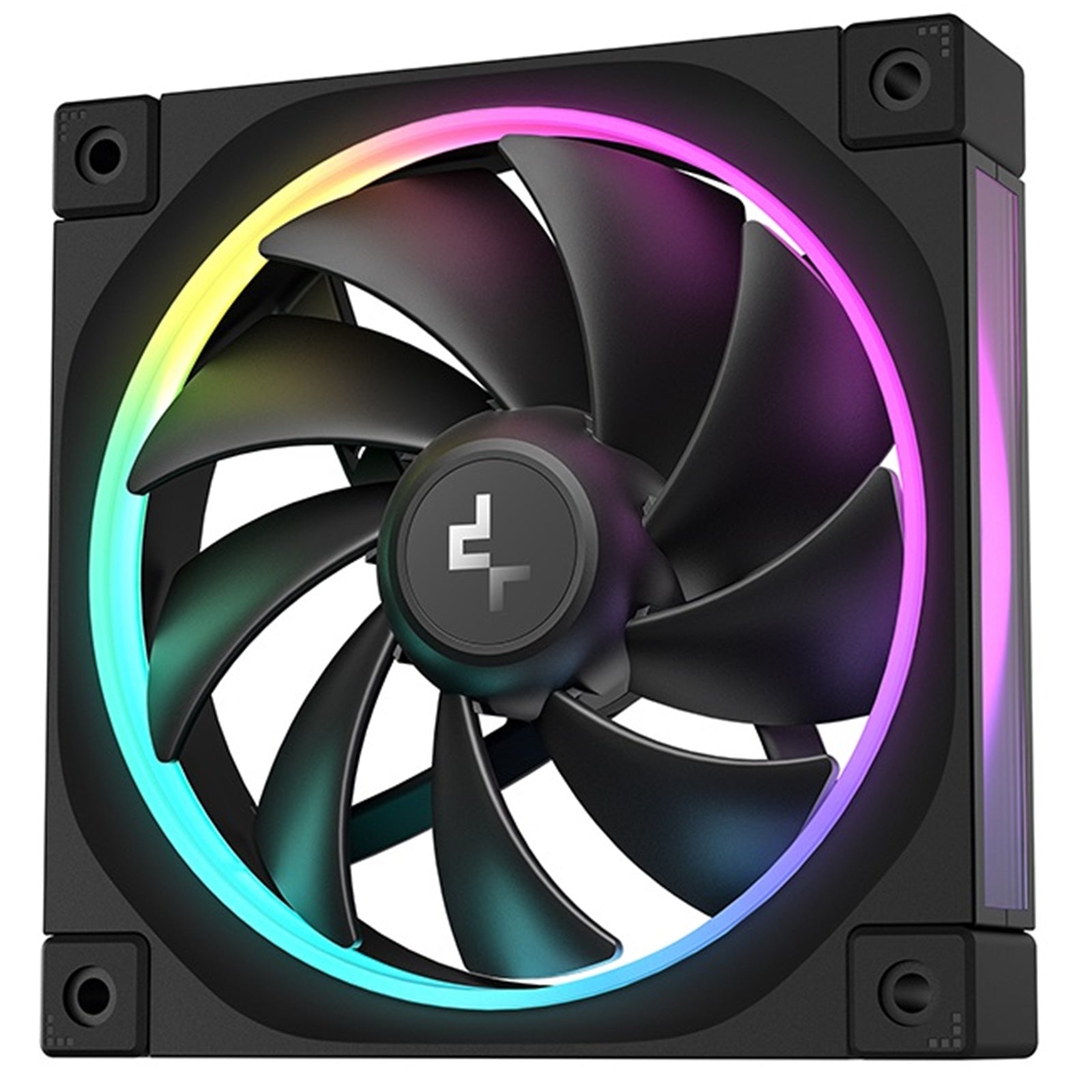

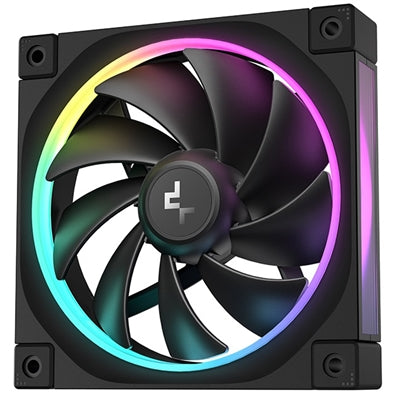

DeepCool FL12 120mm PWM Case Fan with Addressable RGB

The DeepCool FL12 is a 120mm PWM case fan engineered for high-performance cooling with customizable addressable RGB lighting. Featuring 36 ARGB LEDs and a fluid dynamic bearing, this fan combines efficient airflow with low noise operation and visual customization for PC builds.

Performance Specifications

The FL12 delivers 55 CFM airflow with an adjustable speed range of 500-2150 RPM, providing flexible cooling performance based on your system's needs. The 4-pin PWM connector enables precise fan speed control through your motherboard, automatically adjusting RPM according to temperature demands. With a maximum noise level of ≤32 dB(A), the fan maintains quiet operation even at higher speeds. The fluid dynamic bearing technology ensures long-term reliability and reduced operational noise compared to standard sleeve bearings.

Enhanced Construction and Durability

Constructed with enhanced composite material based on PBT (Polybutylene Terephthalate), the FL12's frame offers improved structural integrity and dynamic balance. This material selection provides better heat resistance and mechanical strength compared to standard plastics, contributing to the fan's durability during extended operation. The 120×120×25mm dimensions make it compatible with standard 120mm mounting points in PC cases, radiators, and heatsinks.

Addressable RGB Lighting System

The FL12 incorporates 36 addressable RGB LEDs that can be individually controlled for dynamic lighting effects. The 3-pin (+5V-D-G) ARGB connector is compatible with major motherboard RGB ecosystems, allowing synchronization with other ARGB components. The 8-pin integrated connector combines both PWM and ARGB SYNC connections, simplifying cable management and ensuring secure installation.

Technical Specifications

Fan Dimensions: 120×120×25 mm (L×W×H)
Net Weight: 166 g
Fan Speed: 500~2150 RPM ±10%
Fan Airflow: 55 CFM
Fan Air Pressure: 2.82 mmAq
Fan Noise Level: ≤32 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Rated Voltage: 12 VDC
Rated Current: 0.15 A
Power Consumption: 1.8 W
LED Type: Addressable RGB LED
LED Connector: 3-pin (+5V-D-G)
LED Rated Voltage: 5 VDC
LED Power Consumption: 2.75 W
Part Number: R-FL12-BKAPN1-G
EAN: 6933412711063

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2150RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
