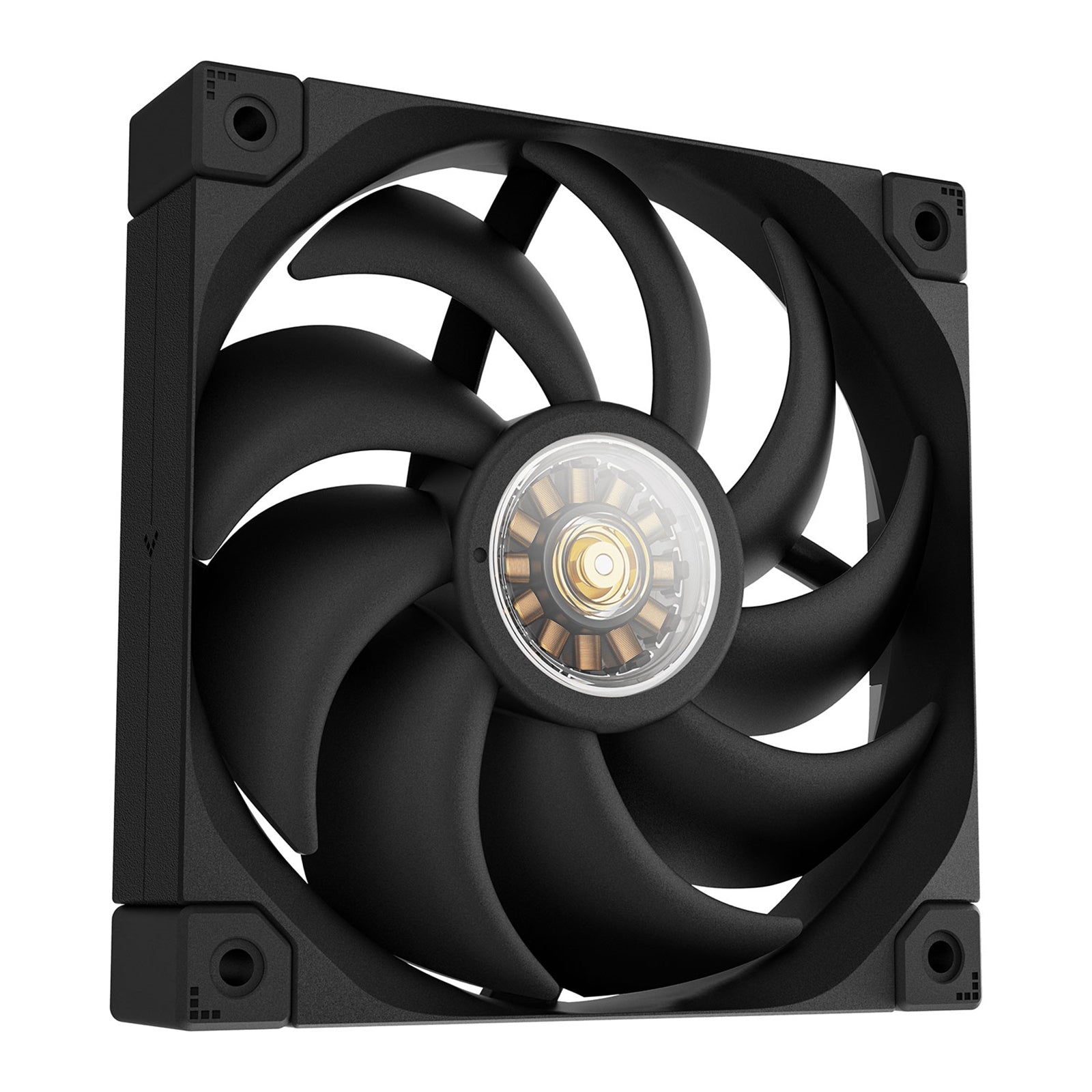

DeepCool FT12 120mm PWM Case Fan

The DeepCool FT12 is a high-performance 120mm case fan engineered to deliver efficient cooling for PC builds. This black fan combines powerful airflow with quiet operation, making it suitable for systems that demand both performance and low noise levels.

Cooling Performance

With 75 CFM airflow capacity and 4.2 mmAq static pressure, the FT12 moves substantial air volume through your case while maintaining the pressure needed to push air through restrictive spaces like heatsinks and radiators. The variable speed range from 500 RPM to 2150 RPM allows the fan to adjust cooling output based on system demands.

PWM Control and Noise Levels

The 4-pin PWM connector enables precise fan speed control through your motherboard, automatically adjusting RPM according to temperature requirements. This dynamic speed control helps balance cooling performance with acoustic output. At maximum speed, the fan operates at 32 dB(A), maintaining relatively quiet operation even under load.

Fluid Dynamic Bearing Technology

The FT12 utilizes fluid dynamic bearing technology, which provides superior longevity compared to sleeve bearings while reducing operational noise. This bearing type uses a lubricating film to minimize friction between moving parts, resulting in smoother rotation and extended service life.

Technical Specifications

Fan Dimensions: 120×120×25 mm (L×W×H)
Net Weight: 188 g
Fan Speed: 500±200 RPM to 2150 RPM±10%
Fan Airflow: 75 CFM
Fan Air Pressure: 4.2 mmAq
Fan Noise: =32 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.3 A
Fan Power Consumption: 3.6 W

Design and Compatibility

The 120mm form factor makes the FT12 compatible with standard case mounting points, CPU coolers, and radiators that accept 120mm fans. The black finish integrates cleanly with most build aesthetics without RGB lighting, making it ideal for understated or professional builds.

The combination of airflow capacity, static pressure, and controlled noise output makes the FT12 suitable for intake, exhaust, or radiator mounting positions. The PWM functionality ensures the fan operates efficiently across different thermal scenarios, ramping up when cooling is needed and reducing speed during lighter workloads.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2150RPM
• Fan Shroud Colour: Black
• LED Colour: None
• Connections: 4-Pin Fan
