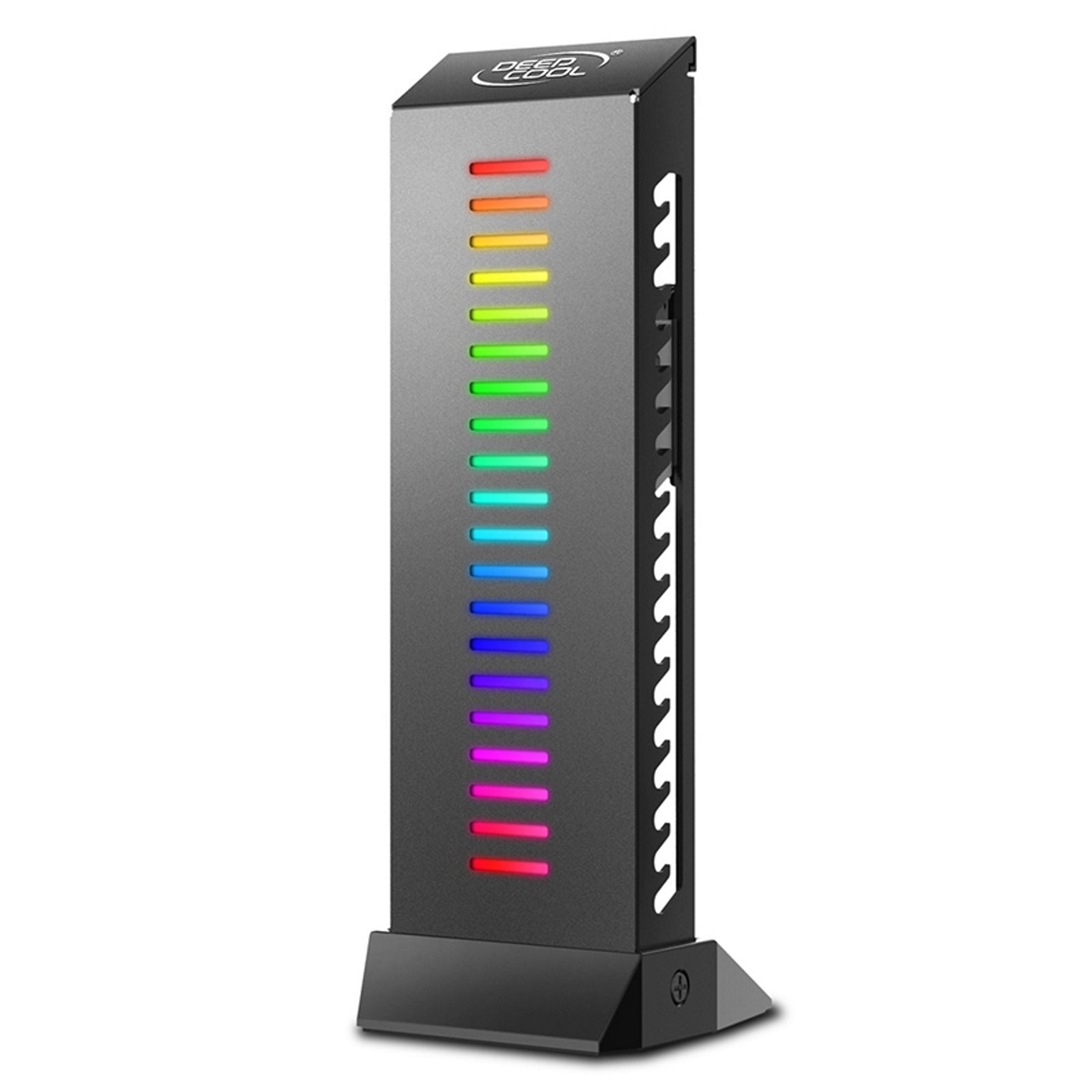

DeepCool GH-01 A-RGB Adjustable GPU Support Bracket

The DeepCool GH-01 A-RGB is an adjustable GPU support bracket designed to prevent graphics card sag while adding synchronized RGB lighting to your PC build. Engineered with a metal frame and reinforced base, this GPU stand supports graphics cards up to 5kg with reliable stability.

Addressable RGB LED Lighting

Equipped with 9 individually addressable RGB LEDs, the GH-01 A-RGB connects directly to your motherboard's 5V ADD-RGB header for synchronized lighting effects. The bracket integrates seamlessly with major RGB ecosystems including Asus Aura Sync, Razer Chroma RGB, Gigabyte RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome Sync. The 250mm cable provides flexible routing options for clean cable management.

Adjustable Height Design

The GH-01 A-RGB features a unique saw-tooth adjustment mechanism with dual-hole installation design, offering precise height adjustment across three scales: ±3.3mm, 6.7mm, and 10mm. The bracket adjusts from 47.2mm to 154mm in lowered position, and extends from 161mm to 255mm when fully extended, accommodating various case sizes and GPU configurations.

Universal Case Compatibility

This GPU support bracket works with cases both with and without power supply shrouds. The included base extension enables installation in cases lacking a PSU shroud, ensuring compatibility across different PC case designs. The modular construction with hand screws simplifies installation without requiring additional tools.

Premium Build Quality

Constructed with a metal frame and durable plastic base, the GH-01 A-RGB features a premium metallic paint finish. The integrated wire management system conceals cables for a clean aesthetic. The logical structural design and strict manufacturing standards ensure reliable support for heavy graphics cards while maintaining a compact footprint of 52.6 x 60.6mm.

Technical Specifications

Product Dimensions (W x D x H)
52.6 x 60.6 x 163.73mm (Lowered)
52.6 x 60.6 x 267.63mm (Extended)

Support Range
47.2~154mm (Lowered)
161~255mm (Extended)

Cable Length: 250mm
LED Rated Voltage: DC 5V
LED Rated Power: 1.2W
LED Control: M/B with 5V ADD-RGB Header
Net Weight: 306g

RGB Compatibility

• Asus Aura Sync
• Razer Chroma RGB
• Gigabyte RGB Fusion
• MSI Mystic Light Sync
• ASRock Polychrome Sync

• Chipset Manufacturer: GPU Support Brace
• Chipset Series: Accessories
• Chipset: All
• Form Factor: N/A
• Memory: N/A
• Fans: N/A
• RGB: Yes
