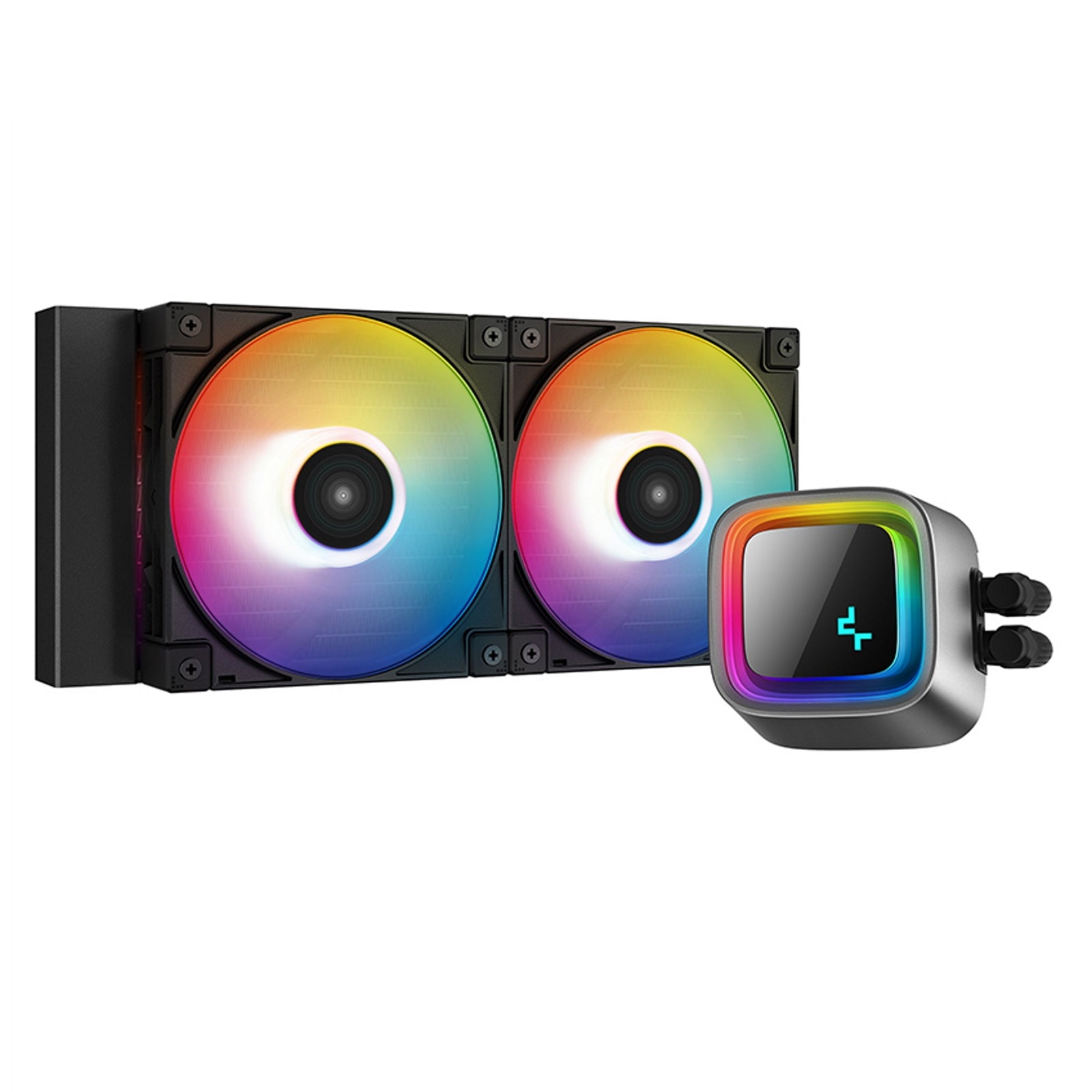

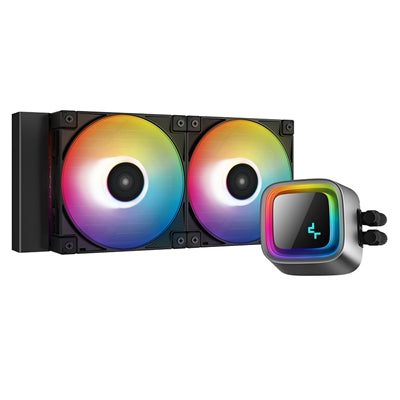

DeepCool LS520 240mm AiO Liquid CPU Cooler

The DeepCool LS520 delivers elite cooling performance through a 240mm aluminum radiator, dual FC120 A-RGB PWM fans, and a customizable infinity mirror pump design. Engineered for enthusiasts demanding optimal thermal management with minimal noise.

4th Generation High-Performance Water Pump

The LS520 features DeepCool's advanced 4th generation pump technology, operating at 3100 RPM with a powerful three-phase drive motor. The improved microchannel design ensures optimal coolant flow through the thick solid copper base, providing seamless contact with your CPU for maximum heat transfer efficiency at just 19 dB(A) noise level.

FC120 PWM Fans - Superior Airflow and Silence

Two included FC120 fans deliver 85.85 CFM airflow with enhanced static pressure and concentrated cooling. The dynamic PWM range spans 500-2250 RPM, automatically adjusting to thermal demands while maintaining ≤32.9 dB(A) at full load. Fluid dynamic bearings ensure a 50,000-hour operational lifespan with 3.27 mmAq air pressure for efficient heat dissipation.

Infinity Mirror Design with Full Customization

The pump cap projects dual light loops through an infinity mirror effect, creating a mesmerizing visual centerpiece. The independently rotatable logo plate allows installation in any orientation, while an included blank plate enables completely custom designs to match your build aesthetic.

Universal Socket Compatibility

Simplified mounting brackets provide quick, secure installation across Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 and AMD sTRX4/sTR4/AM5/AM4 platforms. The 410mm tube length accommodates various case configurations.

Addressable RGB Synchronization

Connect to 5V A-RGB headers for full lighting control through compatible RGB software and motherboard synchronization. Without a controller, the default Auto-RGB rainbow effect provides immediate visual impact on any system.

Technical Specifications

Radiator: 282 x 120 x 27mm aluminum construction
Pump: 86 x 74 x 57mm, 3100 RPM ±10%, 5.64W consumption
Fans: 120 x 120 x 25mm, 500-2250 RPM, 4-pin PWM, 3.48W per fan
RGB: 3-pin addressable, 5V, 2.2W pump + 3.6W fans
Weight: 1305g

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2250RPM
• Radiator Size: 240mm
• LED Colour: ARGB
