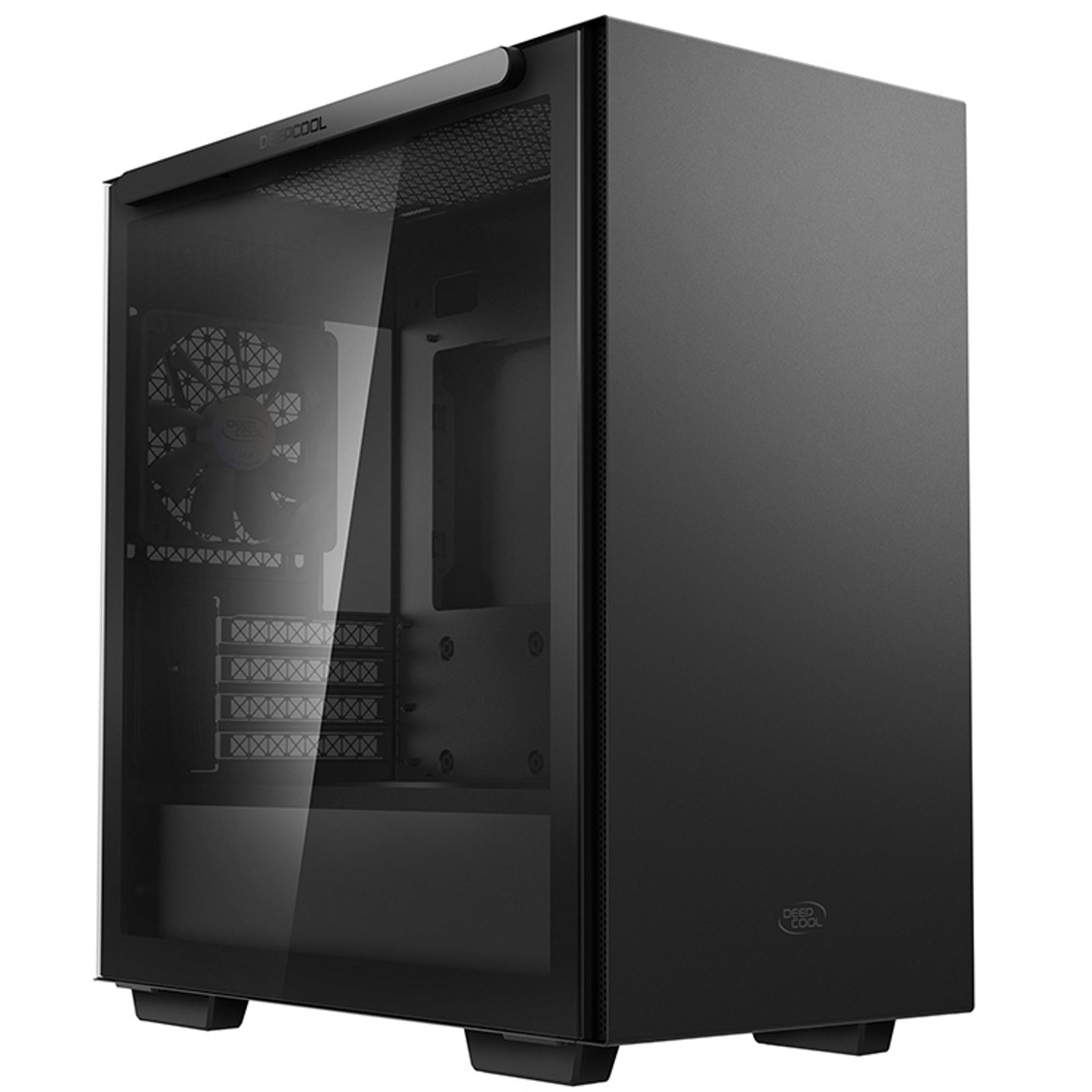

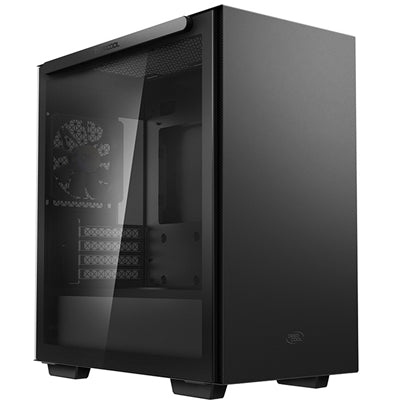

DeepCool MACUBE 110 Micro-ATX Case

The MACUBE 110 is a compact micro-ATX case designed for minimalist builds without compromising on cooling performance. This sleek black case features a magnetic tempered glass side panel that provides easy access while showcasing your components.

Cooling Performance in a Compact Form

Despite its small footprint, the MACUBE 110 supports extensive cooling configurations. Install up to six 120mm or four 140mm cooling fans throughout the case. The front and top panels accommodate radiators up to 280mm, making it compatible with most AIO liquid cooling solutions. For air cooling enthusiasts, the 165mm CPU cooler height clearance supports high-performance tower coolers including the DeepCool ASSASSIN III.

Flexible Internal Configuration

The removable drive cage provides flexibility for your build requirements. Remove or reposition it to accommodate longer PSUs up to 160mm or larger front-mounted radiators. The case includes storage for two 3.5" HDDs and two 2.5" SSDs, with a tool-less push-pin SSD holder for quick installation.

Build-Friendly Features

The magnetic tempered glass side panel removes without tools for easy access during builds and maintenance. An adjustable GPU holder comes included to prevent graphics card sag on cards up to 320mm in length. The case supports four expansion slots and features 20mm of cable management space behind the motherboard tray.

Airflow-Optimized Design

Ventilation channels integrated into the front and top panels direct fresh air to all components. The mesh top panel enhances exhaust airflow while maintaining the case's clean aesthetic. A pre-installed 120mm DC fan at the rear provides immediate exhaust capability.

Technical Specifications

Compatibility: Micro-ATX and Mini-ITX motherboards with ATX PS2 power supply support

I/O Panel: 2 x USB 3.0 ports, 1 x Audio jack

Construction: SPCC steel, ABS plastic, and tempered glass panels

Dimensions: 400mm (L) x 225mm (W) x 431mm (H), weighing 6.2KG

Clearances: CPU cooler up to 165mm, GPU up to 320mm, PSU up to 160mm

The MACUBE 110 delivers the essential features needed for a clean, compact build suitable for home offices, business workstations, or gaming setups where space is at a premium.

MACUBE 110
Refined Minimalism
The MACUBE 110 is a sleek micro-ATX case built with simplicity in mind featuring a refined magnetic tempered glass panel to show off your system.
Keeping the best details of the MACUBE line and condensed for a smaller form factor makes for a nice and tidy build.

MAXIMUM COOLING, TINY FOOTPRINT
Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling. Skip the liquid with a massive 165mm clearance that fits top-of-the-line air coolers such as our ASSASSIN III.

REMOVABLE DRIVE CAGE
Get additional clearance to support a longer PSU or a larger radiator by moving the HDD cage.

CLEARLY SENSIBLE
Featuring our popular magnetic tempered glass side panel, an adjustable GPU holder and a push-pin SSD holder for tool-less accessibility makes this case a clear choice for convenience.

VENTILATED THROUGHOUT
Direct fresh airflow to reach all your components with ventilation channels in front and on top.

Features
- Refined minimalism design
- Magnetic tempered glass side panel
- Mesh top panel
- Support up to six 120mm or four 140mm cooling fans
- Support radiators up to 280mm on top and in front
- Removable drive cage
- Adjustable GPU holder included

Form Factor
Micro Tower

Motherboard
Micro ATX
Mini-ITX

Colour
Black

Materials
ABS
SPCC
Tempered Glass

Drive Bays
Internal 3.5": 2
Internal 2.5": 2
External 3.5": 0
External 5.25": 0

Power Supply Support
ATX PS2

I/O Panel
2 x USB 3.0
1 x Audio

Expansion
Slots: 4

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280
Top: 120 / 140 / 240 / 280
Rear: 120

Clearances
CPU Cooler Height Limit: 165mm
VGA Length Limit: 320mm
PSU Length Limit: 160mm
Cable Management: 20mm

Product Dimensions ( L x W x H )
400mm x 225mm x 431mm

Packaging Dimensions ( L x W x H )
470mm x 288mm x 470mm

Weight
Net: 6.2KG
Gross: 7.3KG

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
