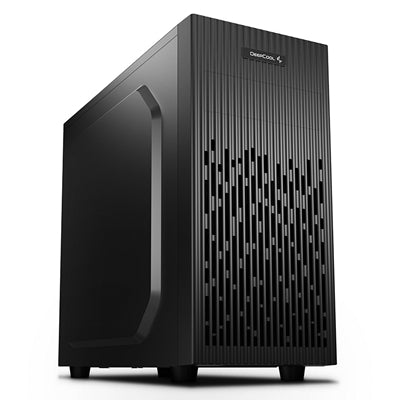

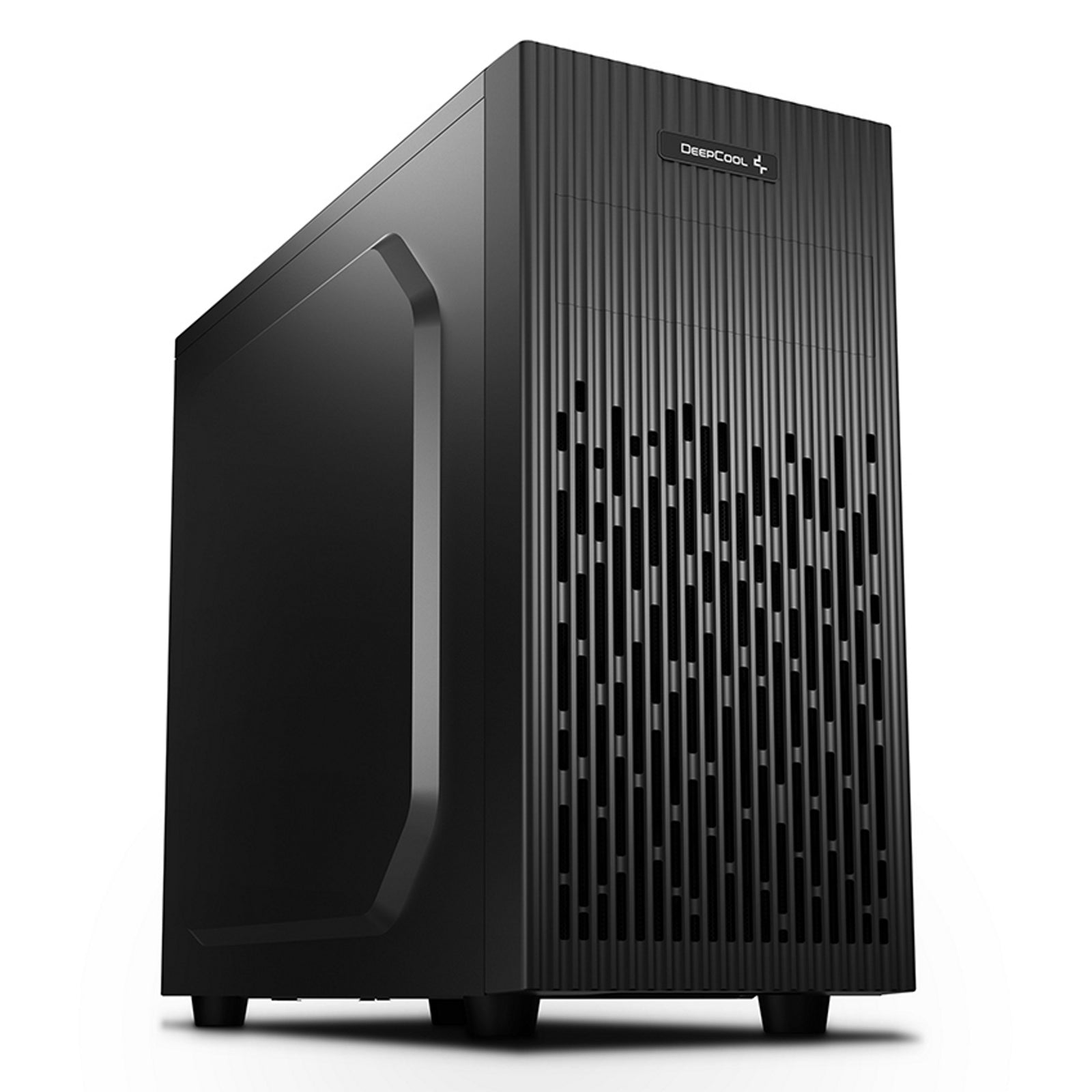

DeepCool MATREXX 30 SI - Compact Micro ATX Case

The DeepCool MATREXX 30 SI is a compact Micro ATX mini tower case designed for small form factor builds without compromising performance. Measuring 405.8 x 193 x 378.2mm, this case delivers efficient cooling and component compatibility in a space-saving design.

Steel Construction & Design

Built with SPCC steel panels (0.5mm thickness) and ABS components, the MATREXX 30 SI features a classical steel side panel that provides durability and a minimalist aesthetic. The black finish offers a professional appearance suitable for both home and business environments.

Cooling Performance

The honeycomb front air intake design optimizes airflow while the pre-installed 120mm black rear fan ensures consistent ventilation. The case supports an additional 120mm fan or radiator at the front, with rear compatibility for 120mm liquid cooling solutions. The lower power supply design maintains unhindered airflow for effective heat dissipation.

Component Compatibility

Compatible with Micro ATX and Mini-ITX motherboards, the MATREXX 30 SI accommodates graphics cards up to 250mm in length, CPU coolers up to 151mm in height, and ATX PS2 power supplies up to 170mm. The case includes 3 internal 3.5" drive bays, 2 internal 2.5" bays, and 1 external 5.25" bay, with 4 expansion slots available.

Connectivity & Cable Management

The top-mounted I/O panel provides convenient access to 1x USB 3.0 port, 1x USB 2.0 port, audio jack, microphone jack, and power switch. The rear panel ridge provides 14.8mm of cable management space, allowing for organized routing and improved internal airflow.

Technical Specifications

Form Factor: Mini Tower
Motherboard Support: Micro ATX, Mini-ITX
Materials: ABS + SPCC (0.5mm steel)
Colour: Black
Power Supply: ATX PS2
Expansion Slots: 4
Weight: 3.62 Kg (Net), 4.33 Kg (Gross)

Drive Bays:
Internal 3.5": 3
Internal 2.5": 2
External 5.25": 1 (Not compatible with 244mm x 244mm or larger Micro-ATX motherboards)

I/O Panel:
1 x USB 2.0
1 x USB 3.0
1 x Audio
1 x Mic

Cooling Fans Compatibility:
Front: 1 x 120mm
Rear: 1 x 120mm (1 x 120mm black fan installed)

Liquid Cooler Compatibility:
Rear: 120mm

Clearances:
CPU Cooler Height Limit: 151mm Max
VGA Length Limit: 250mm Max
PSU Length Limit: 170mm Max
Cable Management: 14.8mm

Product Dimensions ( L x W x H ):
405.8 x 193 x 378.2 mm

Packaging Dimensions ( L x W x H ):
415 x 240 x 465 mm

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 1
• Side Panel: Solid
