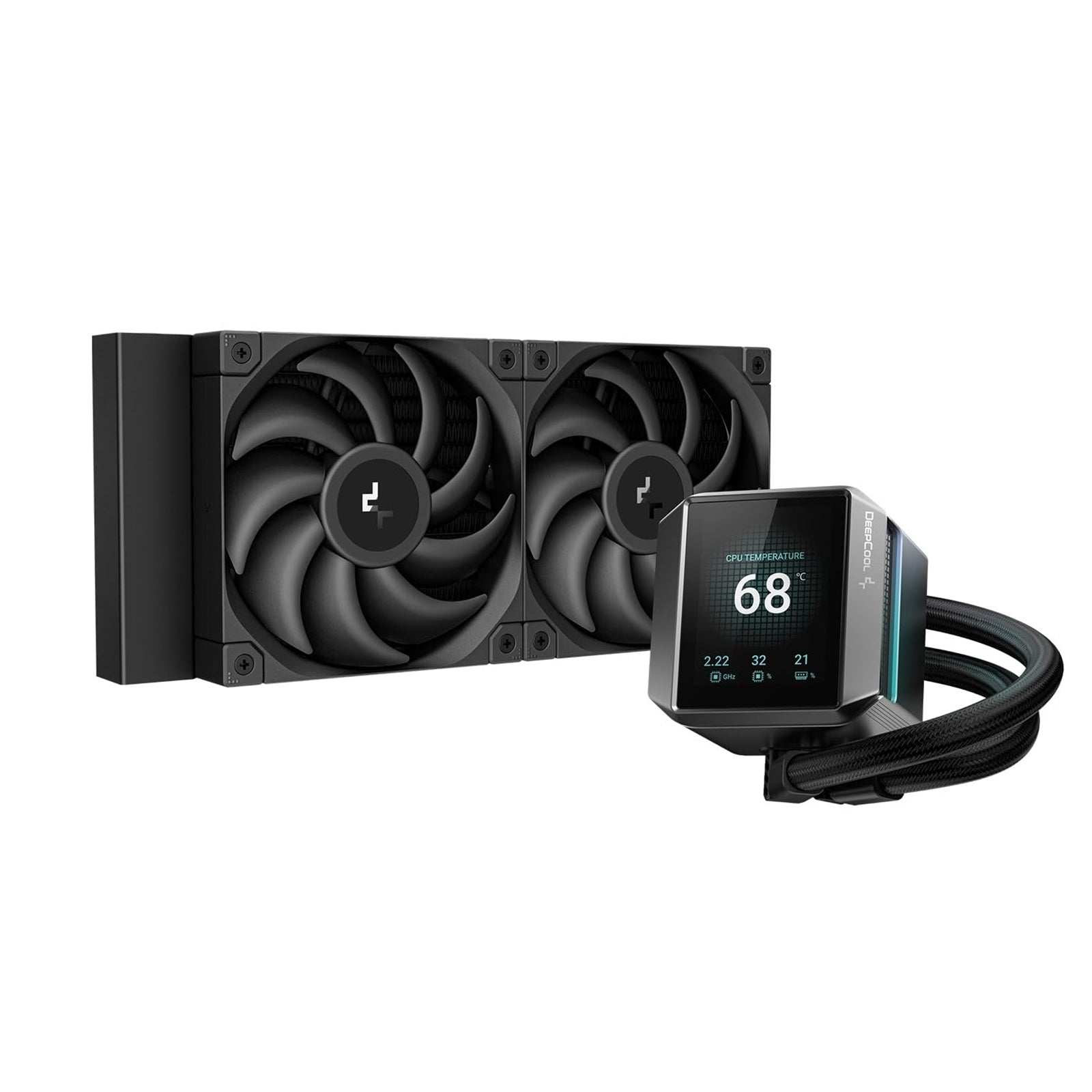

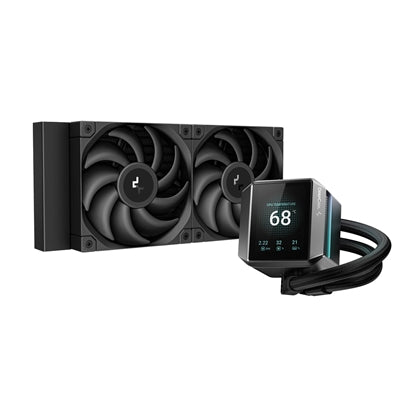

DeepCool Mystique 240 AIO Liquid CPU Cooler with Customizable LCD Display

The DeepCool Mystique 240 combines advanced liquid cooling technology with personalized visual customization through its integrated 2.8" TFT LCD screen. This all-in-one liquid cooler delivers exceptional thermal performance for modern Intel and AMD processors while allowing users to display custom images, animated GIFs, and real-time system statistics.

2.8" TFT LCD Screen with 640x480 Resolution

The Mystique 240 features a large 2.8" TFT display with 640x480 pixel resolution and 16.7 million color support. Built-in gyroscopic sensors automatically adjust screen orientation regardless of pump mounting position. Users can customize the display through DeepCool's DeepCreative software to show personalized content, system monitoring data, or animated graphics.

5th Generation High-Performance Pump

DeepCool's optimized 5th generation water pump utilizes a 3-phase, 6-slot, 4-pole motor design that reaches speeds up to 3400 RPM while maintaining noise levels under 21 dB(A). The redesigned coldplate features 0.1mm intensive flow channels positioned over CPU hotspots with a precision liquid splitter for efficient heat transfer. This pump architecture delivers superior cooling performance for power-hungry processors.

FT12 SE PWM Fans

Two high-performance FT12 SE fans constructed from durable PBT material provide excellent static pressure and airflow. These 120mm fans operate between 500-2150 RPM with PWM control, generating up to 72.45 CFM while utilizing fluid dynamic bearings for reliable long-term operation. The 3-phase 6-slot 4-pole motor design ensures smooth, efficient performance.

DeepCreative Control Software

The comprehensive DeepCreative application provides full control over the Mystique 240's features. Monitor real-time system statistics, customize the LCD display content, sync addressable RGB lighting with motherboard controllers, and configure thermal color warning systems. Regular software updates continue to expand functionality.

Anti-Leak Technology and Durable Construction

DeepCool's patented Anti-Leak Technology includes an internal valve that regulates pressure and purges excess when internal pressure exceeds atmospheric levels. The 282mm aluminum radiator with 410mm tubing provides flexible installation options while maintaining system integrity.

Universal Socket Compatibility

Included mounting hardware supports Intel LGA1851/1700/1200/1151/1150/1155 and AMD AM5/AM4 platforms. The installation system ensures proper contact pressure and equal distribution across the CPU for optimal thermal transfer.

Technical Specifications

• Radiator: 282 x 120 x 27mm aluminum construction
• Pump: 93 x 77 x 66mm, 3400 RPM, 4.2W power consumption
• Fans: 120 x 120 x 25mm, 500-2150 RPM PWM, 72.45 CFM
• Display: 2.83" TFT LCD, 480 x 640 resolution
• Lighting: Addressable RGB (3-pin 5V connector)
• Warranty: 5 years

The DeepCool Mystique 240 provides comprehensive cooling performance with unique visual customization capabilities, making it an ideal choice for enthusiasts building systems that demand both thermal efficiency and personalized aesthetics.
