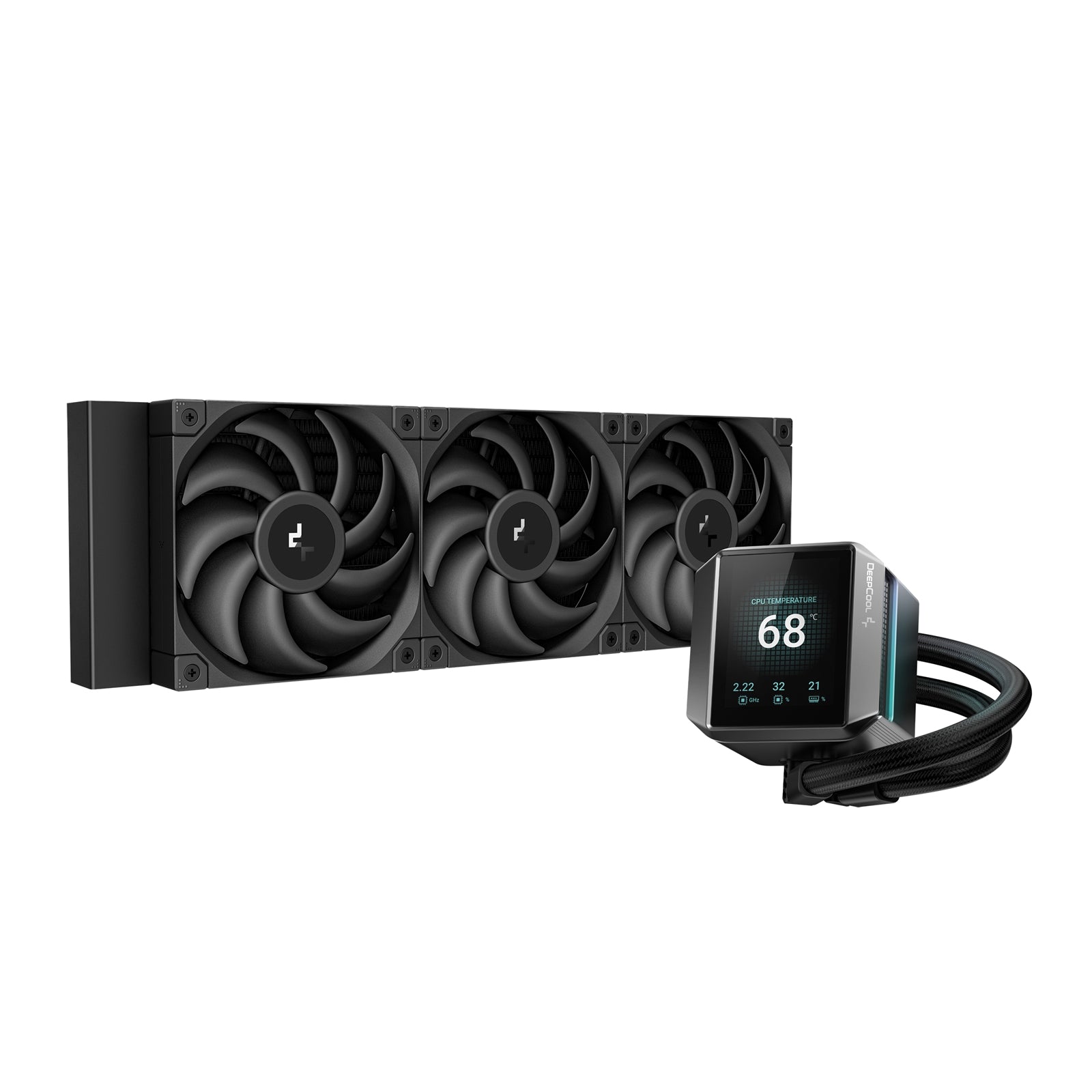

DeepCool Mystique 360 Liquid CPU Cooler with Customizable LCD Display

The DeepCool Mystique 360 combines advanced cooling technology with personalization through its integrated 2.8" TFT LCD screen. Display custom images, animated GIFs, and system information on the sharp 640x480 pixel resolution screen with 16.7M color support. Built-in gyroscopic sensors automatically adjust screen orientation for optimal viewing.

5th Generation High-Performance Pump

The Mystique 360 features DeepCool's optimized 5th generation water pump with a 3-phase, 6-slot, 4-pole motor design. The pump reaches speeds up to 3400 RPM while maintaining whisper-quiet operation at just 21 dB(A). This efficient motor design delivers superior cooling performance for modern high-TDP processors.

Redesigned Coldplate and Flow Channels

The optimized coldplate features 0.1mm intensive flow channels strategically positioned over CPU hotspots. A precise liquid splitter ensures efficient coolant flow for maximum heat transfer from your processor to the 360mm aluminum radiator.

FT12 SE PWM Fans Included

Three high-performance FT12 SE PWM fans come standard with the Mystique 360. Constructed from durable PBT material, these 120mm fans deliver 72.45 CFM airflow with speeds ranging from 500-2150 RPM. Fluid Dynamic Bearings (FDB) ensure long-term reliability and smooth operation. The 3-phase 6-slot 4-pole motor design provides consistent performance at noise levels up to 36.49 dB(A).

Anti-Leak Technology

DeepCool's patented Anti-Leak Technology includes an internal pressure-regulating valve that purges excess pressure when it exceeds atmospheric levels. This engineering feature extends the cooler's lifespan and minimizes leak risks.

Universal Compatibility

The Mystique 360 supports Intel LGA1700, 1200, 1151, 1150, 1155, and 1851 sockets, plus AMD AM5 and AM4 platforms. The included mounting hardware ensures straightforward installation with proper contact pressure on both Intel and AMD CPUs.

Technical Specifications

Radiator: 402 x 120 x 27mm aluminum construction
Pump: 3400 RPM ±10%, 21 dB(A), 4.2W power consumption
Fans: 120x120x25mm, 500-2150 RPM, 72.45 CFM, FDB bearings
Tube Length: 410mm
RGB: Addressable RGB LED with 3-pin connector
Display: 2.83" TFT LCD, 480x640 resolution
Warranty: 5 years

MYSTIQUE 360
The MYSTIQUE series is DeepCool's new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.

MYSTIQUE 360
Visualizing Your Imagination

MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 utilizes built-in gyroscopic sensors

5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 360 brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

NEW HIGH PERFORMANCE FT12 SE FANS
The MYSTIQUE 360 will include three high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.

ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 to the latest mainstream CPUs is included in the box, so you are ready to go.

Specification

Application
Intel
LGA1700/1200/1151/1150/1155/1851
AMD
AM5/AM4

Radiator Dimensions
402 x 120 x 27 mm (L x W x H)

Radiator Material
Aluminum

Tube length
410 mm

Pump Dimensions
93 x 77 x 66 mm (L x W x H)

Pump Speed
3400 RPM±10%<

Pump Noise
21 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.35 A

Pump Power Consumption
4.2 W

Fan Dimensions
120 x 120 x 25 mm (L x W x H)

Fan Speed
500~2150 RPM±10%

Fan Airflow
72.45 CFM

Fan Noise
=36.49 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.3 A

Fan Power Consumption
3.6 W

LED Type
Addressable RGB LED

LED Connector
3-pin(+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.45 W(PUMP)

Display Specifications
2.83 inch 480 x 640 TFT LCD

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2150RPM
• Radiator Size: 360mm
• LED Colour: None
