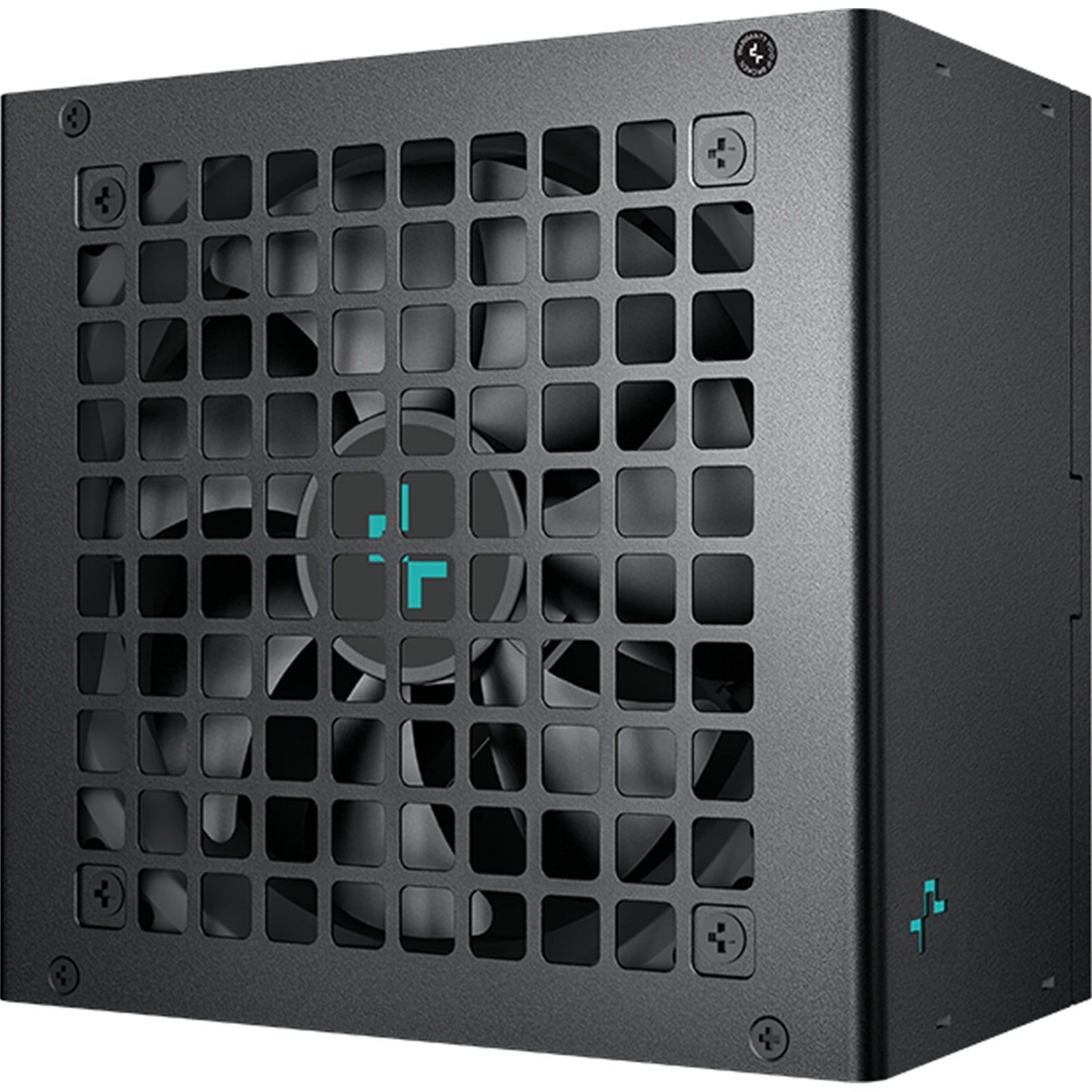

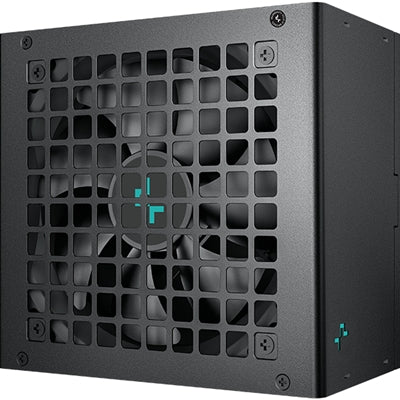

DeepCool PL750D 750W Power Supply - ATX 3.1 with PCIe 5.0 Support

The DeepCool PL750D delivers 750 watts of reliable power for modern PC builds requiring ATX12V V3.1 compliance. This non-modular power supply unit features 80 PLUS Bronze certification, ensuring at least 85% energy efficiency under typical loads while reducing electricity costs and heat output.

Next-Generation GPU Compatibility

Equipped with a 16-pin (12+4) 12VHPWR connector using 16AWG cabling, the PL750D supports PCIe 5.0 graphics cards with high power demands. The unit includes 3 x 6+2 pin PCIe connectors for multi-GPU configurations or legacy graphics cards, alongside 2 x 4+4 pin ATX12V connectors for CPU power delivery.

Cooling and Build Quality

A 120mm hydro bearing fan provides efficient cooling while maintaining low noise levels during operation. The active PFC topology with DC to DC conversion ensures stable power delivery across all voltage rails. Chinese electrolytic capacitors deliver durability with a rated MTBF of 100,000 hours.

Comprehensive Protection Features

The PL750D incorporates multiple safety mechanisms: Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), and Surge & Inrush Protection (SIP). These protections safeguard your components during power fluctuations or system faults.

Extensive Connectivity Options

With 8 SATA power connectors and 2 x 4-pin Molex connectors, the PL750D accommodates multiple storage drives and peripherals. The 1 x 20+4 pin ATX motherboard connector ensures compatibility with standard ATX builds. Compact dimensions of 150mm x 140mm x 86mm fit most PC cases without clearance issues.

Technical Specifications

Form Factor: ATX12V V3.1
Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
Efficiency Certification: 80 PLUS Bronze
Fan Size: 120 mm
Fan Bearing: Hydro Bearing
Topology: Active PFC + DC to DC
Capacitors: Chinese Electrolytic Capacitors
Hold-Up Time: ≥16 ms
Efficiency: ≥85% under typical load (50% loading)
Operating Temperature: 0°C to 40°C
MTBF: 100,000 hours

Regulatory Certifications and Warranty

The PL750D meets international safety standards with CE, FCC, CCC, RCM, EAC, BIS, and TUV-RH certifications. Environmental compliance includes WEEE and RoHS standards. Backed by a 5-year limited warranty, this power supply provides long-term reliability for both legacy and next-generation PC builds.

• Wattage: 750W
• Size/Version: ATX 3.1
• Modular: No
• SATA Connections: 8
• Certification: Bronze
• Colour: Black
