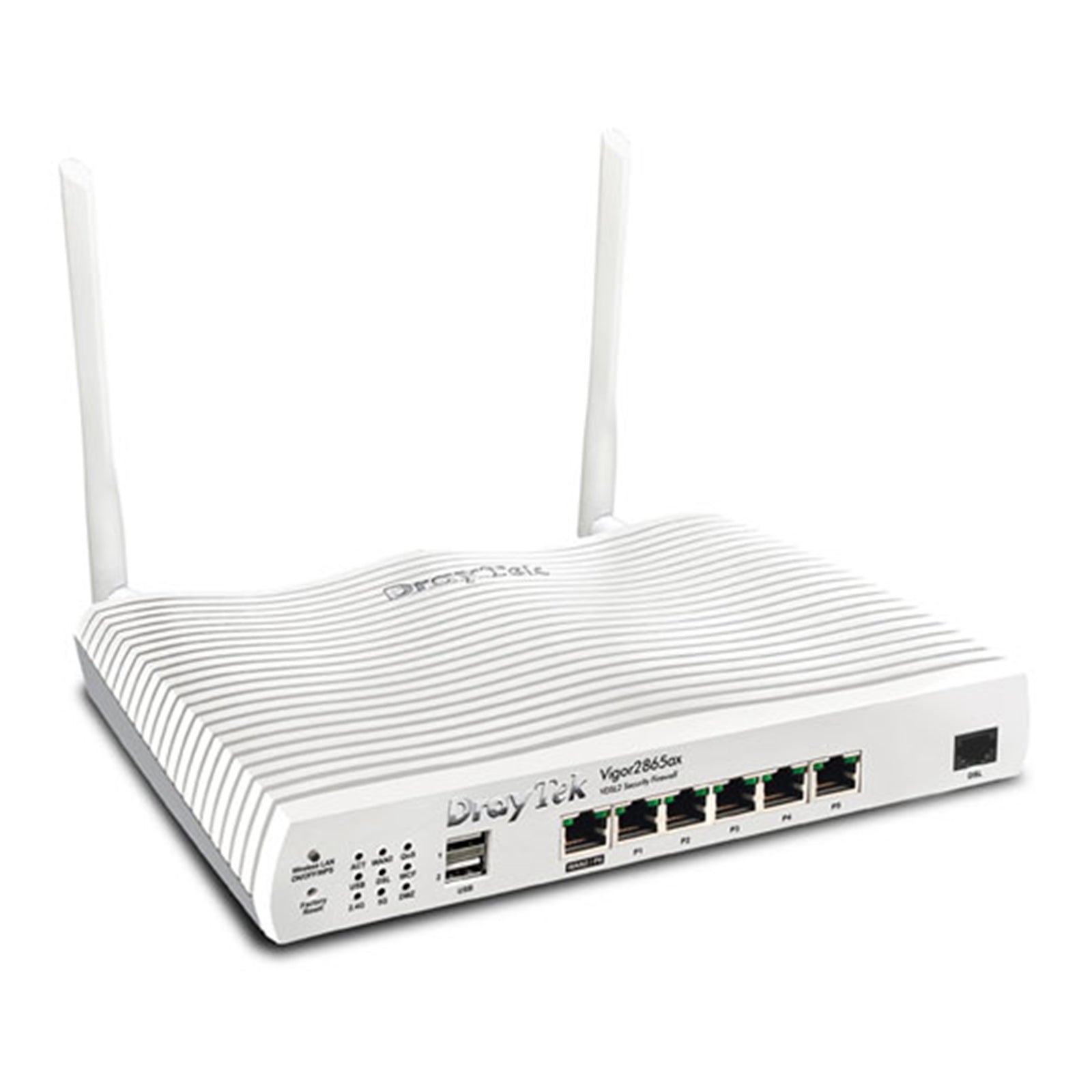

DrayTek Vigor 2865ax WiFi 6 Multi-WAN VPN Router with VDSL Modem

The Vigor 2865ax combines enterprise-grade networking with WiFi 6 AX3000 wireless technology, delivering 950Mbps hardware-accelerated throughput per WAN. This dual-WAN router features an integrated VDSL modem for Superfast Fibre connections and Ethernet WAN ports for Cable, FTTP, and Gigabit Internet services.

WiFi 6 AX3000 Wireless Performance

802.11ax technology with OFDMA enables simultaneous transmission to multiple devices by splitting wireless frequency into blocks. The router efficiently allocates bandwidth based on application requirements—more for video streaming, less for VoIP calls—serving more wireless clients with reduced latency. The wireless can also connect to external networks for backup Internet access via mobile hotspots or neighboring networks.

Enterprise VPN Capabilities

Supports 50 concurrent VPN tunnels with 300 Mbps standard IPsec throughput. Hardware acceleration boosts performance to 800 Mbps for 16 tunnels. Compatible with IPsec IKEv1/IKEv2 (EAP and XAuth), SSL VPN, L2TP, and OpenVPN protocols. Features mOTP 2-factor authentication and integration with Active Directory (LDAP), RADIUS, or TACACS+ servers. VPN Matcher service enables connections from behind NAT and Carrier-Grade NAT environments.

Load Balancing and Failover

Dual-WAN configuration with load balancing and automatic failover ensures continuous connectivity. Hardware Acceleration maintains full feature functionality at Gigabit speeds. High Availability mode with Config Sync allows primary and secondary router deployment for zero-downtime failover.

Mesh Wireless System

Functions as Mesh Root for DrayTek's wireless mesh network, managing VigorAPs without network cabling. VLANs bridge across mesh connections, supporting multiple SSIDs and network segments. Central AP Management provides auto-provisioning for new VigorAPs.

Network Segmentation and Security

6 Gigabit LAN ports (5 dedicated LAN + 1 flexible LAN/WAN) with 802.1Q VLAN tagging support. Manages up to 8 separate networks with individual firewall rules, content filtering, QoS, and route policies. Dual-Stack IPv4/IPv6 firewall with DoS protection and object-based rule creation. DNS-based content filtering blocks HTTPS/SSL encrypted URLs. Optional GlobalView subscription for category-based blocking with 30-day trial included.

Guest Network Management

Hotspot Web Portal with customizable captive portal for guest wireless and LAN interfaces. Supports Google/Facebook authentication or external RADIUS services like Purple WiFi. Generates vouchers with time and bandwidth limits.

Quality of Service and Bandwidth Control

App QoS prioritizes applications like Zoom and Skype across 4 separate queues. Supports 802.1p and DSCP packet tagging. Auto Voice VLAN automatically prioritizes VoIP traffic. Set speed limits per client, IP group, or subnet.

Central Management

Compatible with VigorACS platform for centralized management of routers, access points, and switches. Features automated firmware updates, VPN management, and connectivity alarms. Includes free DrayDDNS hostname service for remote access.

• Category: Wireless Router
• Speed: Gigabit
• POE Enabled: No
