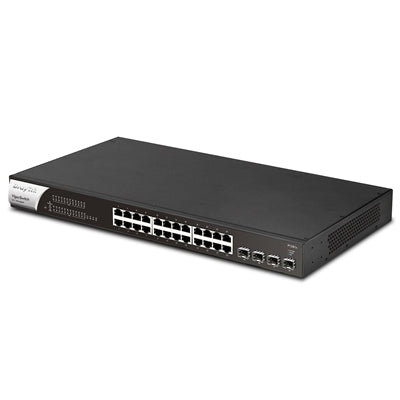

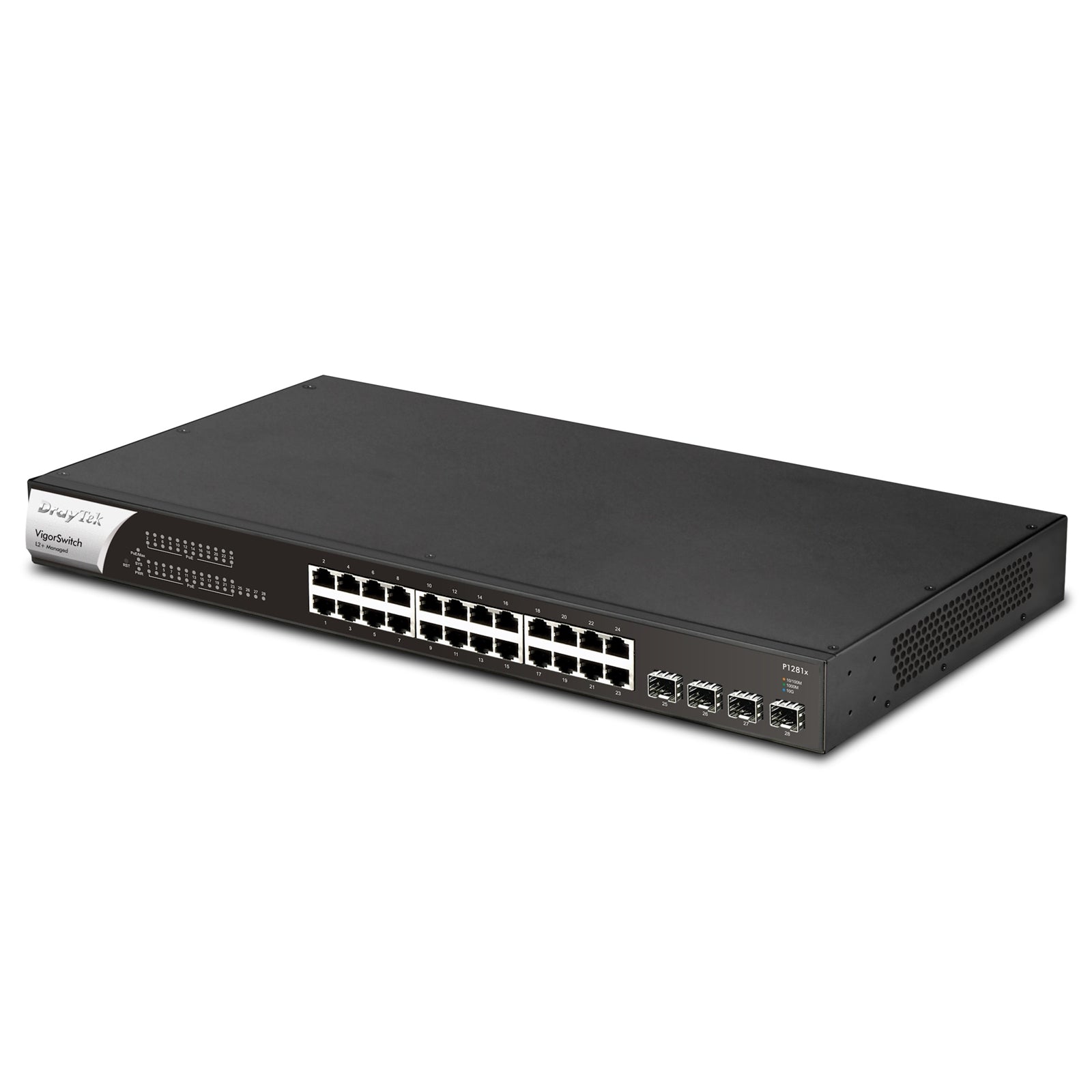

DrayTek VigorSwitch P1281x - Professional 24-Port PoE+ Managed Switch

The VigorSwitch P1281x delivers enterprise-grade network performance with 24 Gigabit PoE+ ports and 4 independent 10GbE SFP+ interfaces. With 140W total PoE budget and up to 30W per port, this smart managed switch powers IP cameras, wireless access points, and VoIP phones while maintaining high-speed connectivity.

High-Speed Connectivity and Power Delivery

Each of the 24 RJ-45 ports supports 10/100/1000Mbps with IEEE 802.3af/at PoE+ compliance. The 4 SFP+ ports provide 10Gbps uplinks for servers, network storage, and switch stacking. With 56 Gbps switching capacity and 41.7 Mpps forwarding rate, the P1281x handles demanding network traffic efficiently.

Centralized Management Options

Deploy and monitor the VigorSwitch P1281x through VigorACS cloud management, VigorConnect single-site platform, or DrayTek Vigor router's Central Switch Management. Clone configurations across multiple switches and provision VLANs remotely, reducing deployment time for complex networks.

Advanced VLAN and Security Features

Configure up to 512 VLANs with 802.1q tag-based, port-based, and MAC-based options. Voice VLAN and Surveillance VLAN with OUI mode automatically segment traffic. Security features include IP Source Guard with ARP inspection, 512 ACL entries, DoS attack protection, and loop detection.

ONVIF IP Camera Management

Built-in ONVIF surveillance management discovers IP cameras, displays topology, streams real-time video, and monitors device health. Configure network settings, schedule reboots, and receive mail alerts when cameras disconnect. PoE PD monitoring restarts unresponsive cameras automatically.

Quality of Service and Traffic Control

Eight priority queues with 802.1p CoS, DSCP, and IP Precedence ToS ensure critical traffic receives priority. Port-based rate control manages ingress and egress bandwidth. IGMP v2/v3 snooping and querying optimize multicast traffic for video streaming and conferencing.

Link Aggregation and Redundancy

Create up to 8 aggregation groups with 8 ports each using LACP or static configuration. Spanning Tree Protocol (STP) and Rapid Spanning Tree (RSTP) prevent network loops. Port mirroring enables traffic analysis and troubleshooting.

Technical Specifications

The passively cooled 1U rackmount switch measures 440 x 216 x 44mm and weighs 3.25kg. Internal power supply handles 100-240VAC with 200W maximum consumption. Operates from 0°C to 50°C with IPv4 and IPv6 dual-stack support. Includes 2-year RTB warranty with 3 years of security updates post-EOL.

Category: Switch
Speed: Gigabit
POE Enabled: Yes
