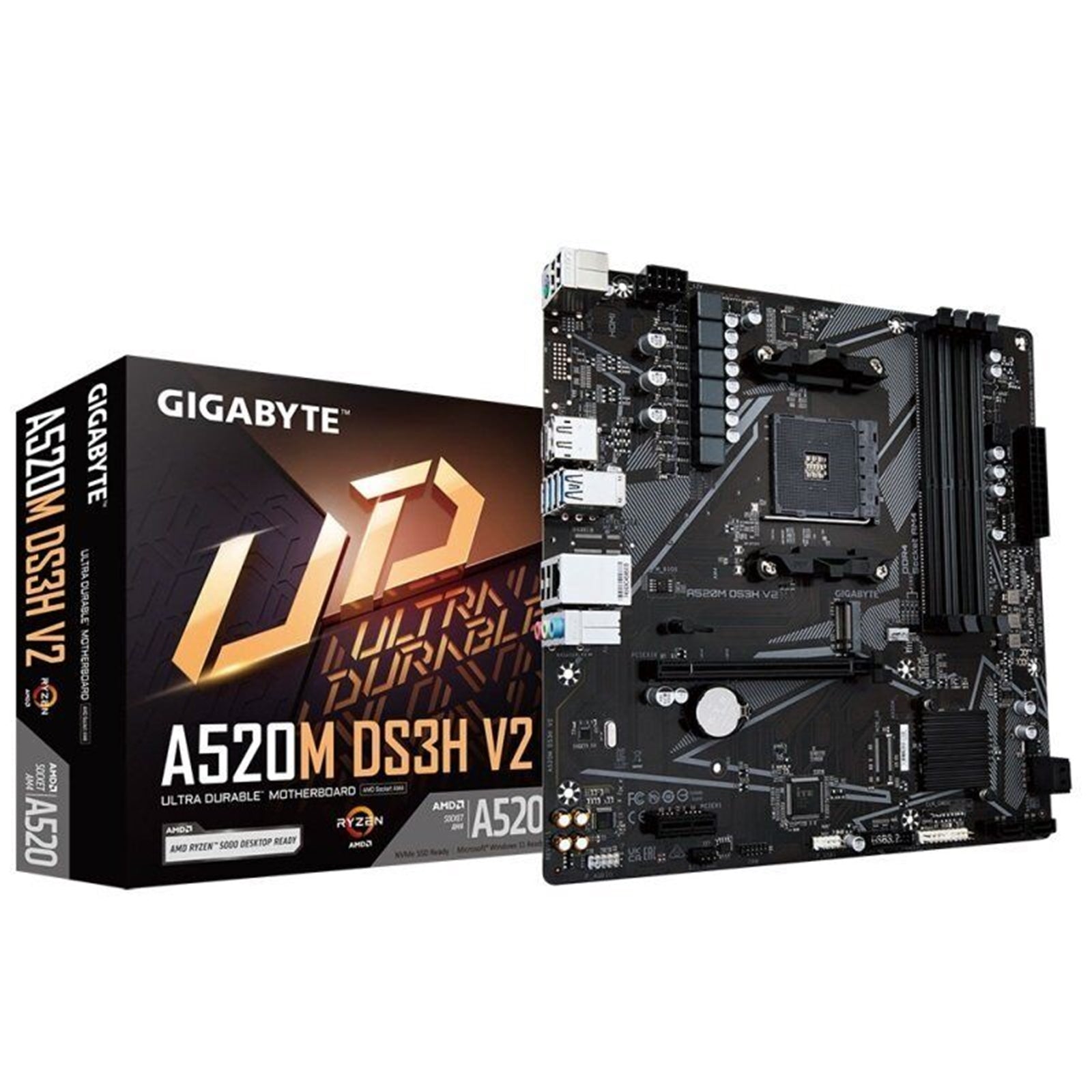

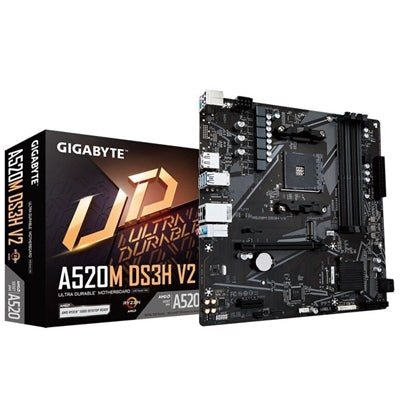

Gigabyte A520M DS3H V2 AMD Motherboard

The Gigabyte A520M DS3H V2 is an Ultra Durable Micro-ATX motherboard designed for AMD Ryzen processors on the AM4 socket. Built on the AMD A520 chipset, this motherboard delivers reliable performance for mainstream PC builds with essential features and robust construction.

AMD Ryzen Processor Compatibility

Compatible with AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000, and Ryzen 3000 G-Series processors. The digital VRM solution with Low RDS(on) MOSFETs ensures precise power delivery to your CPU while minimizing heat generation and energy waste.

Memory and Storage

Equipped with 4 DDR4 DIMM slots supporting up to 128GB of system memory with speeds up to 4733MHz (O.C.) in dual-channel configuration. The board includes 1x M.2 Socket 3 connector supporting both NVMe PCIe 3.0 x4 and SATA SSDs in 2280 form factor, plus 4x SATA 6Gb/s connectors with RAID 0, 1, and 10 support.

Display and Connectivity

Features integrated graphics support with 1x DisplayPort 1.4 (up to 5120x2880@60Hz) and 1x HDMI 2.1 port (up to 4096x2160@60Hz), both supporting HDCP 2.3 and HDR. The Realtek GbE LAN chip includes bandwidth management for optimized network performance. USB connectivity includes 4x USB 3.2 Gen 1 ports on the rear panel with additional ports available through internal headers.

Cooling and Audio

Smart Fan 5 technology with FAN STOP capability allows complete customization of fan curves based on multiple temperature sensors. Hybrid fan headers automatically detect PWM or voltage mode devices. The Realtek Audio CODEC with high-end audio capacitors and Audio Noise Guard delivers clear sound for 2/4/5.1/7.1-channel configurations.

Ultra Durable Design

Built with Anti-Sulfur Resistors, humidity-resistant Glass Fabric PCB, and enhanced ESD protection. Solid plated ATX 8-pin power connectors ensure stable power delivery during high loads. The board supports Windows 11 and Windows 10 64-bit operating systems.

Expansion and Form Factor

Includes 1x PCIe 3.0 x16 slot and 1x PCIe 3.0 x1 slot for expansion cards. The Micro-ATX form factor (24.4cm x 24.4cm) fits standard cases while maintaining compatibility with essential PC components. UEFI BIOS with Q-Flash support enables easy updates and system configuration.

Specifications:

• Socket: AM4
• CPU Compatibility: AMD Ryzen
• Chipset: AMD A520
• Form Factor: Micro ATX
• Memory Slots: DDR4 - 4 Slots
• M.2 Compatibility: NVMe / SATA
• USB C: No
