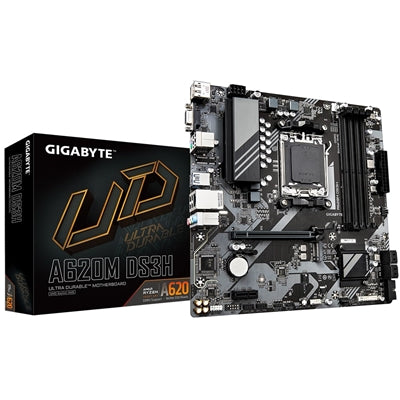

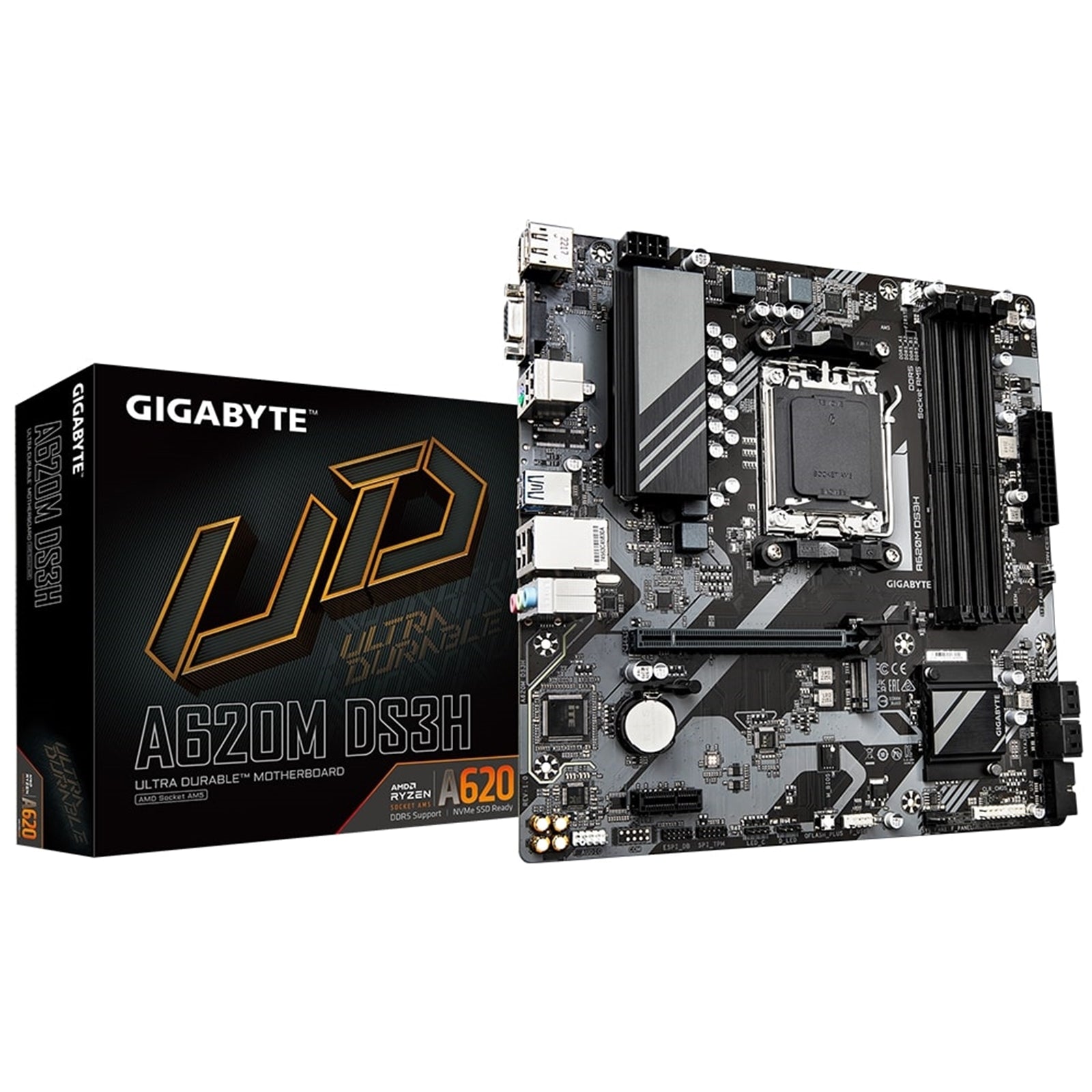

Gigabyte A620M DS3H AM5 Micro-ATX Motherboard

The Gigabyte A620M DS3H delivers reliable performance for AMD Ryzen 7000, 8000, and 9000 series processors. This Micro-ATX motherboard features the AMD A620 chipset, providing essential connectivity and expansion options for budget-conscious PC builders.

DDR5 Memory Support

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 7600 MT/s through AMD EXPO and Intel XMP overclocking profiles. The dual-channel architecture ensures efficient memory performance for gaming and productivity applications.

Digital VRM Design

The 5+2+2 phases digital VRM solution with low RDS(on) MOSFETs provides stable power delivery to your AMD processor. This configuration ensures consistent performance during demanding workloads while maintaining thermal efficiency.

Storage and Expansion

The PCIe 4.0 x4 M.2 socket delivers high-speed storage connectivity for NVMe SSDs, with support for 2280 and 2580 form factors. Four SATA 6Gb/s connectors provide additional storage options. The EZ-Latch design on the PCIe x16 slot simplifies graphics card installation and removal.

Display Connectivity

Three display outputs accommodate various monitor configurations: DisplayPort supports 4K at 144Hz, HDMI handles 4K at 60Hz, and D-Sub provides legacy display compatibility at 1920x1200. This flexibility allows connection to modern and older displays simultaneously.

Smart Fan 6 Technology

Advanced fan control features include support for PWM and DC fans with up to 24W per header. Seven-point fan curves, slope/stair dual modes, and fan stop functionality provide precise thermal management. Temperature sensors across the board enable responsive cooling based on system conditions.

Q-Flash Plus

Update the BIOS without installing CPU, memory, or graphics card. Simply save the renamed BIOS file to a USB drive, connect power to the motherboard, and press the Q-Flash Plus button for automatic BIOS updates.

Connectivity Options

USB Type-C port with USB 3.2 Gen 1 support on the rear panel provides modern device connectivity. Gigabit Ethernet with bandwidth management ensures low-latency network performance. Realtek audio codec supports up to 7.1-channel audio output.

Specifications Summary

• Socket: AM5
• CPU Compatibility: AMD Ryzen 7000/8000/9000 Series
• Chipset: AMD A620
• Form Factor: Micro ATX (24.4cm x 24.4cm)
• Memory Slots: 4x DDR5 (up to 256GB, 7600 MT/s OC)
• Storage: 1x M.2 PCIe 4.0, 4x SATA 6Gb/s
• USB: 1x USB-C, 1x USB 3.2 Gen 1, 7x USB 2.0
• Display: HDMI, DisplayPort, D-Sub
• Network: Realtek GbE LAN
• Audio: Realtek HD Audio (7.1-channel)
