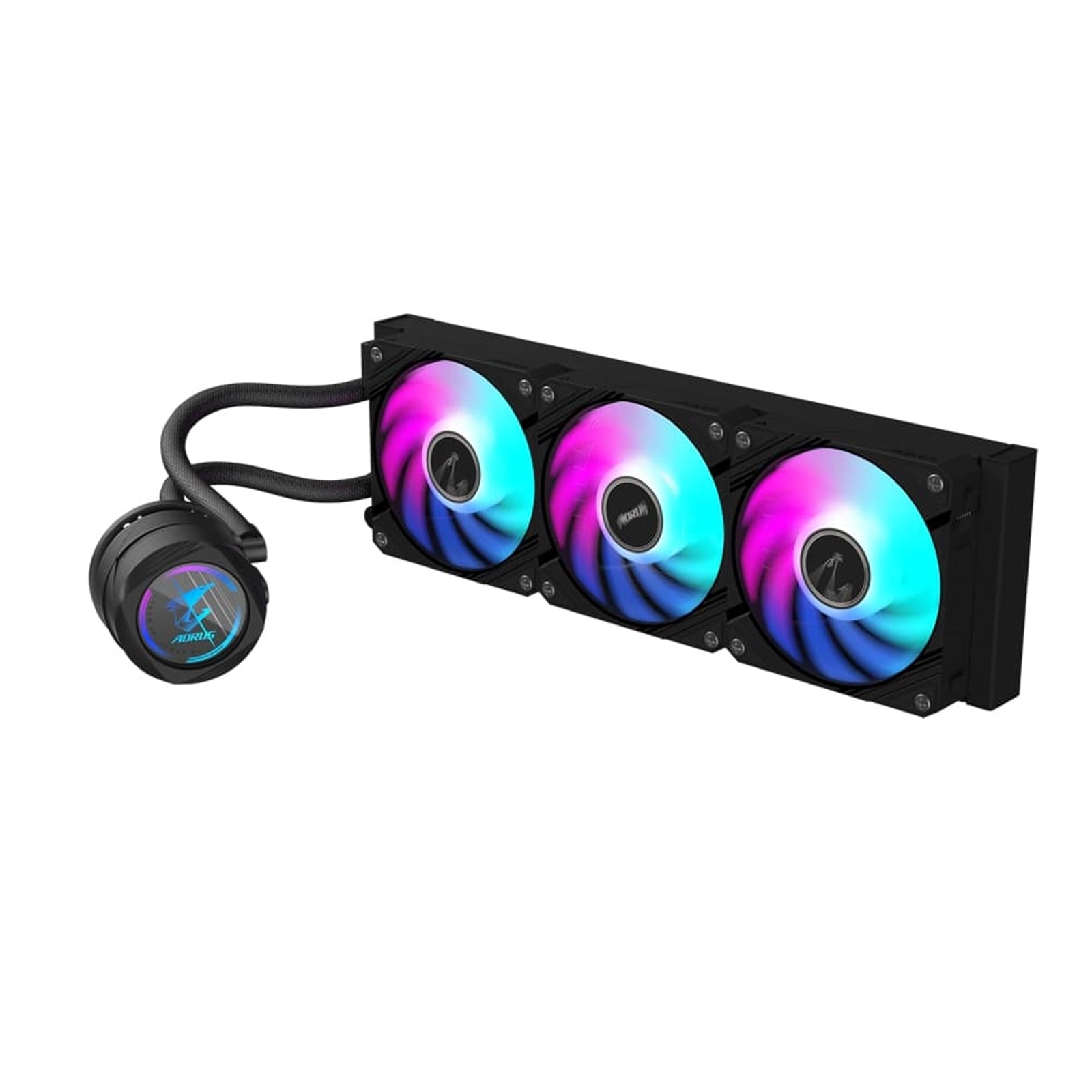

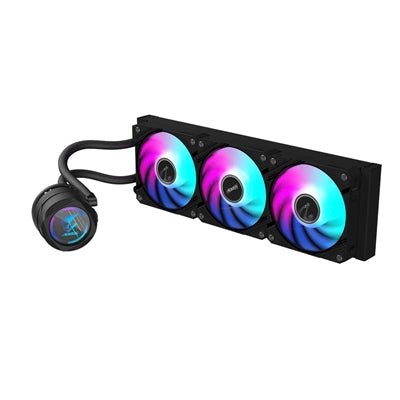

AORUS WATERFORCE II 360 AIO Liquid Cooler

The Gigabyte Aorus Waterforce II 360 delivers high-performance liquid cooling for demanding CPUs. This 360mm AIO cooler features three 120mm ARGB fans, a rotatable pump block, and compatibility with both Intel and AMD platforms.

Advanced Cooling Technology

Equipped with an enlarged heatsink and optimized airflow design, the Waterforce II 360 maintains optimal CPU temperatures during intensive gaming sessions and heavy workloads. The 394 x 119 x 27mm radiator provides substantial surface area for efficient heat dissipation, while the pump operates at 2300 RPM ± 10% with minimal noise at just 20 dBA.

High-Performance ARGB Fans

Three hydraulic bearing fans deliver 61 CFM airflow at speeds ranging from 650-2000 RPM. With a noise level between 6-30 dBA, these fans balance cooling power with quiet operation. Each fan features individually controlled addressable RGB LEDs with 16.7 million color options, compatible with Asus Aura Sync, MSI Mystic Light Sync, and ASRock Polychrome systems.

Rotatable Pump Block Design

The 330° rotatable pump block allows flexible installation and optimal tube routing in any PC case configuration. The ARGB lighting on the pump head synchronizes with your other RGB components through standard 3-pin connectors (5V DC, 1.60A).

Universal Socket Compatibility

Compatible with a wide range of Intel and AMD motherboard sockets, ensuring seamless integration with current and previous generation CPUs. The mounting system provides secure installation across multiple platforms.

Premium Construction

Built with high-quality materials for durability and longevity. The hydraulic bearing fans are rated for 150,000 hours MTTF, while the black radiator finish complements modern PC builds. Each fan connects via standard 4-pin PWM connectors (12V DC, 0.30A) for precise speed control.

Technical Specifications

Key Features
- Efficient Cooling Performance
- Stylish Aesthetic Design
- Advanced ARGB Lighting
- Quiet Operation
- Robust Compatibility
- Premium Build Quality

Model Number
AWF2-360

Pump Profile
ARGB Lighting

Pump Speed
2300 RPM ± 10%

Pump Noise Level
20 dBA

Fan Speed
650-2000 RPM ± 10%

Fan Airflow
61 CFM ± 10%

Fan Air Pressure
2.0 mmH2O ± 10%

Fan Noise Level
6 - 30 dBA

Radiator Dimensions (L x W x H)
394 x 119 x 27 mm

Fan Dimensions (L x W x H)
120 x 120 x 25 mm

Fan MTTF
150,000 Hours

Fan Bearing Type
Hydraulic Bearing

Fan Power Connector
4-Pin (PWM)

Fan Rated Voltage
12V DC

Fan Rated Current
0.30A

RGB Connector
3-Pin

RGB Rated Voltage
5V DC

RGB Rated Current
1.60A

Fan Power Consumption
3.6W

Fan Weight
3 x 200g

Series
Waterforce

Cooler Type
CPU Liquid Cooler

Fan LED Lighting
ARGB

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 2000RPM
• Radiator Size: 360mm
• LED Colour: ARGB
