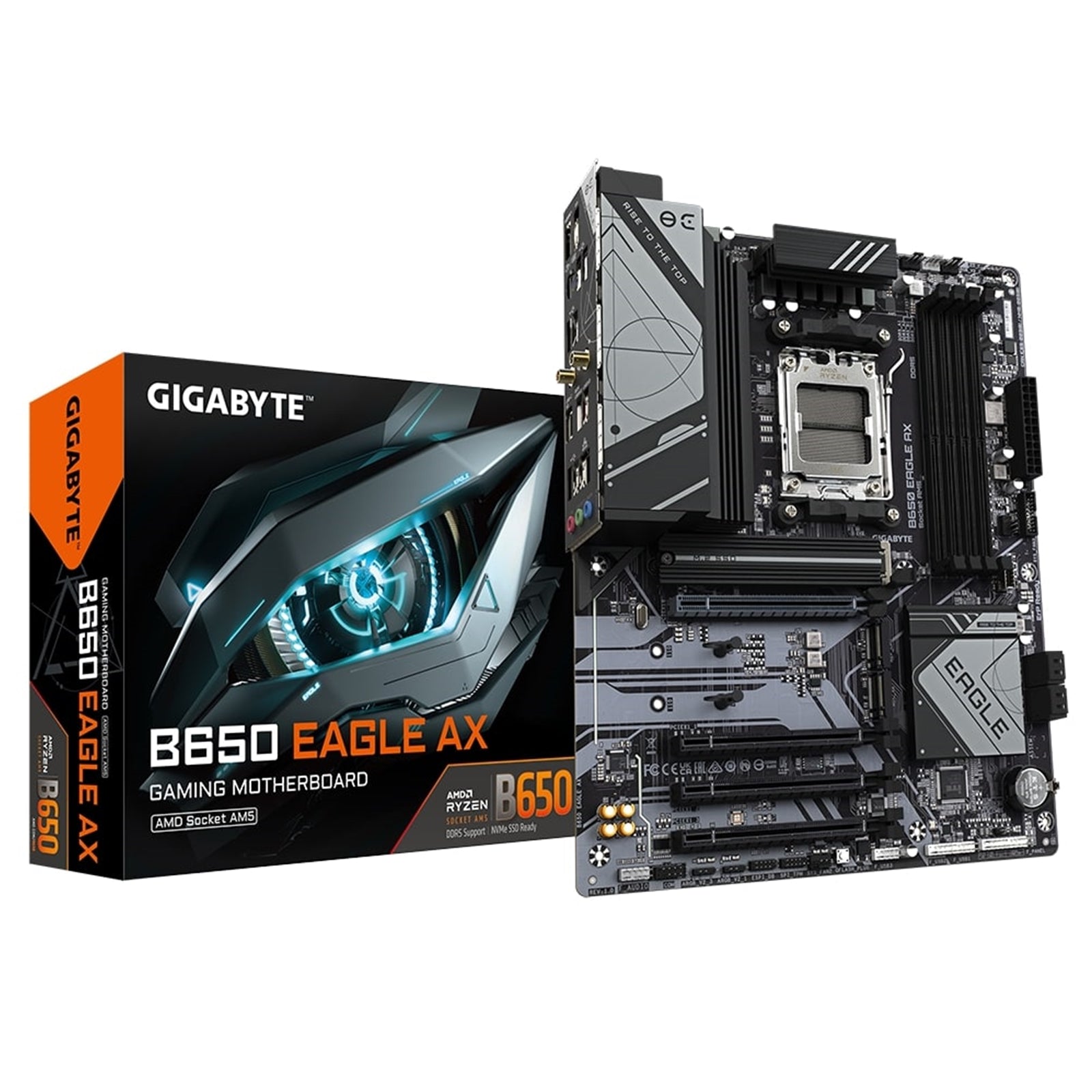

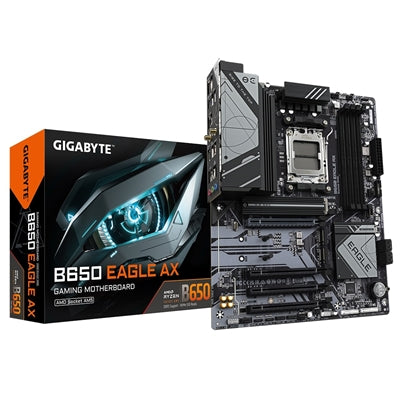

Gigabyte B650 EAGLE AX AMD AM5 Motherboard

The Gigabyte B650 EAGLE AX delivers robust performance for AMD Ryzen 7000 and 8000 series processors with its AM5 socket design. This ATX motherboard features a 12+2+2 phases digital VRM solution that ensures stable power delivery for demanding workloads and gaming sessions.

DDR5 Memory and Storage Performance

Equipped with 4 DDR5 DIMM slots supporting up to 192GB of memory at speeds reaching 7600 MT/s with AMD EXPO and Intel XMP profiles. The dual-channel architecture maximizes bandwidth for memory-intensive applications. Storage capabilities include one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots with M.2 Thermal Guard protection, plus four SATA 6Gb/s connectors for extensive storage expansion.

Advanced Connectivity

Wi-Fi 6E 802.11ax provides wireless speeds up to 2.4Gbps across the dedicated 6GHz band, while Bluetooth 5 offers 4X the range of BT 4.2. The Realtek GbE LAN with bandwidth management optimizes network latency for responsive gaming. Rear I/O includes DisplayPort supporting 3840x2160@144Hz, HDMI at 4096x2160@60Hz, USB 3.2 Gen 2 Type-A ports, and a USB Type-C port with USB 3.2 Gen 1 support.

Thermal Management and Cooling

The fully covered MOSFET heatsink maintains VRM temperatures under control during intensive operations. Smart Fan 6 technology features multiple temperature sensors and hybrid fan headers supporting up to 24W per header with over-current protection. The system supports PWM and DC fans with customizable fan curves, dual slope/stair modes, and fan stop functionality below specified temperatures.

User-Friendly Features

Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card—simply connect power, insert a USB drive with the BIOS file, and press the Q-Flash Plus button. The EZ-Latch quick-release design simplifies graphics card installation and removal from the PCIe x16 slot. High-end audio capacitors and Audio Noise Guard deliver clear sound reproduction with analog component separation at the PCB level.

Expansion and RGB Control

One PCIe 4.0 x16 slot (CPU-integrated) handles high-performance graphics cards, while three additional PCIe 3.0 x1 slots provide expansion options. RGB customization is available through three addressable RGB Gen2 LED strip headers and one standard RGB LED strip header, all manageable via Gigabyte Control Center software.

• Socket: AM5
• CPU Compatibility: AMD Ryzen 7000
• Chipset: AMD B650
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: NVMe
• USB C: Yes
