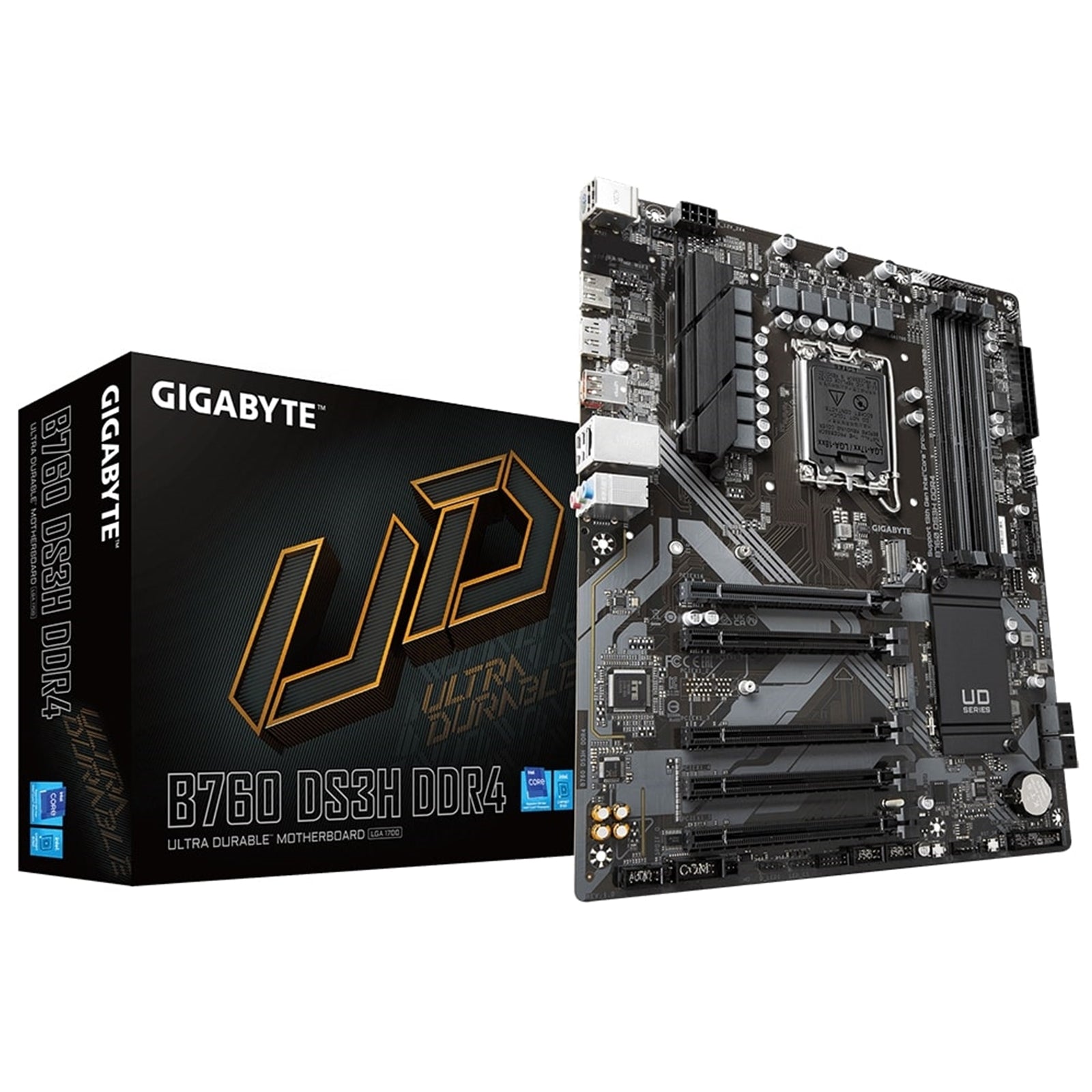

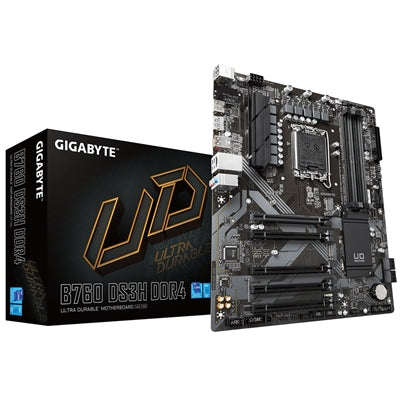

Gigabyte B760 DS3H DDR4 Motherboard - Intel LGA1700 Socket

The Gigabyte B760 DS3H DDR4 motherboard delivers reliable performance for Intel 12th, 13th, and 14th generation processors in an ATX form factor. Built on the Intel B760 Express chipset, this motherboard combines essential features with GIGABYTE's Ultra Durable design philosophy for stable, long-term operation.

Power Delivery and Performance

An 8+2+1 phases hybrid digital VRM design with low RDS(on) MOSFETs provides stable power delivery to LGA1700 socket processors. Premium chokes and capacitors improve transient response while minimizing oscillation. The shielded memory routing design places all memory traces under PCB inner layers, protected by a large ground layer to reduce external interference.

Memory and Storage Capabilities

Four DDR4 DIMM sockets support up to 128GB of system memory in dual-channel configuration, with speeds up to DDR4-5333 (OC). Storage options include two M.2 sockets with PCIe 4.0 x4 support for NVMe SSDs - one Socket 3 connector supporting 22110/2280 form factors, and another supporting 2280 drives. Four SATA 6Gb/s connectors provide additional storage capacity with RAID 0, 1, 5, and 10 support.

Expansion and Connectivity

The primary PCIe 4.0 x16 slot accommodates modern graphics cards with full bandwidth, while a secondary PCIe 3.0 x1 slot offers additional expansion capability. USB connectivity includes USB 3.2 Gen 2x2 Type-C delivering 20Gbps transfer speeds, plus USB 3.2 Gen 2 and Gen 1 ports. The rear I/O panel features HDMI and DisplayPort outputs supporting 4K resolution at 60Hz for integrated graphics.

Cooling and System Management

Smart Fan 6 technology provides comprehensive fan control with seven control points per curve, slope and stair graph modes, and manual input options. Five fan headers including dedicated CPU and pump headers enable flexible cooling configurations. The GIGABYTE Control Center (GCC) unified software platform manages all system functions through an intuitive interface.

Audio and Network Features

Realtek Audio CODEC with high-end audio capacitors delivers high-definition 7.1-channel audio with S/PDIF output support. Audio Noise Guard technology separates analog audio components from potential PCB-level noise pollution. Realtek GbE LAN with bandwidth management maintains low latency in crowded network environments.

User-Friendly Features

Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card. PCIe EZ-Latch simplifies graphics card removal. The multi-function reset button can be reconfigured in BIOS for RGB control, direct BIOS access, or safe mode booting. RGB Fusion 2.0 provides customizable lighting control across addressable and standard RGB headers.
