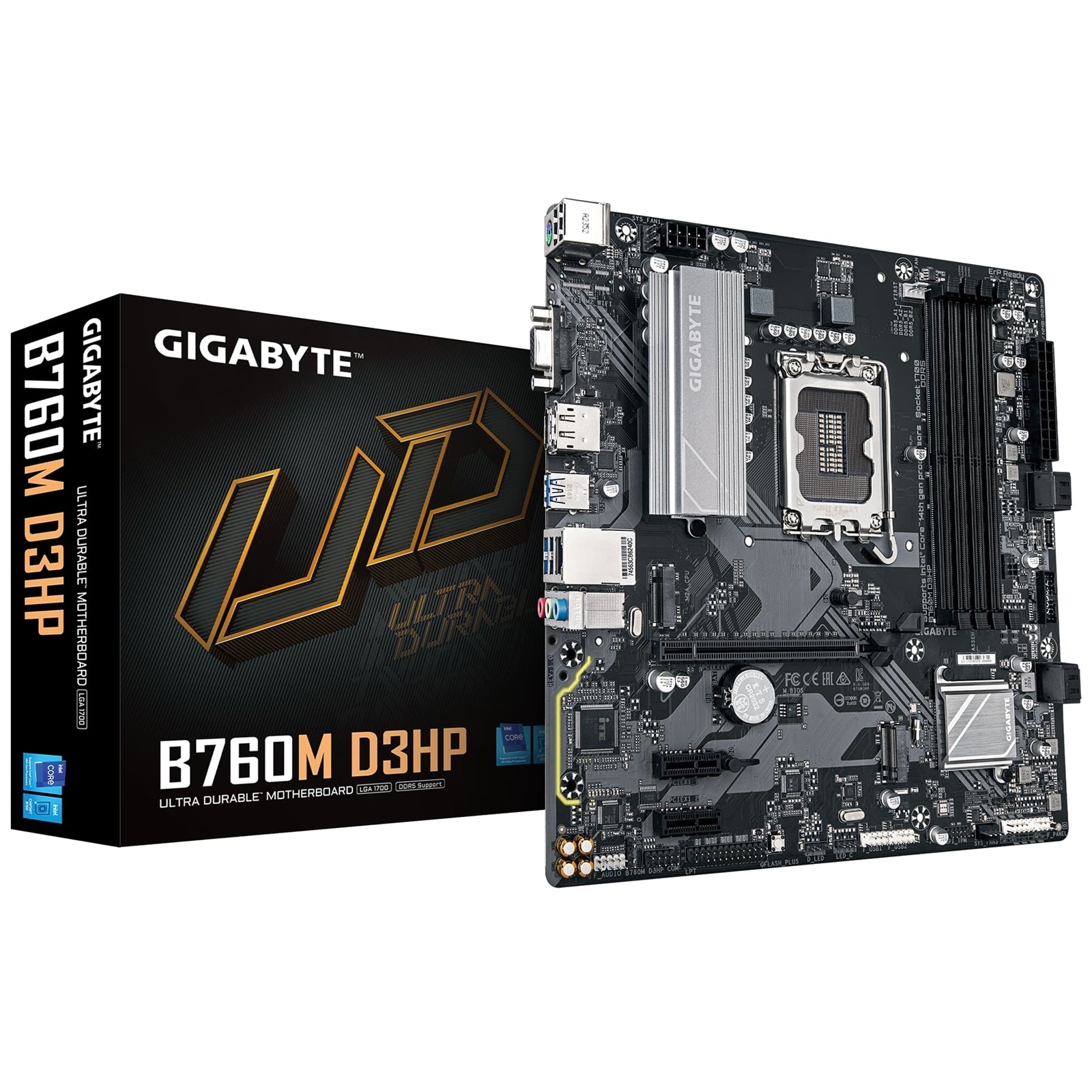

Gigabyte B760M D3HP Intel B760 Micro-ATX Motherboard

The Gigabyte B760M D3HP delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact Micro-ATX form factor. Built on the Intel B760 chipset with LGA1700 socket compatibility, this motherboard provides the foundation for mainstream gaming and productivity builds.

DDR5 Memory and Hybrid VRM Design

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 5600 MT/s on compatible processors. The hybrid 4+1+1 phases digital VRM solution ensures stable power delivery for sustained performance. XMP memory profiles are supported for simplified overclocking of compatible DDR5 modules.

Storage and Expansion Options

Two M.2 sockets provide PCIe 4.0 x4 connectivity for high-speed NVMe SSDs, with support for 2280 form factor drives. Four SATA 6Gb/s ports accommodate additional storage devices with RAID 0, 1, 5, and 10 configurations available. The primary PCIe x16 slot runs at full PCIe 4.0 x16 bandwidth for discrete graphics cards, complemented by two PCIe 3.0 x1 slots for expansion cards.

Connectivity and Display Outputs

Integrated graphics support includes D-Sub, HDMI, and DisplayPort outputs for triple-display configurations up to 4096x2304 resolution. USB connectivity features a front-panel USB Type-C header with USB 3.2 Gen 1 support, three rear USB 3.2 Gen 1 ports, and multiple USB 2.0 connections. Gigabit Ethernet provides network connectivity with bandwidth management capabilities for optimized latency.

Cooling and BIOS Features

Smart Fan 6 technology includes four fan headers with PWM and DC support, each capable of 24W output with over-current protection. Fan curves can be customized with seven control points, slope or stair modes, and complete fan stop functionality below specified temperatures. Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card components.

Audio and Additional Features

Realtek audio codec delivers high-definition sound with support for up to 7.1-channel configurations and S/PDIF output. Audio noise guard separates analog analog audio components from potential PCB-level interference. The EZ-Latch mechanism simplifies graphics card removal from the primary PCIe slot.

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel B760
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 4 / PCIe 3
• USB C: Yes
