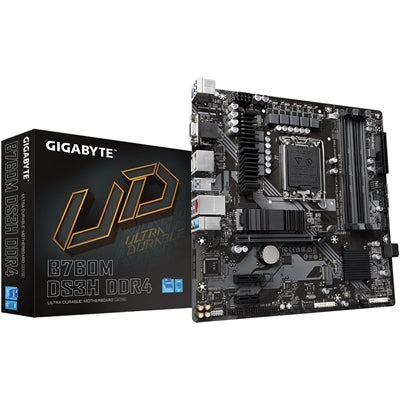

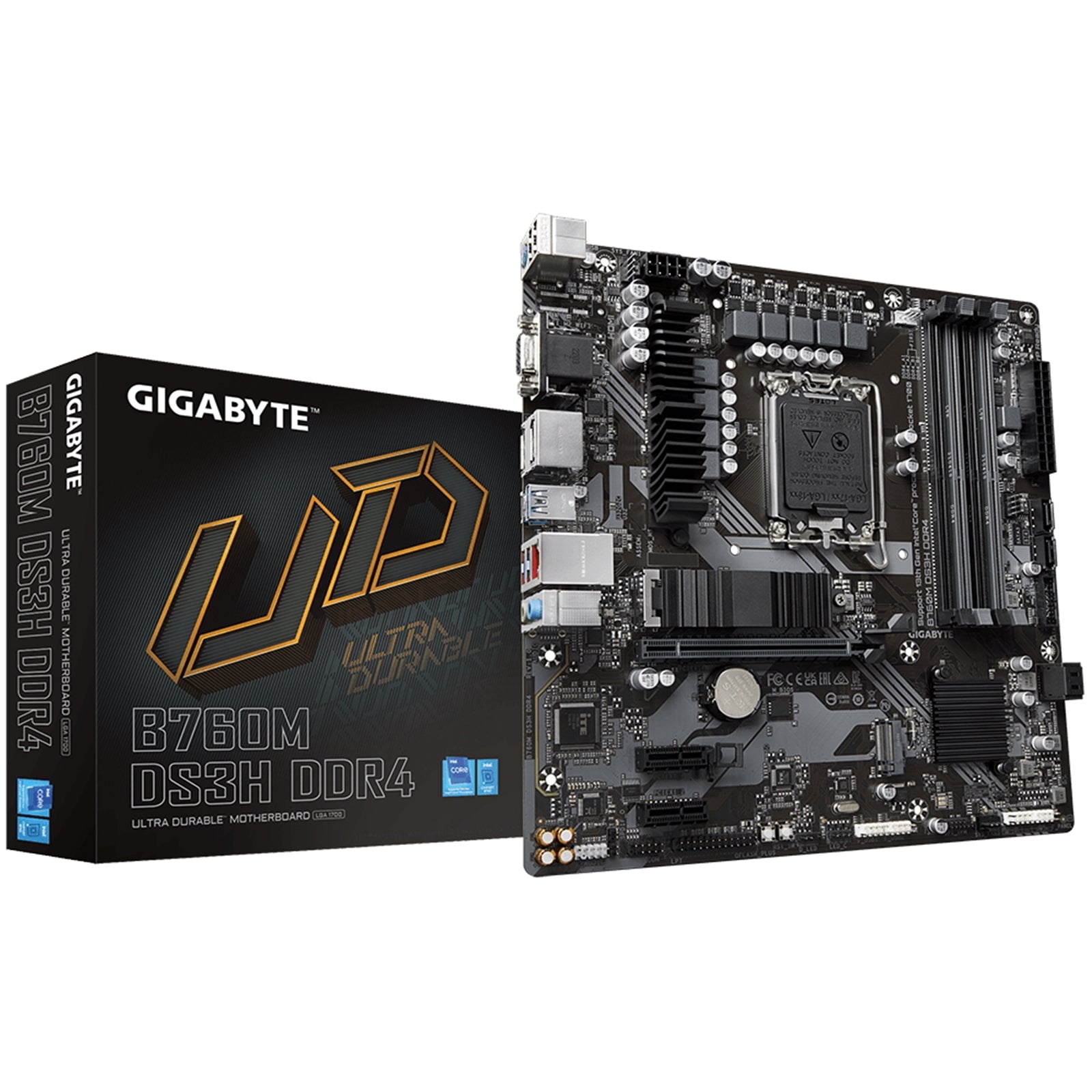

Gigabyte B760M DS3H DDR4 Motherboard for Intel 12th/13th Gen

The Gigabyte B760M DS3H DDR4 motherboard delivers reliable performance for Intel LGA1700 socket processors. Built on the Intel B760 chipset, this Micro-ATX board supports 12th and 13th generation Intel Core, Pentium Gold, and Celeron processors with a 6+2+1 phases hybrid digital VRM design featuring low RDS(on) MOSFETs and premium chokes for stable power delivery.

Memory and Storage Capabilities

Four DDR4 DIMM sockets support up to 128GB of system memory with speeds reaching 5333 MT/s (overclocked), running in dual-channel architecture. XMP memory profiles are supported for easy overclocking. Storage flexibility comes from two M.2 sockets (both PCIe 4.0 x4 compatible) and four SATA 6Gb/s connectors. The M.2 Thermal Guard prevents throttling by dissipating heat from high-speed SSDs, maintaining optimal performance during intensive workloads.

Connectivity and Expansion

Networking is handled by a Realtek 2.5GbE LAN chip providing speeds up to 2.5 Gbps. The rear I/O panel includes one USB Type-C port with USB 3.2 Gen 2 support, three USB 3.2 Gen 1 ports, and two USB 2.0 ports. Internal headers provide additional USB connectivity. One PCIe 4.0 x16 slot handles modern graphics cards, while two PCIe 3.0 x1 slots accommodate additional expansion cards.

Display and Audio Features

Integrated graphics support includes one D-Sub port (1920x1200@60Hz), one HDMI port (4096x2160@60Hz), and two DisplayPorts (4096x2304@60Hz), enabling quad-display configurations. Realtek Audio CODEC delivers High Definition Audio with support for 2/4/5.1/7.1-channel configurations and S/PDIF output.

Cooling and Management

Smart Fan 6 technology manages multiple fan headers supporting both PWM and DC fans. Users can define custom fan curves based on temperature sensors across the board through an intuitive interface. Hardware monitoring includes voltage detection, temperature sensing, fan speed control, and water cooling flow rate detection with fail warnings.

Q-Flash Plus BIOS Update

The Q-Flash Plus button enables BIOS updates without installing CPU, memory, or graphics card. Simply save the BIOS file (renamed to gigabyte.bin) on a USB drive and press the dedicated button. The motherboard uses a 128 Mbit flash with licensed AMI UEFI BIOS, supporting Windows 11 and Windows 10 64-bit operating systems.

This Micro-ATX motherboard (24.4cm x 24.4cm) includes comprehensive internal headers for system fans, RGB lighting, front panel audio, and legacy ports. RAID 0, 1, 5, and 10 configurations are supported for SATA storage devices.

• Socket: 1700
• CPU Compatibility: Intel 12th/13th Gen
• Chipset: Intel B760
• Form Factor: Micro ATX
• Memory Slots: DDR4 - 4 Slots
• M.2 Compatibility: PCIe
• USB C: Yes
