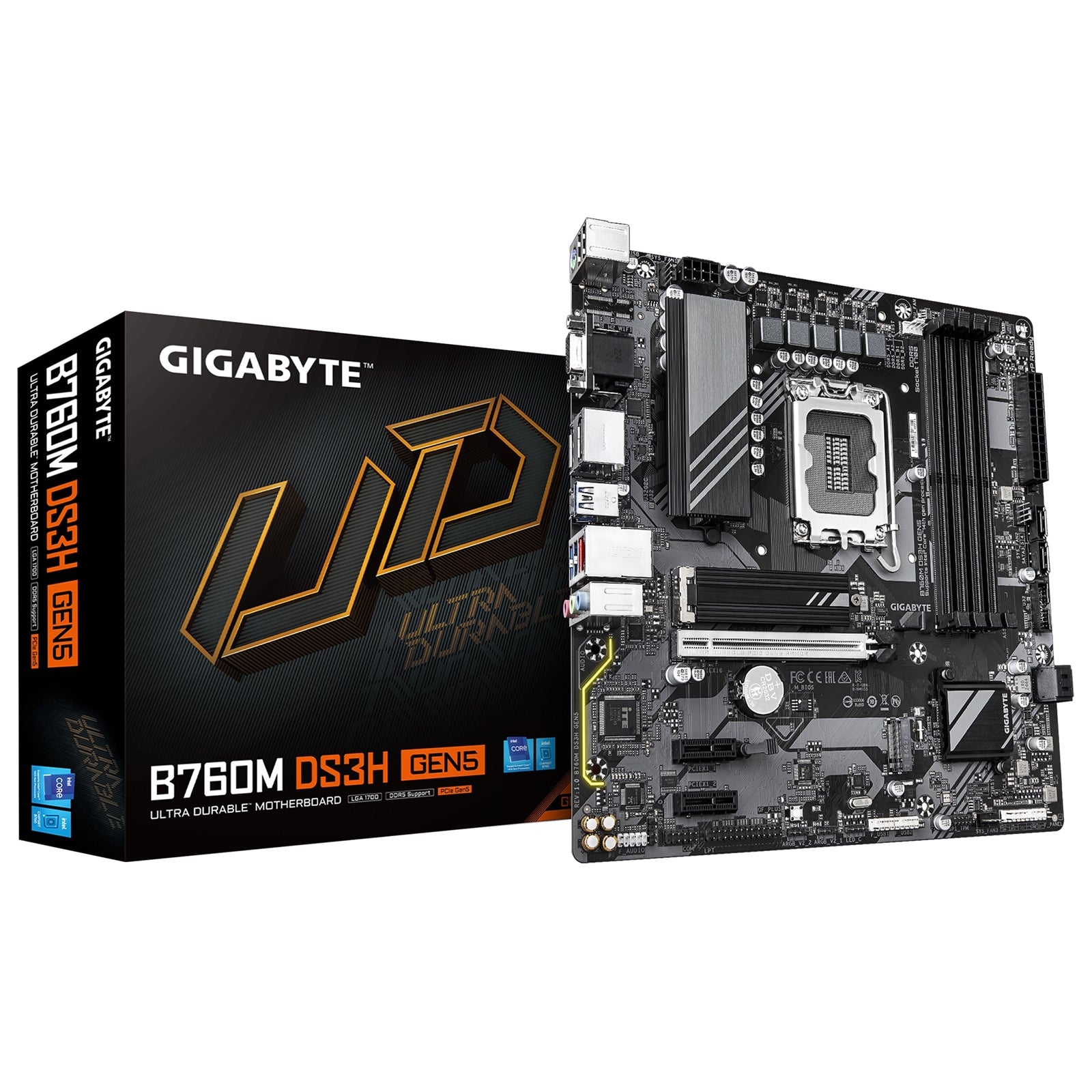

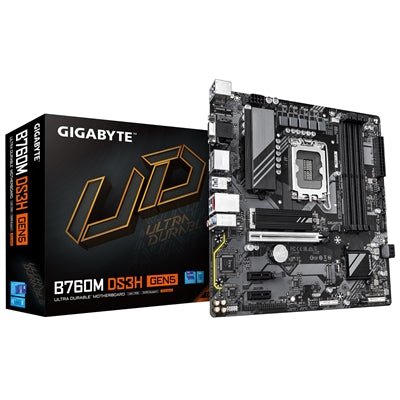

Gigabyte B760M DS3H DDR5 Micro ATX Motherboard

The Gigabyte B760M DS3H delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact Micro ATX form factor. Built on the Intel B760 chipset, this motherboard provides PCIe 5.0 support, DDR5 memory compatibility, and modern connectivity options for mainstream PC builds.

PCIe 5.0 Graphics Support

The PCIe 5.0 x16 slot doubles data transfer rates to 32 GT/s per lane compared to PCIe 4.0, providing enhanced bandwidth for high-performance graphics cards. The EZ-Latch quick release design simplifies installation and removal, while the SMD PCIe armor reinforces the slot to support heavy graphics cards without flex or strain.

DDR5 Memory Performance

Four DDR5 DIMM slots support up to 256GB of system memory with speeds up to 7600 MT/s (overclocked). The dual-channel architecture and XMP profile support ensure optimal performance for gaming and productivity workloads. Compatible with both ECC and non-ECC unbuffered memory modules.

Hybrid VRM Design

The 6+2+1 phase VRM solution delivers stable power delivery to Intel processors. VRM heatsinks provide thermal management during sustained workloads, while the UD Power Connector design enhances conductivity and heat dissipation for reliable operation.

Storage and Connectivity

Two M.2 sockets support PCIe 4.0 x4 NVMe SSDs in 2280 form factor, with one connected directly to the CPU for maximum bandwidth. Four SATA 6Gb/s ports accommodate additional storage drives with RAID 0, 1, 5, and 10 support. The 2.5GbE LAN port provides fast network connectivity, while USB 3.2 Gen 2 Type-C delivers 10Gbps transfer speeds.

Display Options

Integrated graphics support includes D-Sub, HDMI 2.1, and DisplayPort 1.2 outputs. HDMI supports 4096x2160@60Hz with HDCP 2.3, while DisplayPort handles 4096x2304@60Hz resolution for multi-monitor configurations.

Smart Fan 6 Cooling

Multiple temperature sensors and hybrid fan headers with FAN STOP functionality allow precise cooling control. The system automatically adjusts fan speeds based on temperature readings or stops fans completely during idle periods for silent operation.

Q-Flash Plus BIOS Updates

Update the motherboard BIOS without installing CPU, memory, or graphics card. The dedicated Q-Flash Plus button on the rear I/O panel streamlines BIOS updates for new processor compatibility.

Audio and Expansion

Realtek Audio CODEC supports up to 7.1-channel HD audio with high-end capacitors and audio noise guard. Two PCIe 3.0 x1 slots provide expansion options for additional cards. Addressable RGB headers and RGB LED strip header enable customizable lighting integration.

Specifications

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel B760 Express Chipset

Memory
14th and 13th Generation Intel Core i9/i7 Processors:
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port (Note)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

Hardware Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm

• Socket: 1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel B760
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe4.0 x 2
• USB C: Yes
