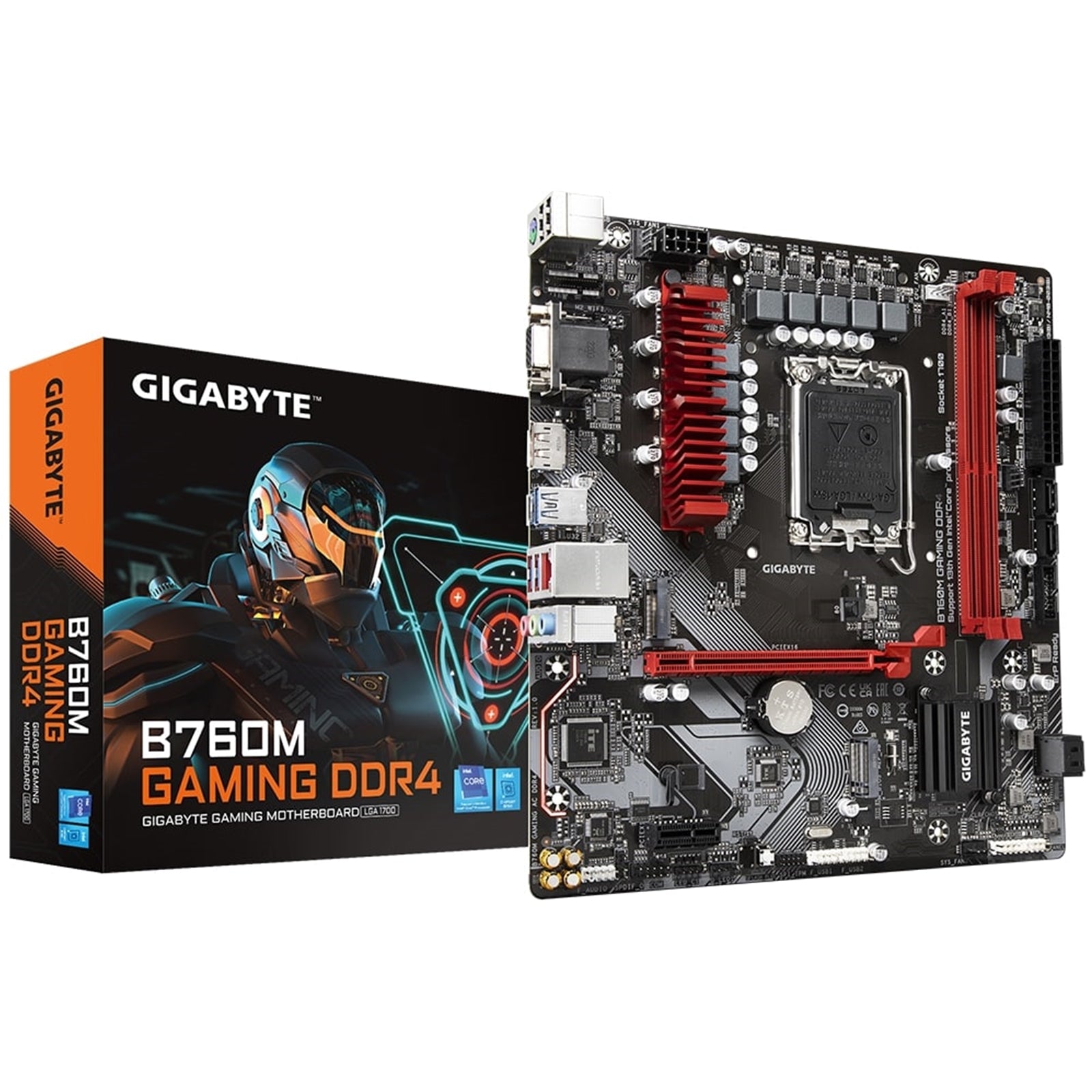

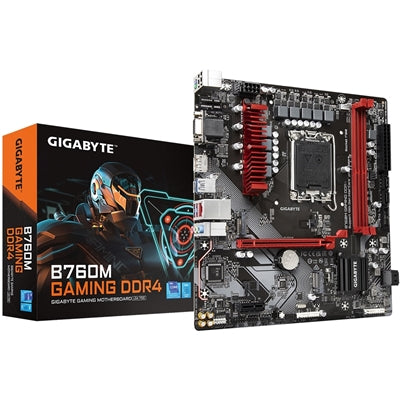

Gigabyte B760M GAMING DDR4 Micro-ATX Motherboard

The Gigabyte B760M GAMING DDR4 motherboard delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact Micro-ATX form factor. Built on the Intel B760 chipset with LGA1700 socket compatibility, this motherboard provides essential gaming and productivity features without unnecessary complexity.

Power Delivery and Performance

The 6+2+1 phases hybrid digital VRM design utilizes low RDS(on) MOSFETs with premium chokes and capacitors to ensure stable power delivery to your processor. This configuration handles transient response efficiently while minimizing oscillation, supporting Intel Core processors through multiple generations including the latest 14th gen lineup.

Memory and Storage Configuration

Two DDR4 DIMM slots support up to 64GB of system memory with speeds reaching 5333MHz when overclocked, and XMP profile compatibility for straightforward performance tuning. Dual channel architecture maximizes memory bandwidth for gaming and multitasking workloads.

Storage flexibility comes from two M.2 sockets supporting PCIe 4.0 x4 connectivity, delivering high-speed NVMe SSD performance. Four SATA 6Gb/s connectors provide additional storage expansion. The PCIe 4.0 x16 slot features EZ-Latch design with quick-release mechanism for simplified graphics card installation and removal.

Connectivity and Networking

The Realtek 2.5GbE LAN chip provides network speeds up to 2.5Gbps, doubling standard gigabit ethernet performance for faster file transfers and reduced latency in online gaming. Rear I/O includes USB-C with 5Gb/s transfer speeds, three USB 3.2 Gen 1 ports, and two USB 2.0 ports. Internal headers support additional USB 3.2 Gen 1 and USB 2.0 connectivity.

Display outputs accommodate multiple monitor configurations with D-Sub supporting 1920x1200@60Hz, HDMI supporting 4096x2160@60Hz, and DisplayPort supporting 4096x2304@60Hz when using integrated graphics.

Cooling and System Management

Smart Fan 6 technology manages system thermals through multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans. Each header delivers up to 24W with over-current protection. Fan curves are customizable based on different temperature sensors, with Fan Stop functionality allowing complete fan shutdown below specified temperatures. PerfDrive technology balances performance, power consumption, and temperature when running 13th gen Intel Core processors.

Audio and BIOS Features

Realtek Audio CODEC with high-end audio capacitors and audio noise guard separation delivers clear sound reproduction for gaming and media. The 128Mbit AMI UEFI BIOS includes Q-Flash Plus functionality, enabling BIOS updates without installing CPU, memory, or graphics card—simply use a USB drive with the renamed BIOS file and press the dedicated Q-Flash Plus button.

Measuring 24.4cm x 22.5cm, the B760M GAMING DDR4 fits standard Micro-ATX cases while providing addressable LED and RGB LED strip headers for system customization. Windows 11 and Windows 10 64-bit operating systems are supported.
