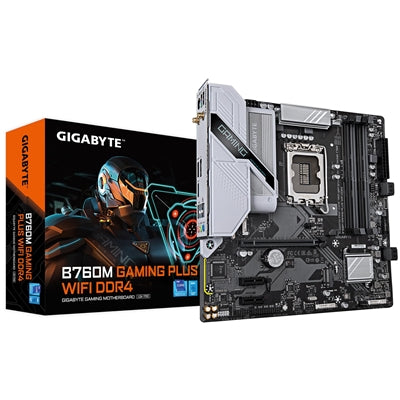

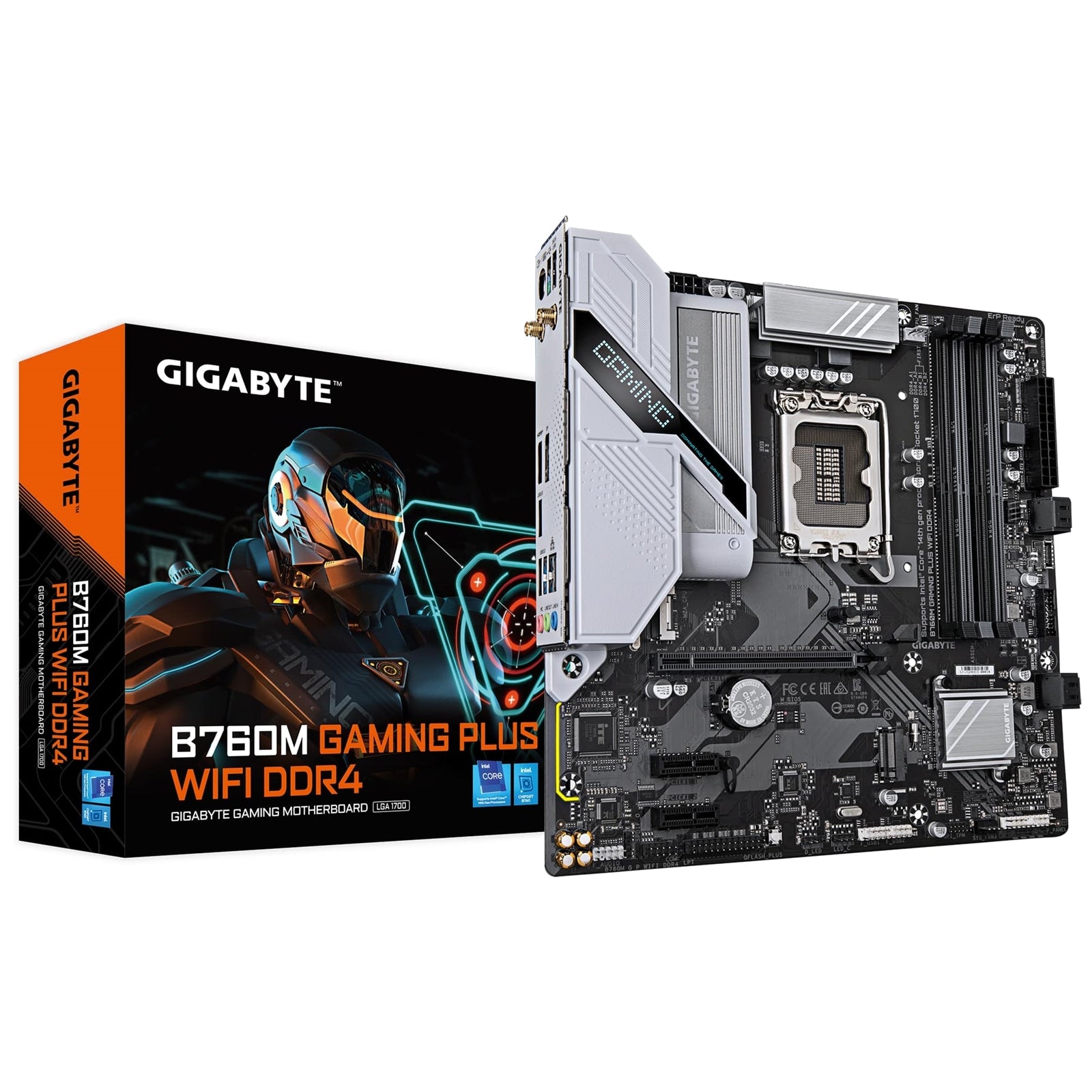

Gigabyte B760M Gaming Plus WiFi DDR4 Motherboard

The Gigabyte B760M Gaming Plus WiFi DDR4 delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact Micro-ATX form factor. Built on the Intel B760 chipset, this motherboard combines essential gaming features with practical connectivity options for modern PC builds.

Power Delivery and Memory Support

Equipped with a hybrid 4+1+1 phase digital VRM solution and enlarged MOSFET heatsinks for improved thermal management. The dual-channel DDR4 configuration supports four DIMM slots with XMP profiles up to 5333MHz, accommodating up to 128GB of system memory for multitasking and content creation workloads.

Storage and Expansion

Features two M.2 slots with PCIe 4.0 x4 support for high-speed NVMe SSDs, plus four SATA 6Gb/s connectors for additional storage. The single PCIe 4.0 x16 slot handles modern graphics cards, while two PCIe 3.0 x1 slots provide expansion flexibility. The EZ-Latch mechanism simplifies graphics card installation and removal.

Connectivity Options

Integrated WiFi 6 (802.11ax) with Bluetooth 5.3 delivers wireless speeds up to 2.4Gbps. Gigabit Ethernet provides wired network connectivity with bandwidth management capabilities. The rear I/O includes DisplayPort and HDMI outputs supporting 4K resolution at 60Hz, three USB 3.2 Gen 1 ports, two USB 2.0 ports, and a front USB Type-C header with 5Gb/s transfer speeds.

Cooling and BIOS Features

Smart Fan 6 technology offers precise control over four fan headers, each supporting up to 24W with PWM/DC compatibility. The enhanced BIOS interface includes seven-point fan curves, slope/stair dual modes, and fan stop functionality. Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card components.

Audio and Additional Features

Realtek audio codec with high-end capacitors and audio noise guard PCB separation delivers 7.1-channel HD audio with S/PDIF output. The fitted I/O shield streamlines installation, while support for addressable RGB and standard RGB headers enables lighting customization.

Technical Specifications

• Socket: LGA1700 (Intel 12th/13th/14th Gen)
• Chipset: Intel B760
• Form Factor: Micro ATX (24.4cm x 24.4cm)
• Memory: 4x DDR4 DIMM, up to 128GB, 5333MHz OC
• Storage: 2x M.2 PCIe 4.0, 4x SATA 6Gb/s
• Networking: WiFi 6, Bluetooth 5.3, GbE LAN
• Display: 1x HDMI, 1x DisplayPort (4K@60Hz)
• USB: 1x Type-C, 3x USB 3.2 Gen 1, 6x USB 2.0

Compatible with Windows 11 and Windows 10 64-bit operating systems, the B760M Gaming Plus WiFi DDR4 provides a balanced foundation for gaming and productivity builds requiring Intel platform compatibility.
