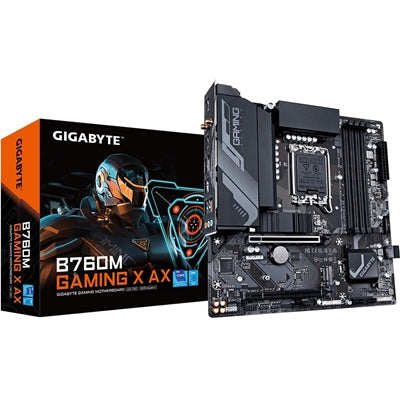

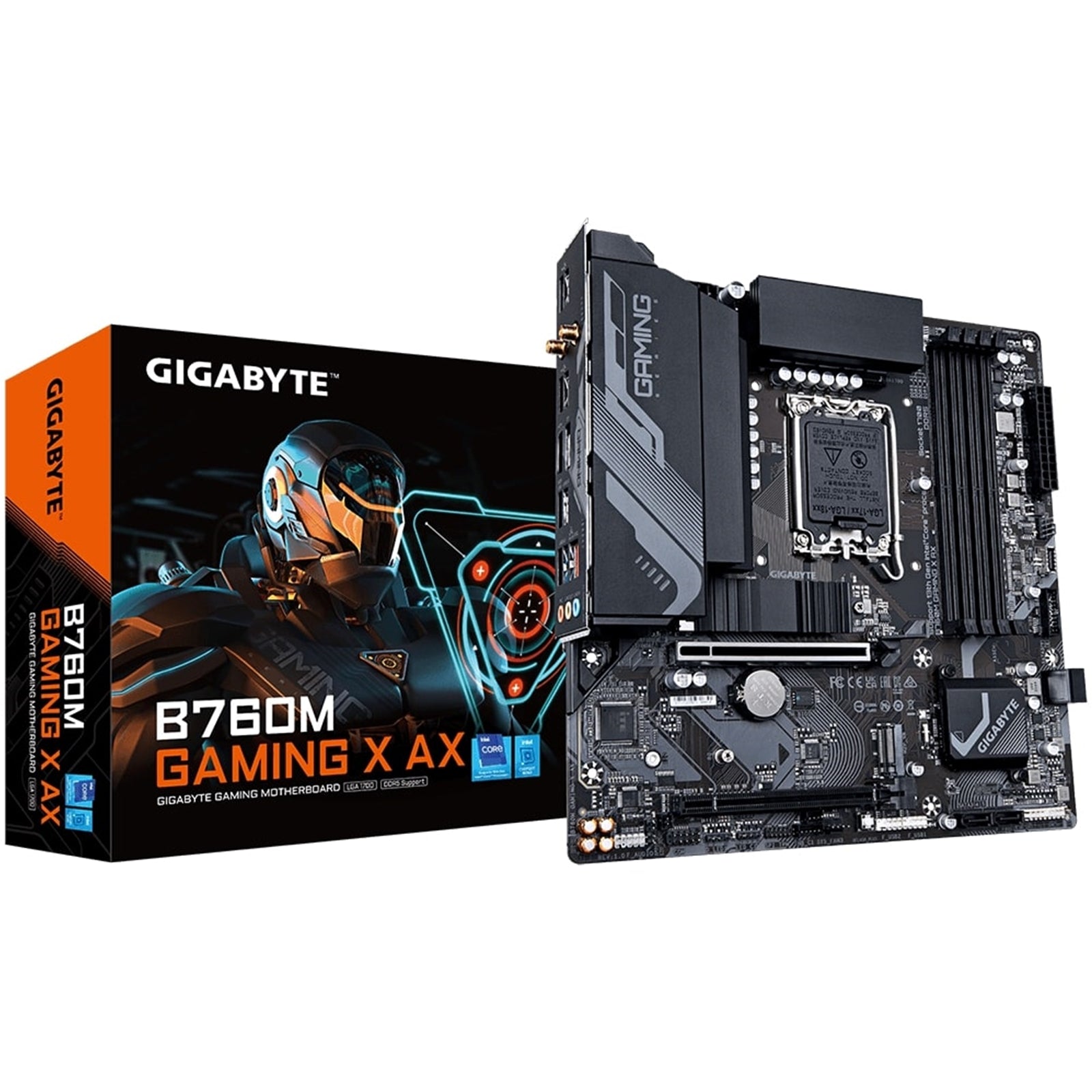

Gigabyte B760M GAMING X AX Micro-ATX Motherboard

The Gigabyte B760M GAMING X AX delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact micro-ATX form factor. Built on the Intel B760 chipset with LGA1700 socket compatibility, this motherboard provides the connectivity and features needed for modern gaming and productivity builds.

Power Delivery and Memory Support

Featuring a hybrid 8+1+1 phases digital VRM solution, the B760M GAMING X AX ensures stable power delivery for demanding workloads. Four DDR5 DIMM slots support up to 256GB of memory with speeds reaching 7600 MT/s (overclocked), providing ample bandwidth for multitasking and gaming. XMP memory profiles are fully supported for simplified overclocking.

Storage and Expansion

Two M.2 sockets with PCIe 4.0 x4 support deliver fast NVMe SSD performance, with M.2 Thermal Guard technology keeping drives cool under sustained loads. Four SATA 6Gb/s connectors provide additional storage options with RAID 0, 1, 5, and 10 support. The PCIe 4.0 x16 slot features EZ-Latch quick release design for tool-free graphics card installation and removal.

Networking and Connectivity

Integrated WiFi 6E (802.11ax) with tri-band support across 2.4GHz, 5GHz, and 6GHz frequencies provides wireless speeds up to 2.4 Gbps with Bluetooth 5.3. The Realtek 2.5GbE LAN port delivers wired network speeds 2.5 times faster than standard gigabit ethernet, ideal for low-latency gaming and large file transfers.

Display and USB Options

Integrated graphics support includes one DisplayPort (4096x2304@60Hz) and one HDMI 2.0 port (4096x2160@60Hz). USB connectivity features a front panel USB 3.2 Gen 2 Type-C header with 10Gbps transfer speeds, three rear USB 3.2 Gen 1 ports, and multiple USB 2.0 ports for peripheral connectivity.

Thermal Management and BIOS Features

Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers enables precise cooling control with FAN STOP capability for silent operation. The Q-Flash Plus button allows BIOS updates without installing CPU, memory, or graphics card. High-end audio capacitors and audio noise guard deliver clear sound reproduction with support for up to 7.1-channel configurations.

Specifications Summary

• Socket: LGA1700 (Intel 12th/13th/14th Gen)
• Chipset: Intel B760
• Form Factor: Micro-ATX (24.4cm x 24.4cm)
• Memory: 4x DDR5 slots, up to 256GB, 7600 MT/s OC
• Storage: 2x M.2 PCIe 4.0, 4x SATA 6Gb/s
• Network: WiFi 6E, Bluetooth 5.3, 2.5GbE LAN
• Expansion: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4
