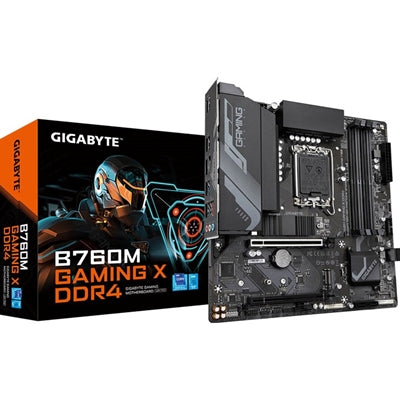

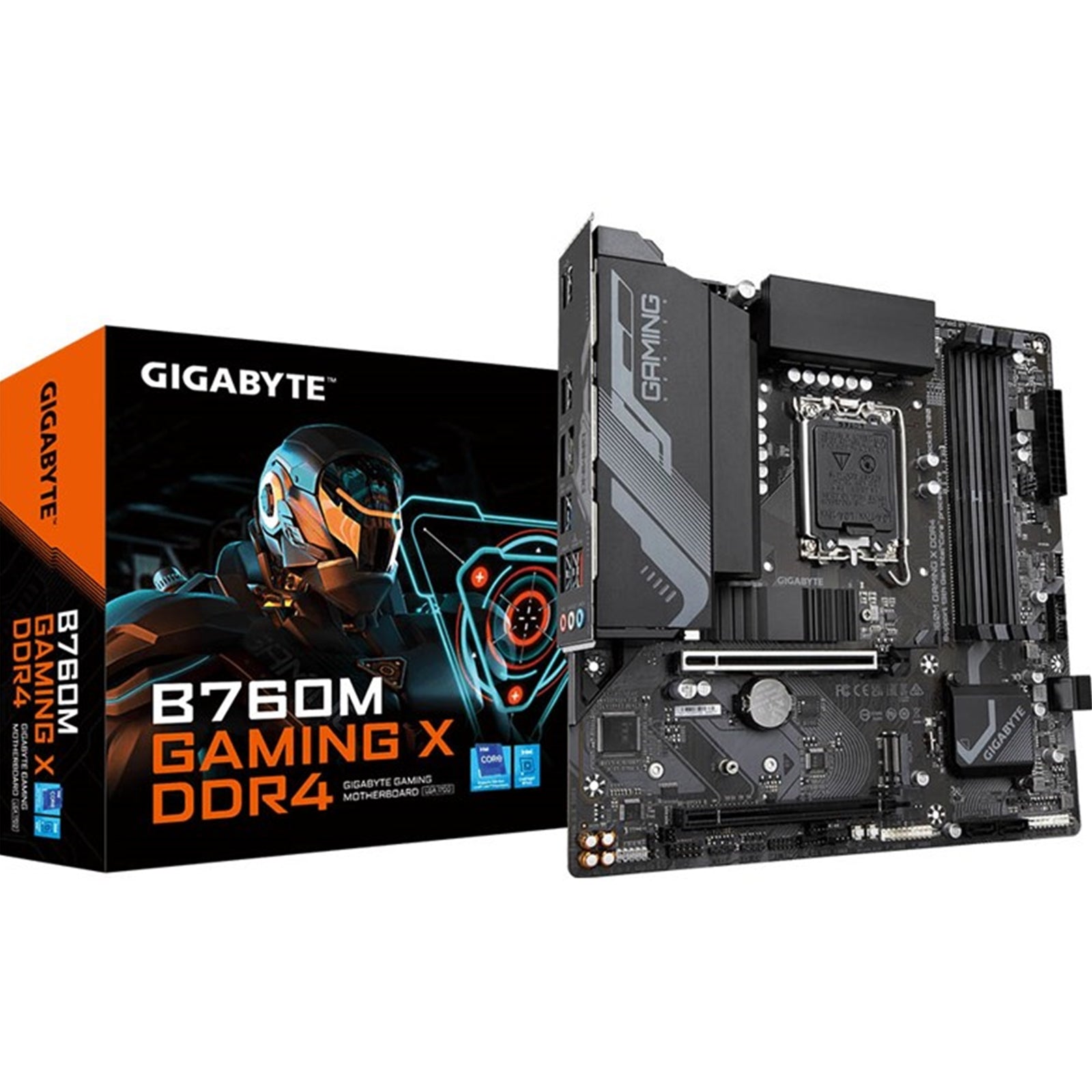

Gigabyte B760M GAMING X DDR4 Motherboard

The Gigabyte B760M GAMING X DDR4 motherboard delivers reliable performance for Intel 12th and 13th generation processors in a compact Micro-ATX form factor. Built on the Intel B760 chipset with LGA1700 socket compatibility, this motherboard provides the core features needed for gaming and productivity builds.

Memory and Storage Configuration

Four DDR4 DIMM slots support up to 128GB of system memory with speeds reaching 5333 MT/s (overclocked). The dual-channel architecture accommodates ECC and non-ECC unbuffered memory modules with XMP profile support. Storage flexibility comes from two M.2 sockets—one CPU-connected M.2 slot supporting PCIe 4.0 x4 (type 2280) and one chipset-connected slot supporting PCIe 4.0 x4 (type 22110/2280). Four SATA 6Gb/s connectors provide additional storage options with RAID 0, 1, 5, and 10 support.

Expansion and Connectivity

The PCIe configuration includes one x16 slot running at PCIe 4.0 speeds and a second x16 slot operating at PCIe 3.0 x4. USB connectivity features one USB Type-C port with USB 3.2 Gen 2 support, five USB 3.2 Gen 1 ports, and nine USB 2.0 ports across back panel and internal headers. Network connectivity is handled by a Realtek 2.5GbE LAN chip supporting speeds up to 2.5 Gbps.

Display and Audio

Integrated graphics support includes one DisplayPort supporting 4096x2304@60Hz and one HDMI 2.0 port supporting 4096x2160@60Hz. The Realtek audio codec provides High Definition Audio with support for 2/4/5.1/7.1-channel configurations and S/PDIF output.

Thermal and Power Design

The motherboard features one CPU fan header and three system fan headers with speed detection and control. Hardware monitoring includes voltage detection, temperature sensing, water cooling flow rate detection, and fan fail warnings. Power delivery comes through a 24-pin ATX main connector and 8-pin ATX 12V connector.

Additional Features

The board includes addressable LED and RGB LED strip headers for lighting customization. A fitted I/O shield simplifies installation. Q-Flash and Q-Flash Plus support enables BIOS updates. The 256 Mbit AMI UEFI BIOS supports Windows 11 and Windows 10 64-bit operating systems. Internal connectors include headers for Thunderbolt add-in cards, TPM modules, serial ports, and front panel audio.

Measuring 24.4cm x 24.4cm, this Micro-ATX motherboard fits compact cases while maintaining full feature compatibility with modern Intel processors and components.

• Socket: 1700
• CPU Compatibility: Intel 12th/13th Gen
• Chipset: Intel B760
• Form Factor: Micro ATX
• Memory Slots: DDR4 - 4 Slots
• M.2 Compatibility: PCIe
• USB C: Yes
