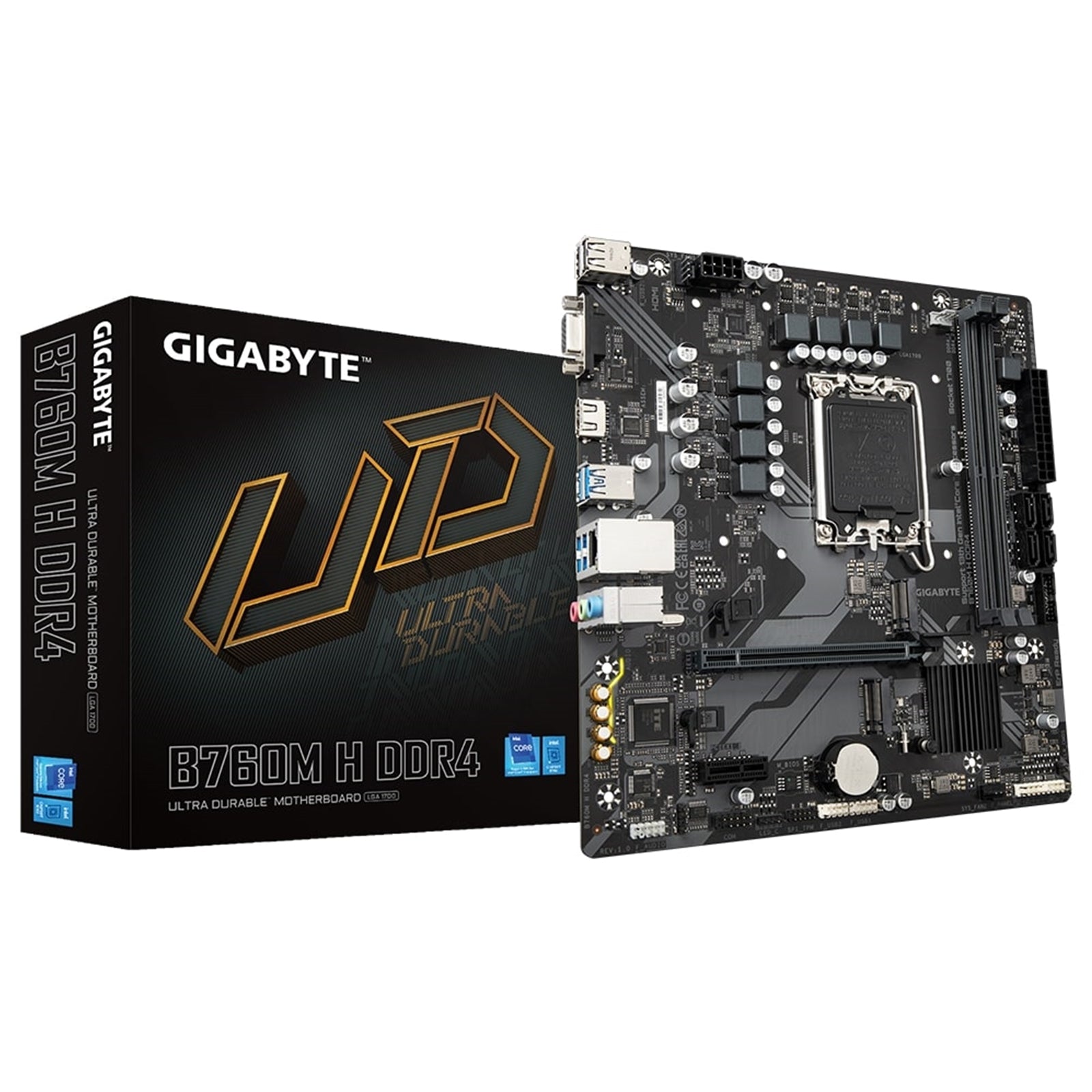

Gigabyte B760M H DDR4 Micro-ATX Motherboard

The Gigabyte B760M H DDR4 delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact Micro-ATX form factor. Built on the Intel B760 chipset, this motherboard provides essential features for mainstream builds without compromising on quality or expandability.

Power Delivery and Performance

Featuring a 6+1+1 phases hybrid digital VRM design with low RDS(on) MOSFETs, premium chokes, and capacitors, the B760M H ensures stable power delivery to your processor. This design improves transient response and minimizes oscillation, supporting demanding workloads and multi-threaded applications. GIGABYTE PerfDrive technology allows users to balance performance, power consumption, and temperature when using 13th gen Intel Core processors.

Memory and Storage Configuration

Two DDR4 DIMM sockets support up to 64GB of system memory with speeds reaching 5333MHz and beyond through XMP profiles. The dual-channel architecture maximizes memory bandwidth for improved system responsiveness. Storage expansion includes two M.2 connectors supporting PCIe 4.0 x4 SSDs (Socket 3, M key, type 2280) and four SATA 6Gb/s ports. RAID 0, 1, 5, and 10 configurations are supported across SATA devices.

Expansion and Connectivity

The PCIe 4.0 x16 slot features EZ-Latch quick release design for easy graphics card installation and removal. An additional PCIe 3.0 x1 slot provides expansion flexibility. The low impedance PCB design maintains signal integrity for PCIe 4.0 devices, delivering triple the bandwidth of PCIe 3.0.

Connectivity options include Realtek GbE LAN for network access, six USB 3.2 Gen 1 ports, and six USB 2.0/1.1 ports distributed across the back panel and internal headers. Display outputs feature one HDMI port supporting 4096x2160@60Hz and one D-Sub port supporting 1920x1200@60Hz for integrated graphics.

Cooling and Monitoring

Smart Fan 6 technology provides comprehensive cooling control with multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans up to 24W per header. Features include precision fan curves, dual curve mode (slope/stair), fan stop functionality, and over-current protection. The intuitive BIOS interface displays real-time monitoring of voltages, temperatures, fan speeds, and water cooling flow rates.

Audio and Additional Features

Realtek Audio CODEC delivers high definition audio with support for 2/4/5.1/7.1-channel configurations and S/PDIF output. The motherboard includes RGB LED strip headers for lighting customization, TPM header support for enhanced security, and Q-Flash utility for easy BIOS updates.

Technical Specifications

• Socket: LGA1700
• CPU Compatibility: Intel 12th/13th/14th Gen
• Chipset: Intel B760
• Form Factor: Micro ATX (23.0cm x 21.5cm)
• Memory Slots: 2x DDR4 (up to 64GB)
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x 6Gb/s
• USB: 6x USB 3.2 Gen 1, 6x USB 2.0
• Display: 1x HDMI, 1x D-Sub
• Network: Realtek GbE LAN
• Audio: Realtek HD Audio CODEC
• OS Support: Windows 11/10 64-bit
