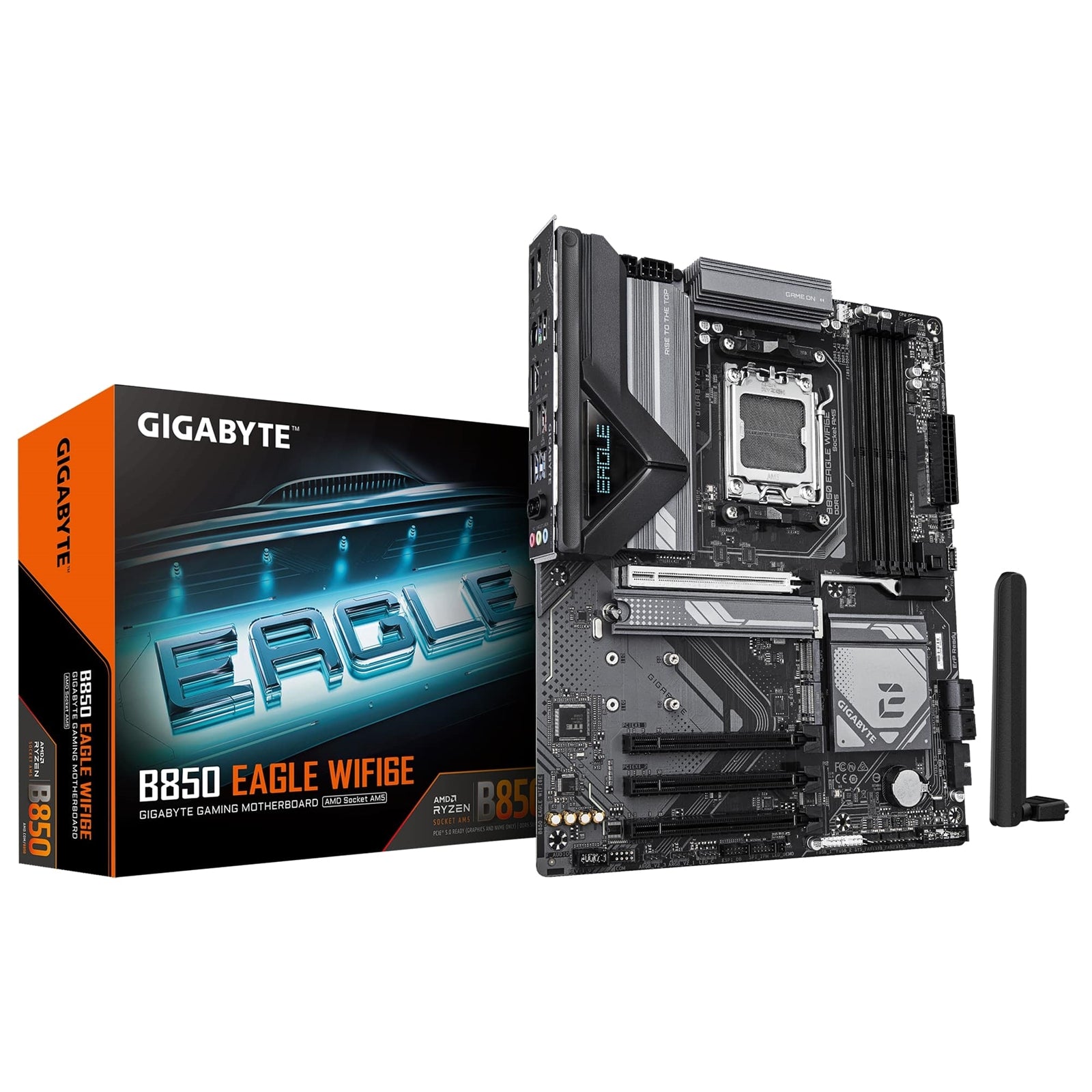

Gigabyte B850 EAGLE WiFi 6E Motherboard - AMD AM5 Platform

The Gigabyte B850 EAGLE WiFi 6E motherboard delivers high-performance computing for AMD Ryzen 9000, 8000, and 7000 Series processors. Built on the AMD B850 chipset with AM5 socket compatibility, this ATX motherboard combines advanced connectivity, robust power delivery, and efficient thermal management for gaming and productivity workloads.

DDR5 Memory and Overclocking Performance

Four DDR5 DIMM slots support up to 256GB of system memory with overclocking speeds reaching 8200MT/s. The dual-channel architecture works with AMD EXPO and XMP memory modules, while the digital twin 8+2+2 phase VRM solution ensures stable power delivery during intensive tasks. X3D Turbo Mode unlocks enhanced gaming performance specifically optimized for AMD's 3D V-Cache processors.

Storage and Expansion Capabilities

Three M.2 sockets provide flexible NVMe SSD configuration, with the primary M2A_CPU slot supporting PCIe 5.0 x4 connectivity on Ryzen 9000/7000 processors. M.2 Thermal Guard heatsinks maintain optimal operating temperatures, while the screwless EZ-Latch Click design simplifies installation. Four SATA 6Gb/s ports accommodate additional storage drives with RAID 0, 1, 5, and 10 support.

The PCIe 5.0 x16 slot features 10X reinforced construction for heavy graphics cards with improved heat dissipation. Three additional PCIe 3.0 x1 slots expand connectivity options for capture cards, sound cards, or additional networking adapters.

Connectivity and Networking

WiFi 6E technology operates across 2.4GHz, 5GHz, and 6GHz bands with directional ultra-high gain antenna for reliable wireless performance. Realtek GbE LAN provides wired networking, while Bluetooth 5.3 supports wireless peripherals. The WIFI EZ-Plug connector streamlines antenna installation.

USB connectivity includes two USB 3.2 Gen 2 Type-A ports, two USB-C ports (one rear panel, one internal header), and multiple USB 3.2 Gen 1 and USB 2.0 ports. The rear I/O shield comes pre-installed for straightforward system assembly.

Display and Audio

Integrated graphics output through DisplayPort 1.4 (4K@144Hz) and HDMI 2.1 (4K@60Hz) with HDR support enables multi-monitor configurations when using processors with integrated Radeon graphics. Realtek Audio CODEC delivers 7.1-channel high definition audio through three rear panel jacks.

Thermal Management and Control

VRM Thermal Armor Advanced cooling covers the power delivery components, while multiple fan headers (CPU, CPU/pump, system, and system/pump) provide comprehensive airflow control. Voltage, temperature, and fan speed monitoring through the iTE I/O controller enables precise thermal management. Addressable RGB Gen2 headers and standard RGB headers support customizable lighting configurations.

BIOS and Software Features

AMI UEFI BIOS includes Q-Flash for easy updates and Q-Flash Plus for USB-based BIOS recovery without CPU installation. Gigabyte Control Center provides unified system management, while Smart Backup protects BIOS settings. Windows 11 and Windows 10 64-bit compatibility ensures broad operating system support.

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B850
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4
• USB C: Yes
