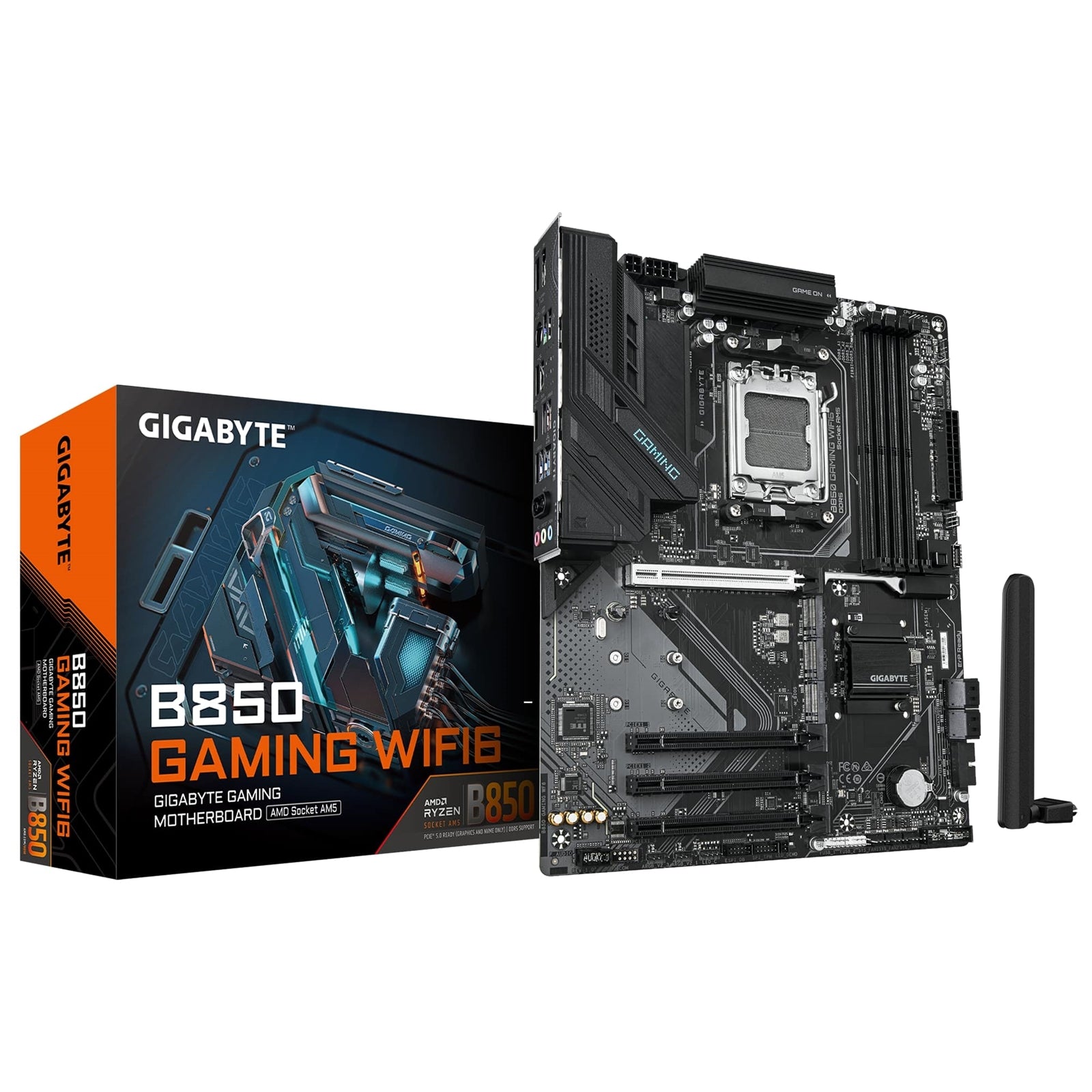

Gigabyte B850 Gaming WiFi 6 AMD AM5 Motherboard

The Gigabyte B850 Gaming WiFi 6 motherboard delivers high-performance computing for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset with AM5 socket compatibility, this ATX motherboard provides the foundation for powerful gaming and productivity systems.

Performance Features

X3D Turbo Mode unleashes maximum gaming performance from compatible AMD processors. The digital 6+2+2 phase VRM solution with VRM Thermal Armor Advanced ensures stable power delivery under demanding workloads. DDR5 memory support reaches up to 8200MT/s with overclocking, utilizing four DIMM slots in dual-channel configuration with AMD EXPO and XMP profile support.

Storage and Expansion

Three M.2 sockets provide ultra-fast NVMe storage options, including one PCIe 5.0 x4 slot for next-generation SSDs. The primary PCIe x16 slot supports PCIe 5.0 graphics cards with Ryzen 9000/7000 processors. Four SATA 6Gb/s connectors offer additional storage flexibility with RAID 0, 1, 5, and 10 support.

Connectivity and Networking

Realtek WiFi 6 802.11ax with Bluetooth 5.3 provides wireless connectivity across 2.4GHz and 5GHz bands. The WIFI EZ-Plug design simplifies antenna installation. Gigabit Ethernet ensures reliable wired network performance. USB connectivity includes USB 3.2 Gen 2 Type-A ports, two USB Type-C ports (one Gen 1 rear, one Gen 1 via header), and multiple USB 3.2 Gen 1 and USB 2.0 ports.

Display and Audio

Integrated graphics output through one DisplayPort 1.4 (supporting 3840x2160@144Hz with HDR) and one HDMI 2.1 port (supporting 4096x2160@60Hz with HDCP 2.3 and HDR) enables multi-monitor setups. Realtek Audio CODEC delivers high-definition 7.1-channel audio with configurable jack functionality.

User-Friendly Design

PCIe EZ-Latch Plus enables tool-free graphics card installation and removal. Q-Flash Plus button allows BIOS updates without CPU or memory installed. The pre-fitted I/O shield streamlines installation. GIGABYTE Control Center (GCC) provides intuitive system management with multi-theme UI, AIO fan control, and Q-Flash Auto Scan functionality.

Cooling and RGB

Five fan headers (CPU, CPU/pump, three system, one system/pump) offer comprehensive cooling control with automatic speed adjustment. Three addressable RGB Gen2 LED strip headers and one standard RGB header enable customizable lighting configurations.

Technical Specifications

ATX form factor (30.5cm x 24.4cm) fits standard cases. 256GB maximum memory capacity (64GB per DIMM). AMI UEFI BIOS with 256Mbit flash. Windows 11 and Windows 10 64-bit support. Norton Internet Security and LAN bandwidth management software included.

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B850
• Form Factor: ATX
• Memory Slots: DDR5 - 4 SlotsM.2 Compatibility: PCIe 5 / PCIe 4
• USB C: Yes
