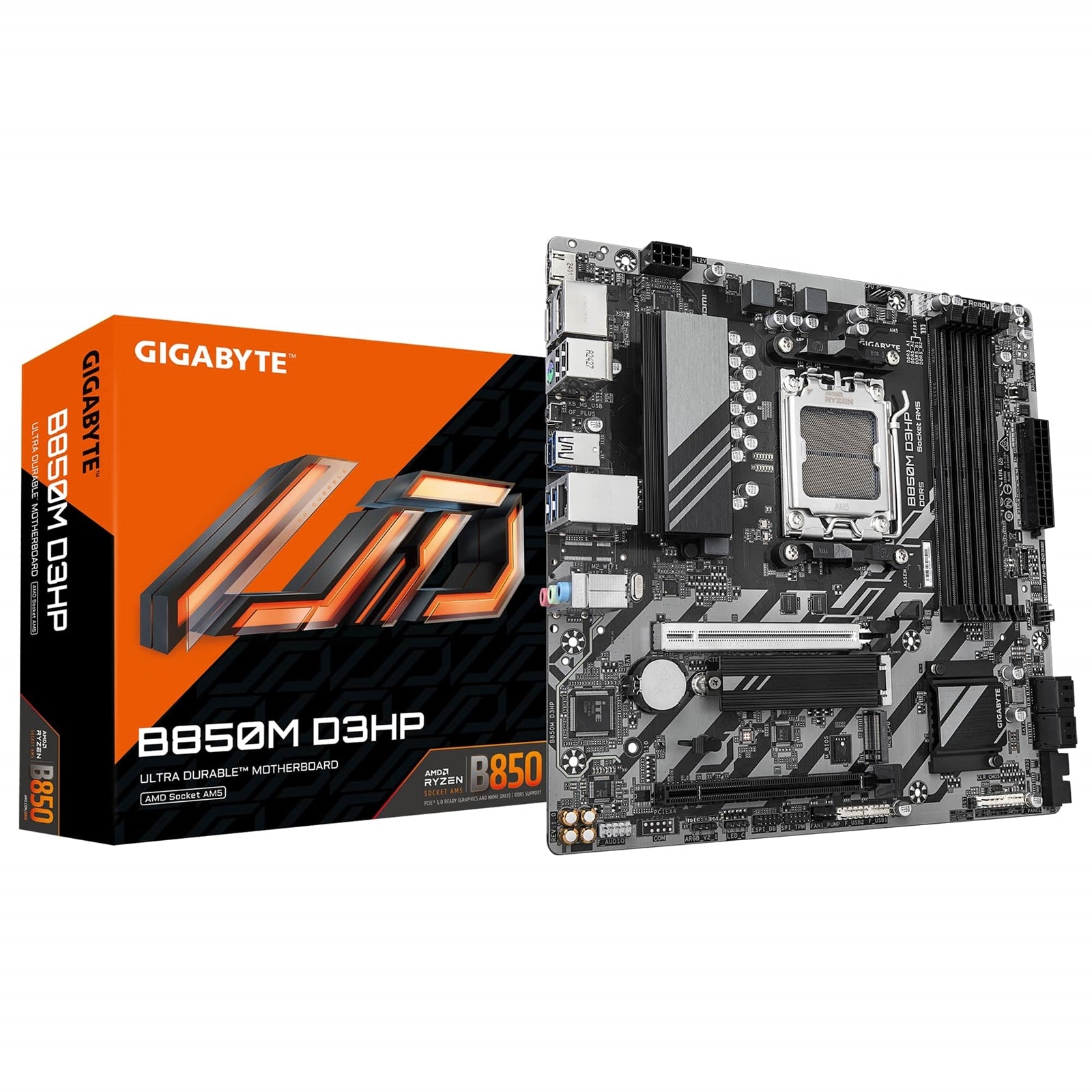

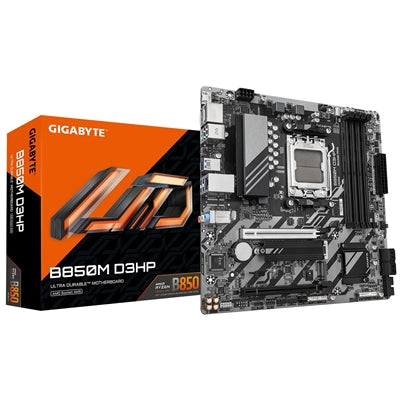

Gigabyte B850M D3HP AMD AM5 Motherboard

The Gigabyte B850M D3HP delivers robust performance for AMD Ryzen builds in a compact Micro-ATX form factor. Built on the AMD B850 chipset, this motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors through the AM5 socket, with X3D Turbo Mode to maximize gaming performance.

DDR5 Memory and Overclocking Support

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 8200 MT/s when overclocked. Dual-channel architecture ensures optimal bandwidth, while AMD EXPO and XMP profile support simplifies overclocking for enhanced performance. The digital 5+2+2 phase VRM solution provides stable power delivery for demanding workloads.

High-Speed Storage Configuration

Two M.2 sockets accommodate NVMe SSDs, with the primary M2A_CPU slot supporting PCIe 5.0 x4 on Ryzen 9000/7000 processors for maximum transfer speeds. The secondary M2B_CPU slot offers PCIe 4.0 x4 connectivity. Four SATA 6Gb/s connectors provide additional storage expansion, with RAID 0, 1, 5, and 10 support across both NVMe and SATA devices.

Expansion and Graphics Support

The PCIe x16 slot features EZ-Latch quick-release design and supports PCIe 5.0 x16 mode with Ryzen 9000/7000 processors. Integrated AMD Radeon Graphics output includes dual DisplayPorts supporting 3840x2160@144Hz and one HDMI 2.1 port supporting 4096x2160@60Hz with HDR, enabling triple-display configurations.

Connectivity and I/O

Two USB Type-C ports deliver USB 3.2 Gen 1 connectivity, with one on the rear panel and another via internal header. Additional USB options include four USB 3.2 Gen 1 ports and six USB 2.0 ports across rear panel and internal headers. Realtek GbE LAN provides reliable network connectivity, while Realtek Audio CODEC supports up to 7.1-channel audio output.

Enhanced BIOS and Software Features

Q-Flash Plus enables BIOS updates without CPU or memory installed. The UEFI BIOS interface offers multi-theme customization, AIO fan control, and auto-scan functionality. Gigabyte Control Center (GCC) provides centralized system management, while Smart Backup protects critical data. RGB lighting customization is available through addressable RGB Gen2 and standard RGB headers.

Technical Specifications

Measuring 24.4cm x 24.4cm, this Micro-ATX board fits compact builds while maintaining comprehensive features. The iTE I/O controller chip monitors voltages, temperatures, fan speeds, and water cooling flow rates with automatic warnings. Compatible with Windows 11 and Windows 10 64-bit operating systems.
